Yealink SIP-T41P Configuration Guide

Downloading Configuration Files
9

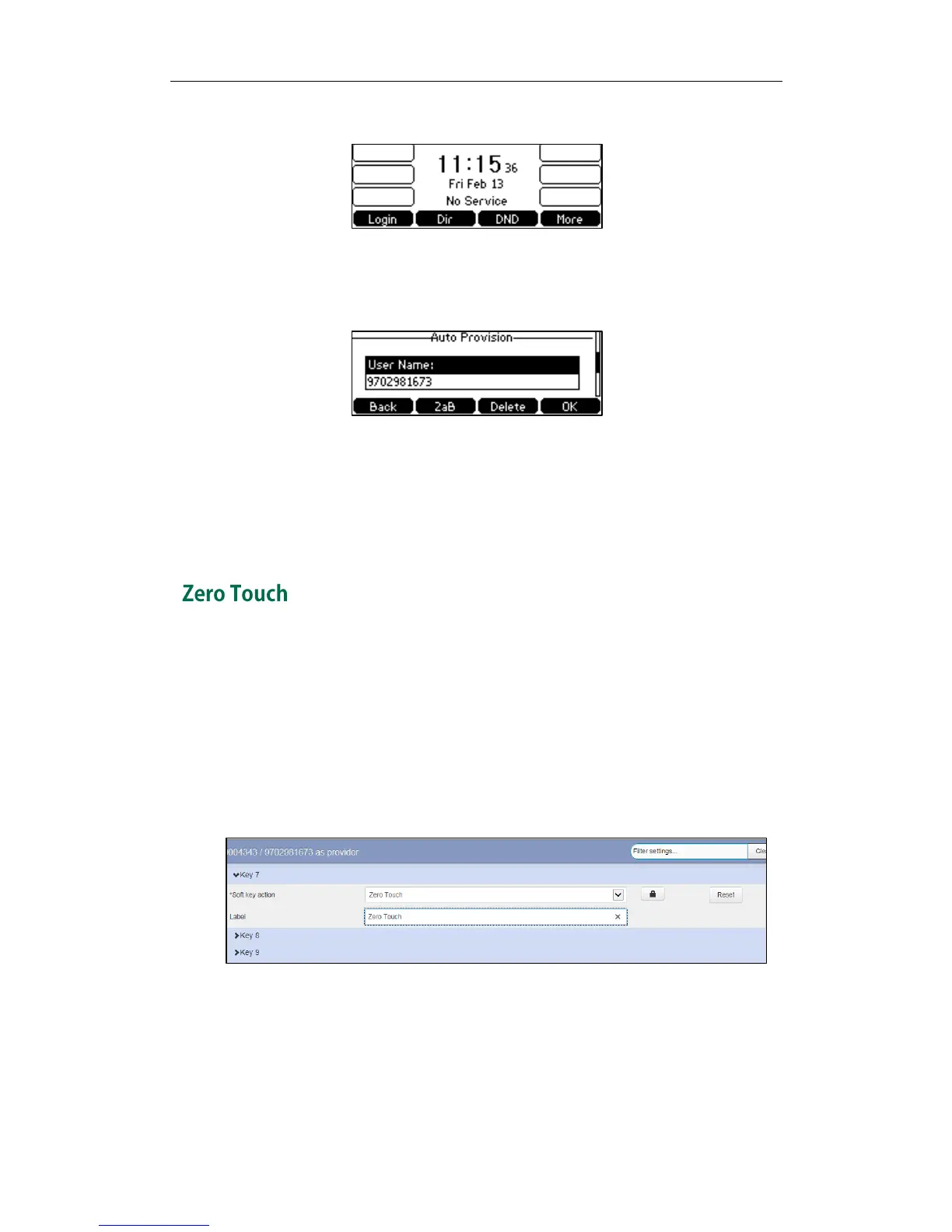

The LCD screen will be displayed as below:
5. Press the Login soft key to enter the Auto Provision screen.
6. Enter the user name (e.g., 9702981673) and account password in the User name
and Password field respectively.
7. Press the OK soft key.
The phone will reboot. During reboot, the phone will send the username and the
password to the server for authentication. If successful, the phone will complete
deployment after reboot. Then you can access the features you configured on the
CommPortal phone configurator via your phone.
If you change the parameter settings on the CommPortal phone configurator, you can
press the zero touch key (if configured) to quickly perform auto provisioning to apply the
changes to your phone.
To configure a zero touch key via CommPortal phone configurator:
1. Click on Programmable Keys - Line Key->Key X.
2. Select Zero Touch from the Soft key action field.
3. (Optional.) Enter the string that will appear on the LCD screen in the Label field.
4. Click Save changes to accept the change.
5. Perform auto provisioning on the phone to download above configurations. For
more information on how to perform auto provisioning, refer to Downloading
Configuration Files on page 7.

Yealink SIP-T41P Specifications

General

Power requirements	AC 100-240V, DC 5V
Power over Ethernet (PoE)	Yes
Touchscreen	-
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Voice codecs	G.711, G.723, G.726, G.729A, G.729B
Bluetooth	No
Ethernet LAN (RJ-45) ports	2
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
