Yealink SIP-T46G Guide

Customizing Your Phone
47

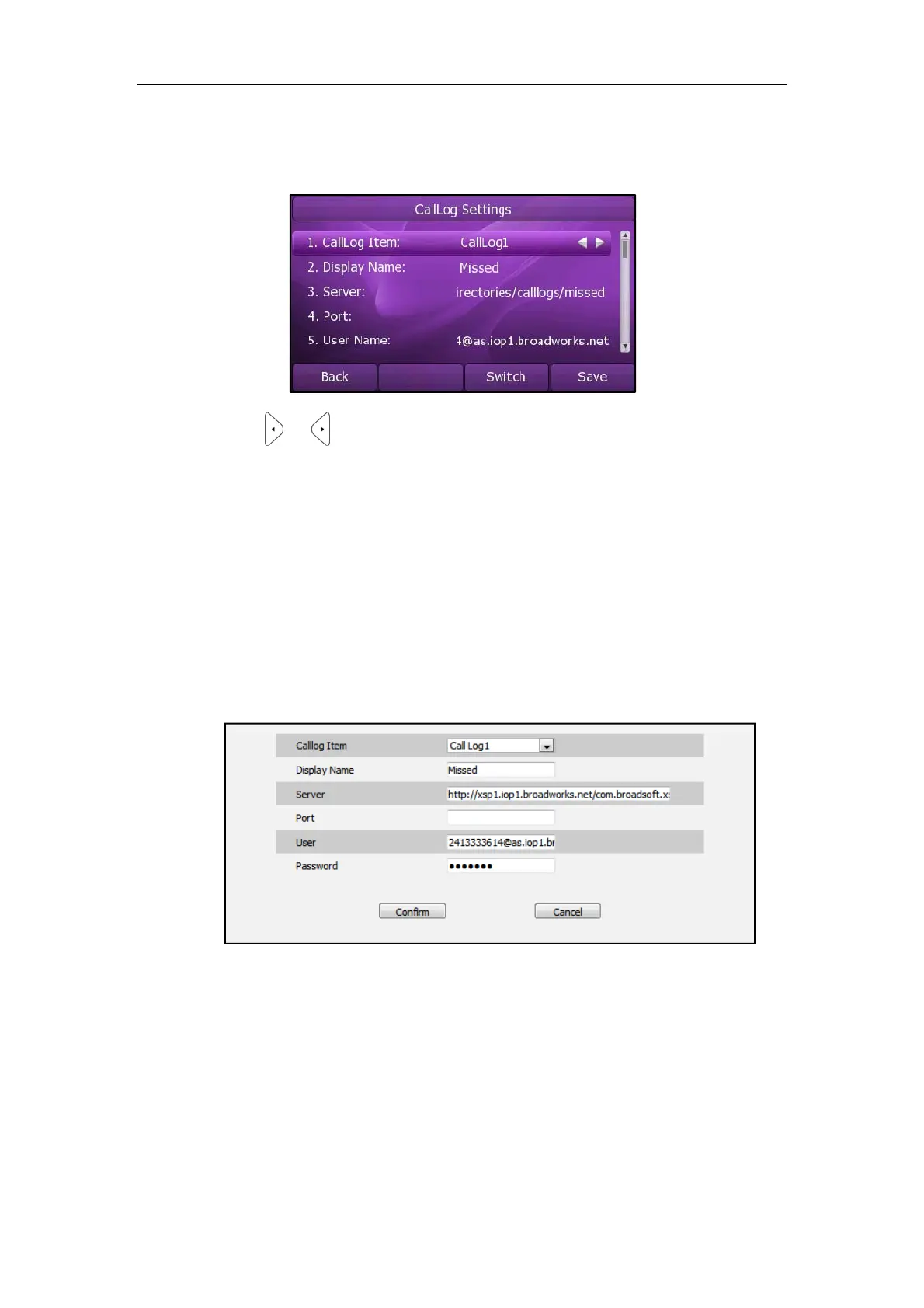

To configure the BroadSoft call log via phone user interface:
1. Press Menu->Features->BroadSoft Settings Menu->CallLog Settings.
2. Press or , or the Switch soft key to select the desired call log item from the
CallLog Item field.
3. Enter the parameters: display name, server address, port, username and password
in the corresponding fields.
4. Press the Save soft key to accept the change or the Back soft key to cancel.
To configure the BroadSoft call log via web user interface:
1. Click on Contacts->Call Log.
2. Select the desired call log item from the pull-down list of Calllog Item.
3. Enter the parameters: display name, server address, port, username and password
in the corresponding fields.
4. Click Confirm to accept the change.
To access the BroadSoft call log via phone user interface:
1. Press Menu->History->Network Call Log.
2. Select the desired call log menu, and then press the Enter soft key.

Yealink SIP-T46G Specifications

General

Backlight	Yes
Power requirements	100-240V, DC 5V
Touchscreen	-
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.711, G.722, G.723, G.726, G.729A, G.729B
Bluetooth	No
RJ-9 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	185 mm
Width	244 mm
Height	213 mm
