Yealink SIP-T46S User Manual

Advanced Phone Features
201
Bridged Line Appearance (BLA)
BLA allows users to share a SIP line on two or more IP phones. Users can monitor the specific
extension (BLA number) for status changes on each IP phone. To use this feature, a BLA group
should be pre-configured on the server and one of them is specified as a BLA number. BLA
depends on the support from a SIP server.

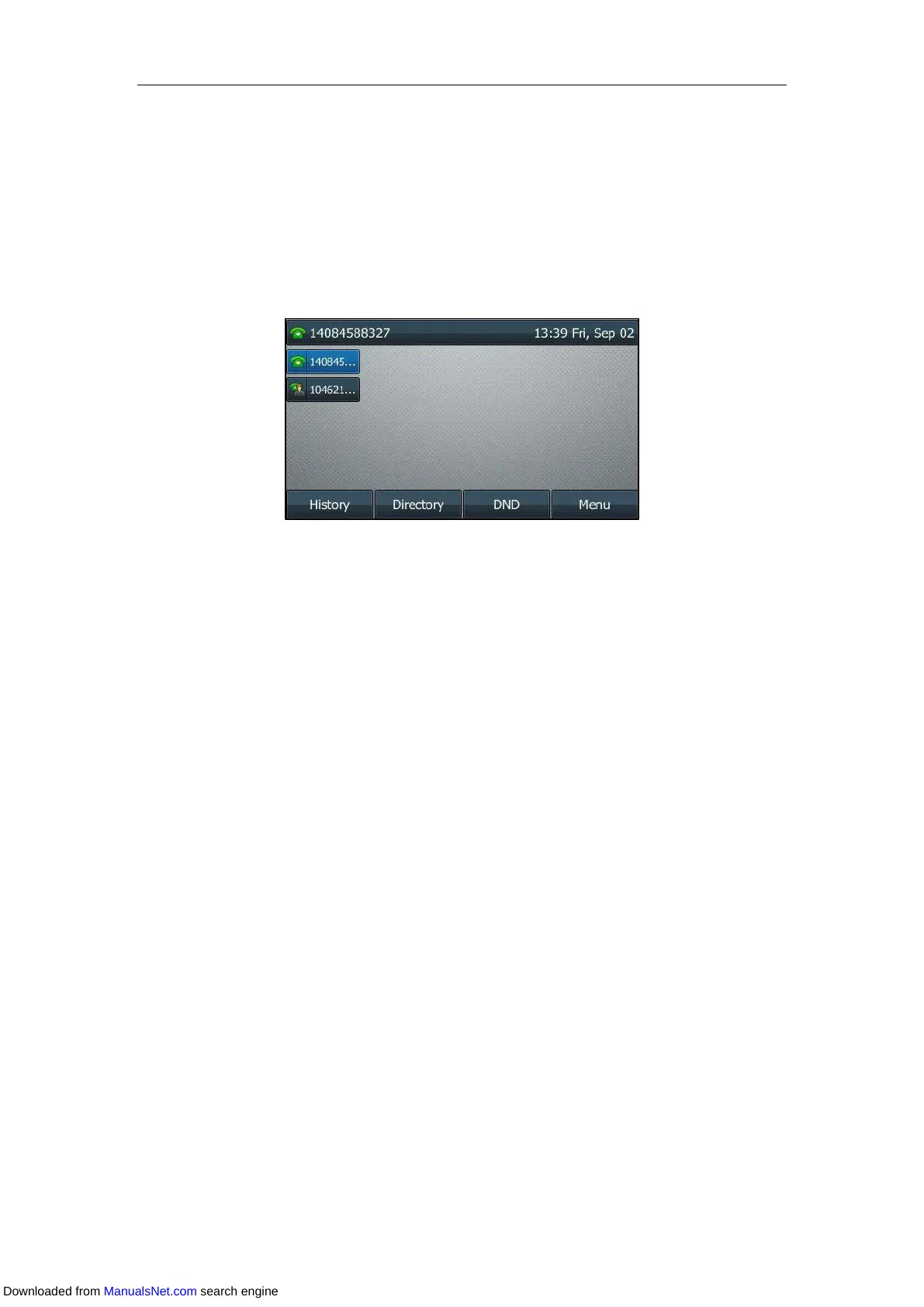

In the following figure, the first line is a private line while the second line is a shared line:
Any IP phone can be used to originate or receive calls on the bridged line. An incoming call to
the BLA number can be presented to multiple phones in the group simultaneously, but only one
IP phone within the group can answer this call.
Downloaded from ManualsNet.com search engine

Yealink SIP-T46S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	10
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
Package depth	255 mm
Package width	274 mm
Package height	128 mm
