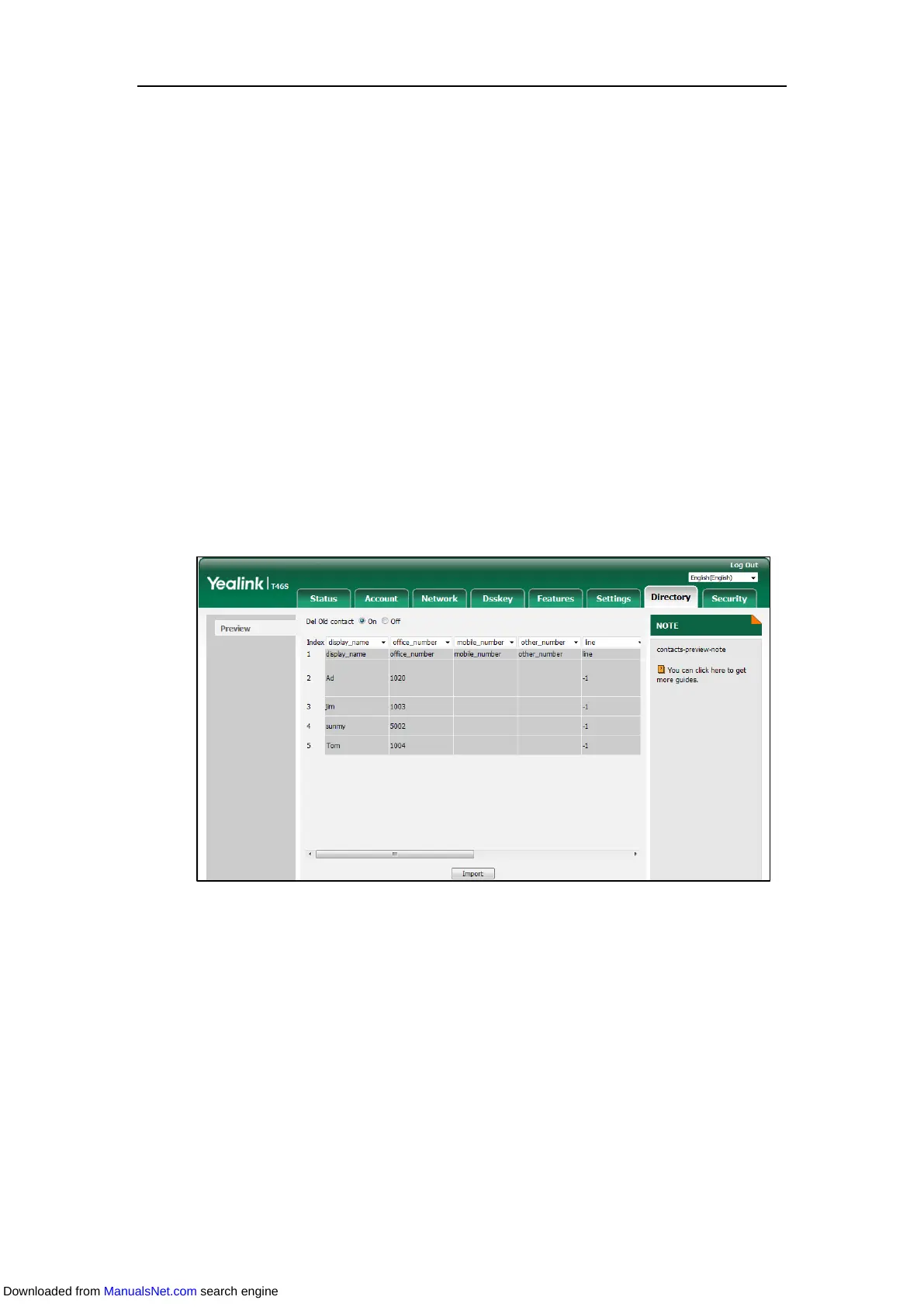

Customizing Your Phone
81
Importing a CSV Contact List File
Procedure:
1. Click Directory->Local Directory.
2. Click Browse to choose a contact list file (the file format must be *.csv) from your local
system.
3. (Optional.) Check the Show Title checkbox.
It will prevent importing the title of the contact information which is located in the first line
of the CSV file.
4. Click Import CSV to import the contact list.
5. (Optional.) Mark the On radio box in the Del Old Contacts field.
It will delete all existing contacts while importing the contact list.
6. Select the contact information you want to import into the local directory from the Index
field.
At least one item should be selected to be imported into the local directory.
7. Click Import.
Exporting an XML/CSV Contact List
Procedure:
1. Click Directory->Local Directory.
2. Click Export XML (or Export CSV).
3. Click Save to save the contact list to your local system.
Downloaded from ManualsNet.com search engine

Table of Contents

Other manuals for Yealink SIP-T46S

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yealink SIP-T46S and is the answer not in the manual?

Yealink SIP-T46S Specifications

General IconGeneral
ManualYes
Cables includedLAN (RJ-45)
Number of handles included1 pc(s)
MountingDesk/Wall
Handset typeWired handset
Product typeIP Phone
Product colorBlack
Voice codecsCNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity16 lines
Phonebook capacity1000 entries
Number of VoIP accounts16
Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)10 - 95 %
Display diagonal4.3 \
Display resolution480 x 272 pixels
AC adapter input voltage100 - 240 V
AC adapter output current2 A
AC adapter output voltage5 V
Dual-Tone Multi-Frequency (DTMF) modesIn-band, Out-of band, SIP info
Volume controlDigital
Number of programmable keys10
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Networking standardsIEEE 802.3af
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Supported network protocolsSIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Harmonized System (HS) code85171800
Weight and Dimensions IconWeight and Dimensions
Depth213 mm
Width244 mm
Height185 mm
Package depth255 mm
Package width274 mm
Package height128 mm
