Yealink T27P Administrator's Guide

Administrator’s Guide for SIP-T2_Series_T4_Series IP Phones
158
2. Click Browse to locate a contact list file (the file format must be *.xml) from your
local system.
3. Click Import XML to import the contact list.
The web user interface prompts "The original contact will be covered, Continue?".
4. Click OK to complete importing the contact list.

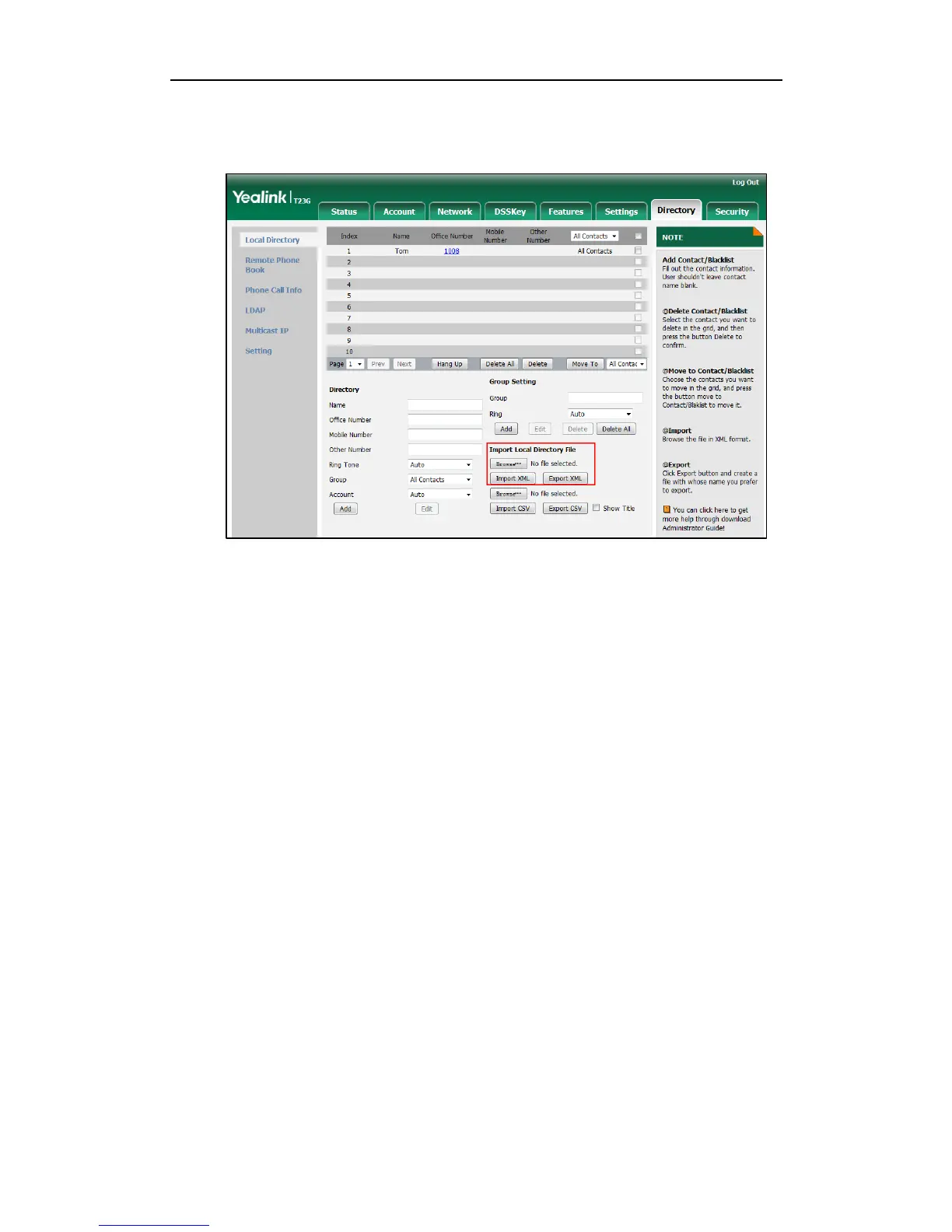

To import a CSV contact list file via web user interface:
1. Click on Directory->Local Directory.
2. Click Browse to locate a contact list file (the file format must be *.csv) from your
local system.
3. (Optional.) Check the Show Title checkbox.
It will prevent importing the title of the contact information which is located in the
first line of the CSV file.
4. Click Import CSV to import the contact list.
5. (Optional.) Mark the On radio box in the Delete Old Contacts field.
It will delete all existing contacts while importing the contact list.
6. Select the contact information you want to import into the local directory from the
pull down list of Index.

Yealink T27P Specifications

General

Wall Mountable	Yes
Local Phonebook	1000 entries
Bluetooth	No
Wi-Fi	No
Gigabit Ethernet	No
Display	3.66" 240x120 pixel graphical LCD with backlight
Audio Features	HD voice, Full-duplex speakerphone
Network	Dual-port 10/100 Ethernet switch
Protocols	SIP v1 (RFC2543), v2 (RFC3261)
Power	IEEE 802.3af PoE
Connectivity	2 x RJ45 10/100M Ethernet ports
Voice Codecs	G.711(A/μ), G.722, G.723, G.729AB, G.726
EHS	Supports EHS with Plantronics headsets
Headset Port	Yes
Power Adapter	5V DC (optional)
