Yeastar Technology NeoGate TE100 User Manual

NeoGate TE100 Administrator Guide
www.yeastar.com Page 11
5. System
Click to access. In this page, we can configure the network settings, firewall rules
and some system preferences.
5.1 Network Preferences
5.1.1 LAN Settings

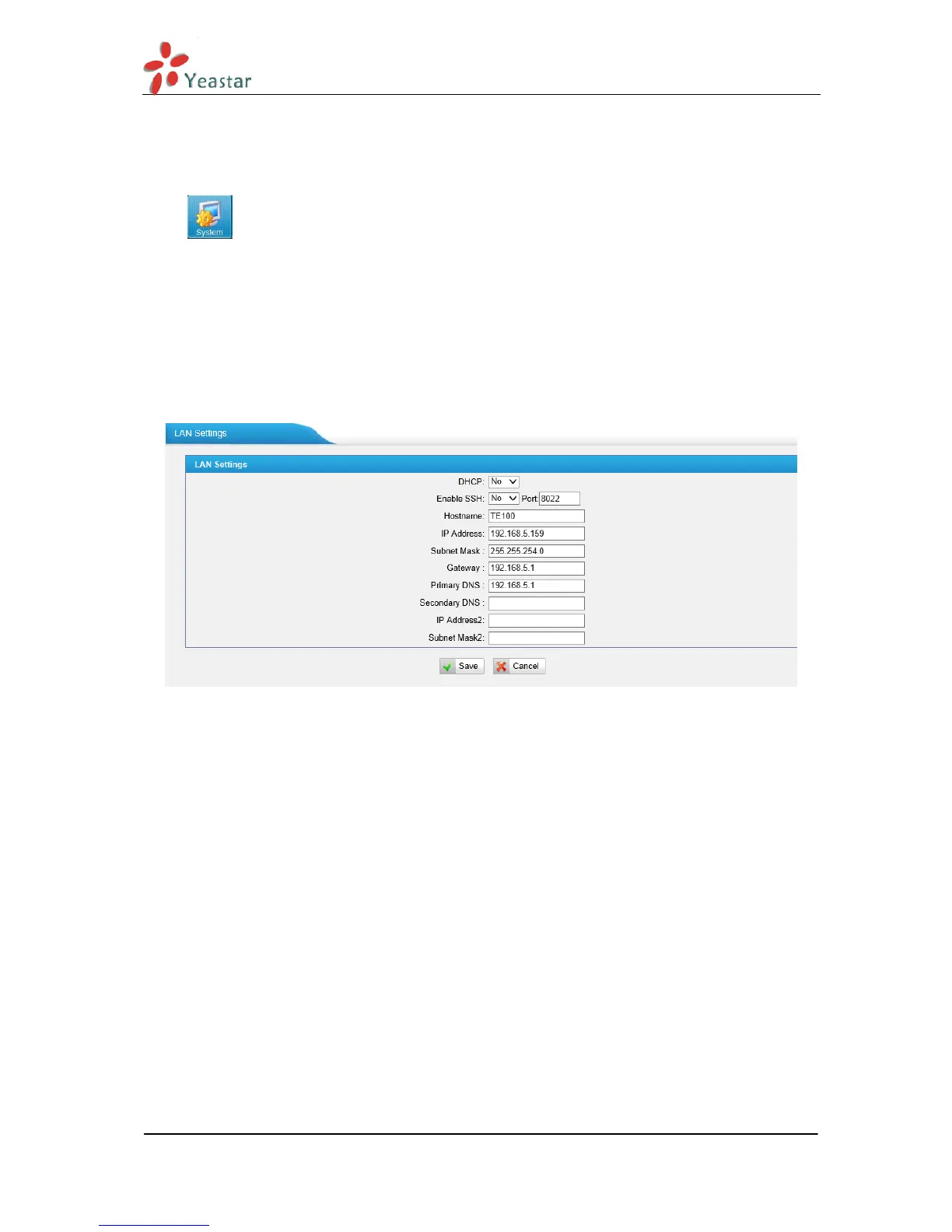

Figure 5-1
·DHCP
If this option is set as yes, TE100 will act as DHCP client to get an available IP
address from your local network. Not recommended or you cannot access TE100
without the right IP address.
·Enable SSH
This is the advance way to access the device, you can use the putty software to
access the device. In the SSH access, you can do more advance setting and debug.
It‟s disabled by default.
·Port: the default is 8022; you can change it to another one
·Hostname
Set the host name for TE100.
·IP Address
Set the IP Address for TE100.
It is recommended to configure a static IP address for TE100
