NeoGate User Manual
www.yeastar.com 11
3.3.1.1 SIP Account
It is an SIP Account that allows an IP Phone, IP Soft- Phone client, IPPBX and
soft switch to register on NeoGate.
·Extension
The numbered extension, i.e. 1234, that will be associated with this particular
User / Phone.
·Password
The password for this extension, Ex: ‘12t3f6’.

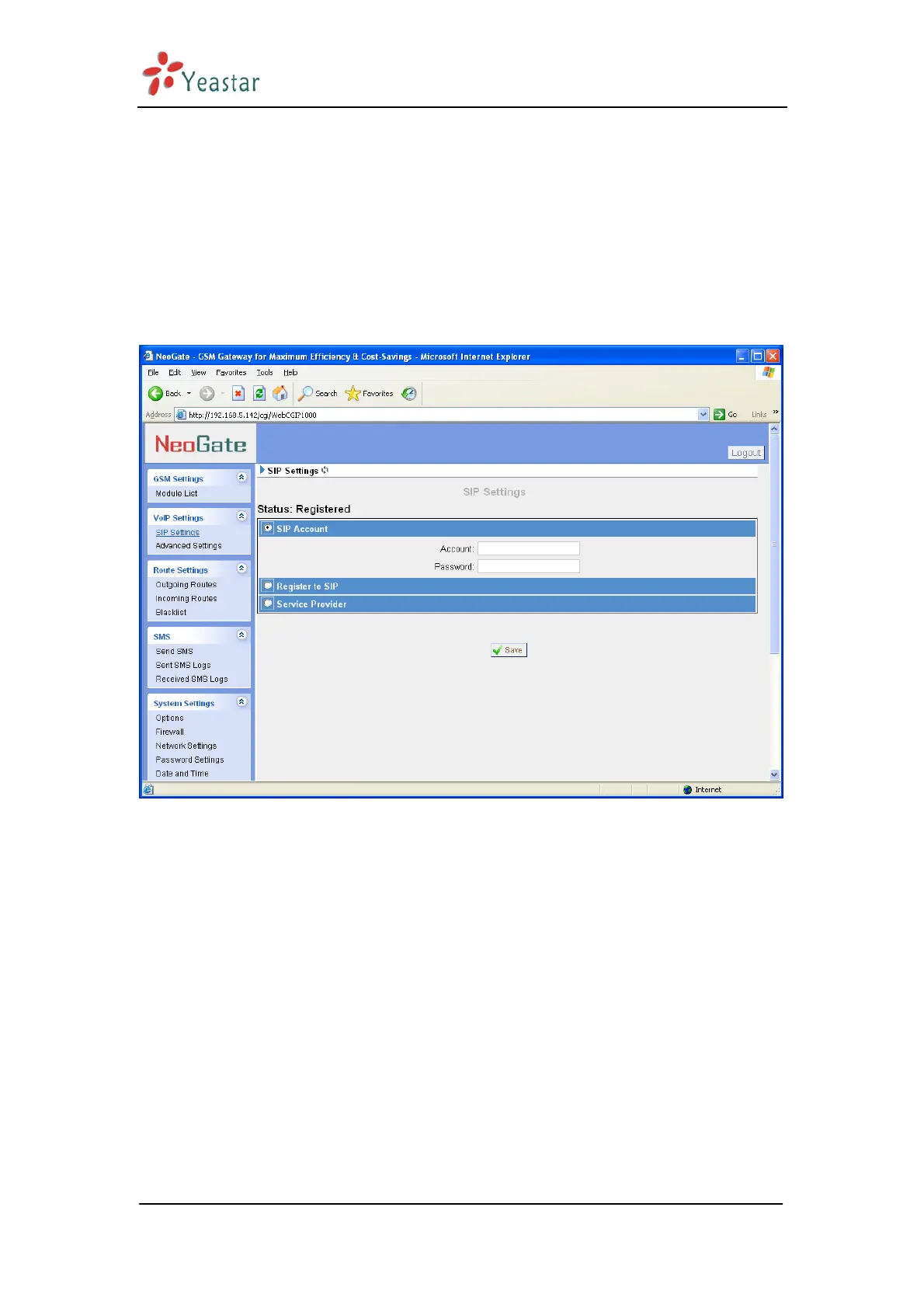

Figure 3-5
3.3.1.2 Register to SIP
‘Register to SIP’, It use to register to SIP Server or SIP Proxy.
·Hostname/IP
Service provider’s hostname or IP address.5060 is the standard port number
used by SIP protocol. Don’t change this part if it is not required.
.Domain
VoIP provider’s server domain name.
.From User
All outgoing calls from this SIP Trunk will use the From User (In this case the
account name for SIP Registration) in From Header of the SIP Invite.
·Username
