- 10 -
10.
Clutch Spring, Clutch Boss
Pa
r
t
s
L
i
s
t
The clutch spring has a 10% bette
r load capacity than the standa
rd one.
No
.
P
AR
T No
.
P
ART NAME
Q’TY
REMARKS
1
5VY
-16334-70
SPRING,
CLUTCH
6
2
5VY
-1637
1-70
BOSS, CLUTCH
1
INST
ALL WITH THE MA
CHINED
SIDE DOWN.
13
15
Table of Contents
Default Chapter
3
Table of Contents
3
Standard Specifications
5
Kit Parts
6
Basic Kit Set Contents
6
Engine Parts
6
Maintenance Set (5VY-MAINT-70)
6
Spark Plugs
7
AIS Plug Set (5VY-A4890-70)
7
Gaskets
8
High-Lift Camshaft, Valve Spring
9
Standard-Lift Camshafts
10
Flat Valve Set (5VY-A2100-70)
11
Sub-Radiator Set (5VY-A240A-70)
12

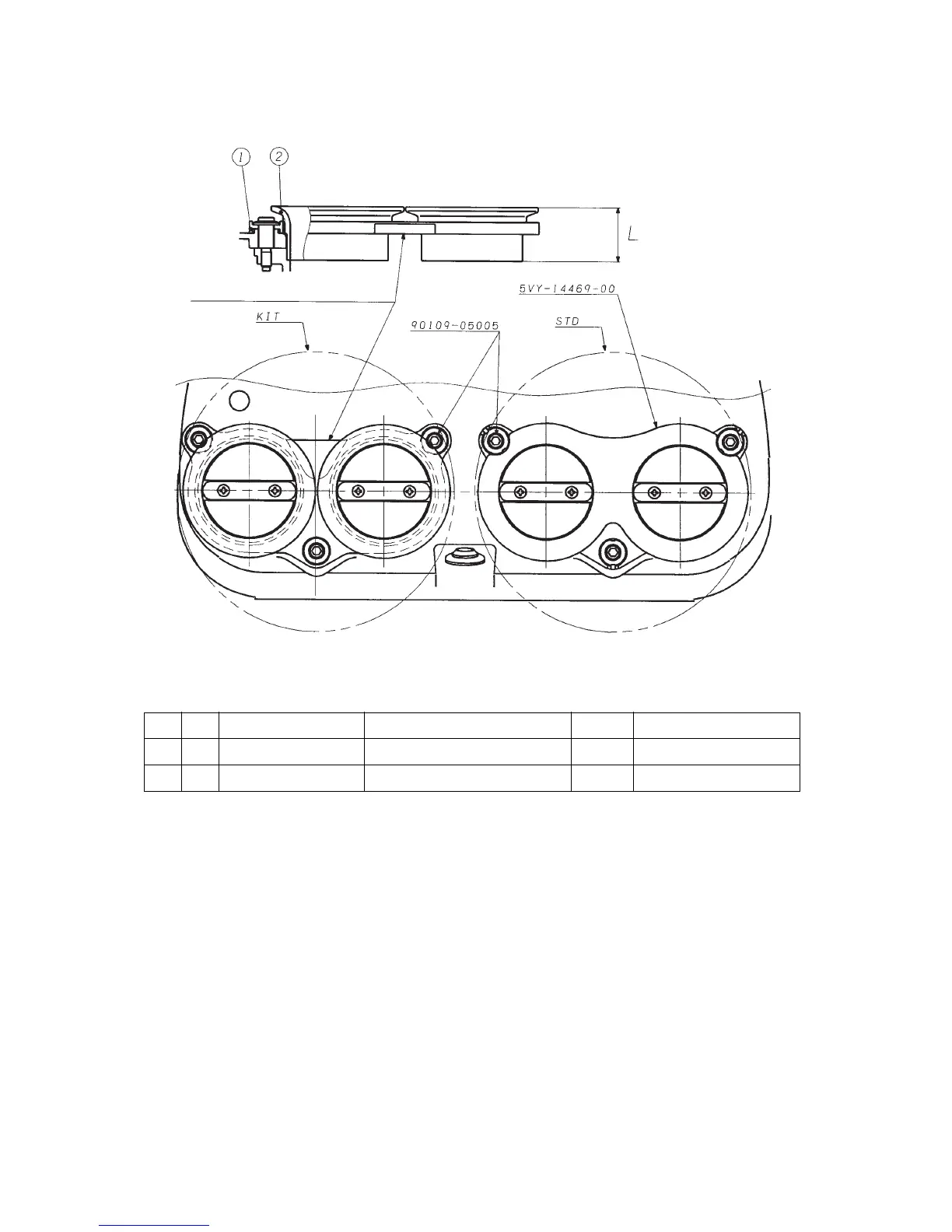

Funnel Set (5VY-A4460-70)
