- 51 -

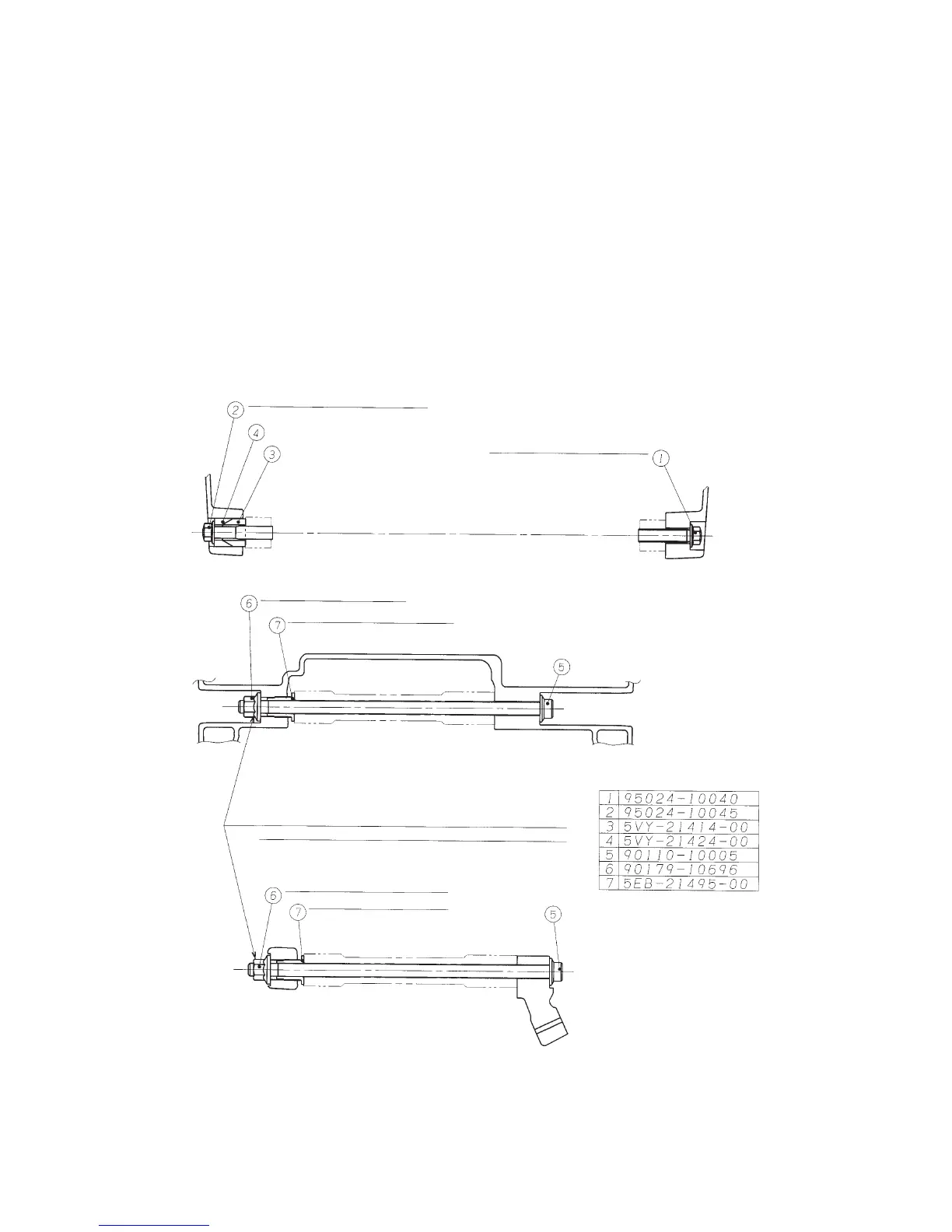

3-9 Engine mounting
1. Temporarily fit g BOLT, ENG. ADJ. to the frame.
2. Place the engine on the mounting location of the frame and temporarily fit e BOLT.
3.
Temporarily fit
cd
BOSS, ENG. MOUNT on the frame and temporarily fit
ab
BOLT.
4. Tighten g BOLT, ENG. ADJ. to the specified torque.
Check that the engine and the seating surface of g are in contact with one another.
5. Tighten f NUT on the crankcase bottom to the specified torque. Then tighten the
f NUT on the crankcase top to the specified torque.
6. Tighten the a BOLT to the specified torque.
7. Tighten the b BOLT to the specified torque.
Tightening torque of 45 Nm
Tightening torque of 45 Nm
Cylinder head as suspended
Tightening torque of 50 Nm
Tightening torque of 7.0 Nm
Apply grease or engine oil to the thread before tightening
and ensure tightening on the side of the nut.
Tightening torque of 50 Nm
Tightening torque of 7.0 Nm
Lower side of crankcase
Upper side of crankcase
