21. Rear Arm Attachment Set, Rear Wheel Attachment Set

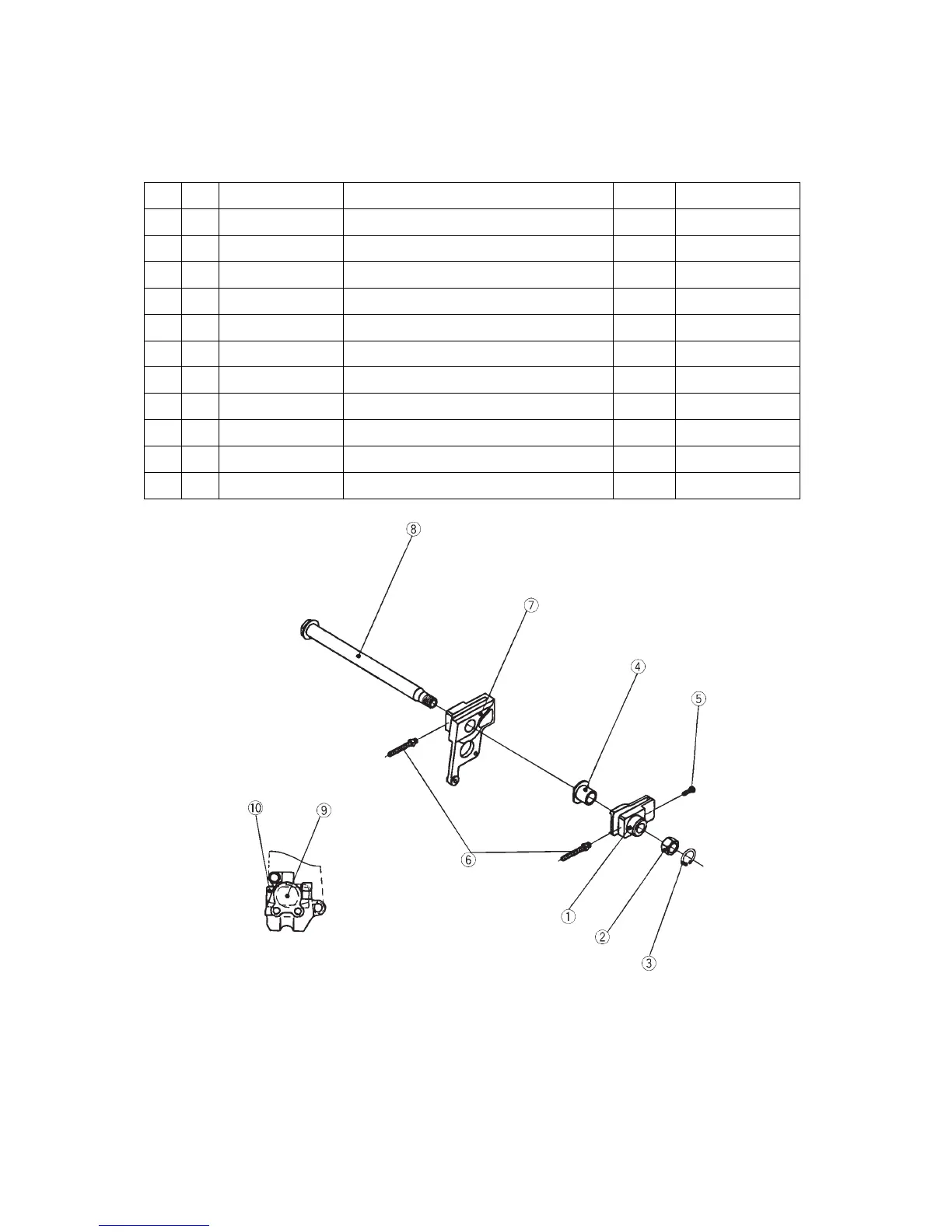

Rear Arm Attachment Set (5VY-C2170-70)
Parts List
The rear arm attachment set includes a rear wheel fixing assembly to cover one
wheel.
No special rear sprocket is included in the rear arm fixing assembly or in the rear
wheel fixing assembly.
No. PART No. PART NAME Q’TY REMARKS
1 5VY-25388-70 PULLER 1 1
2 95317-20700 NUT 1
* 3 99009-32500 CIRCLIP 1
4 4FN-25322-70 INSERT, SHAFT 1
* 5 90110-06142 BOLT 1
6 4XV-25379-70 BOLT, PULLER 2
7 5VY-25389-70-0 PULLER 2 1
8 4XV-25381-70 AXLE, WHEEL Rr. 1
9 4XV-2580W-70 CALIPER ASSY. 1
10 4XV-25911-70 PAD LINNING COMP. 2
11 4XV-25379-70 BOLT, CHAIN PULLER 2
