1.3 Panel Keys and Knobs

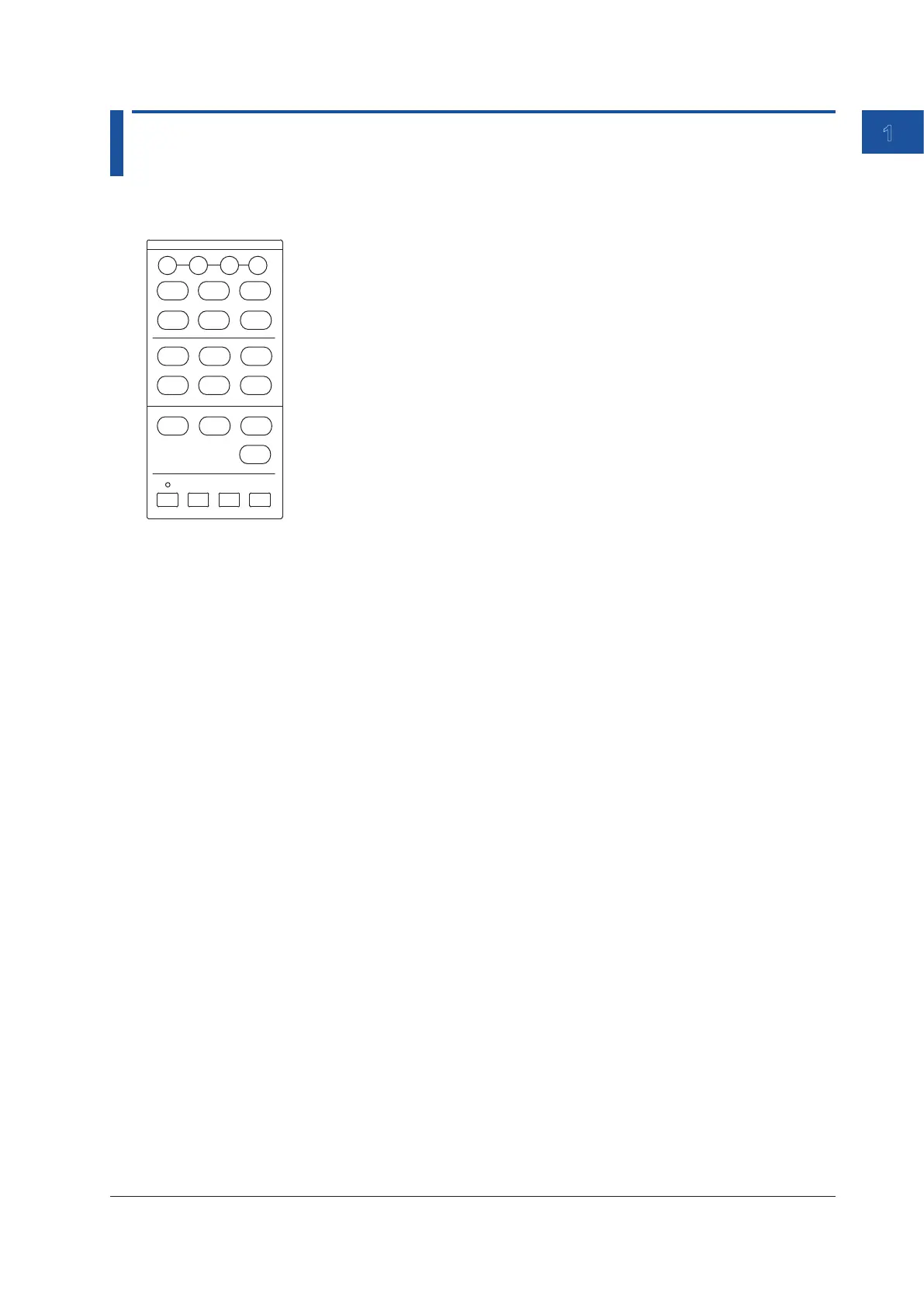

FUNCTION Section
The FUNCTION section contains 16 function keys and 8 auxiliary keys. When
you press a function key, information about the function is displayed on the soft
key menu located on the right side of the LCD display.
AUTO
Executes auto sweep
REPEAT
Executes repeat sweep
SINGLE
Executes single sweep
STOP
Stops sweeping
CENTER
The CENTER key contains functions related to setting the center wavelength
and center frequency for measurements. The soft key functions change
depending on whether the screen display mode is wavelength display mode or
frequency display mode.
SPAN
The SPAN key contains functions pertaining to settings for the wavelength span
or frequency span being measured. The soft key functions change according
to whether the screen display mode is wavelength display mode or frequency
display mode.
LEVEL
The LEVEL key contains functions related to level axis settings.When you press
the LEVEL key, the soft key menu for setting reference level appears.
SWEEP
The SWEEP key contains functions related to sweeping. When you press the
SWEEP key, the soft key menu for sweeping appears.
RESOLN
The RESOLN key contains functions related to wavelength resolution settings.
When you press the RESOLN key, the soft key menu for resolution appears.
SENS
The SENS key contains functions related to sensitivity settings. When you
press the SENS key, the soft key menu for sensitivity appears.
SETUP
The SETUP key contains functions related to measurement condition settings.
FUNCTION
SWEEP
CENTER
RESOLN
SENS
LEVEL
SETUP
MARKER
ZOOM
PEAK
SEARCH
TRACE
ANALYSIS
USER
FILE
APP
REMOTE
UNDO/
LOCAL
HELP
PRESET
PRT
SCN
SYSTEM
AUTO
REPEAT SINGLE
STOP
SPAN
