3-8
IM AQ6370E-02EN
3.2 Attaching the Connector Adapter
Attachment Procedure
1.
Confirm that the power is OFF.
2.
Open the optical connector cover at the front of the instrument.
3.
Clean the ferrule edge of the optical input section using a swab soaked with a small amount of
pure alcohol.
4.
Insert the connector adapter all the way in.
5.
Push the connector adapter’s lock lever down.
The adapter has been attached correctly if the groove in the lock lever interlocks with the latch
pin of the optical input/output section.
Explanation

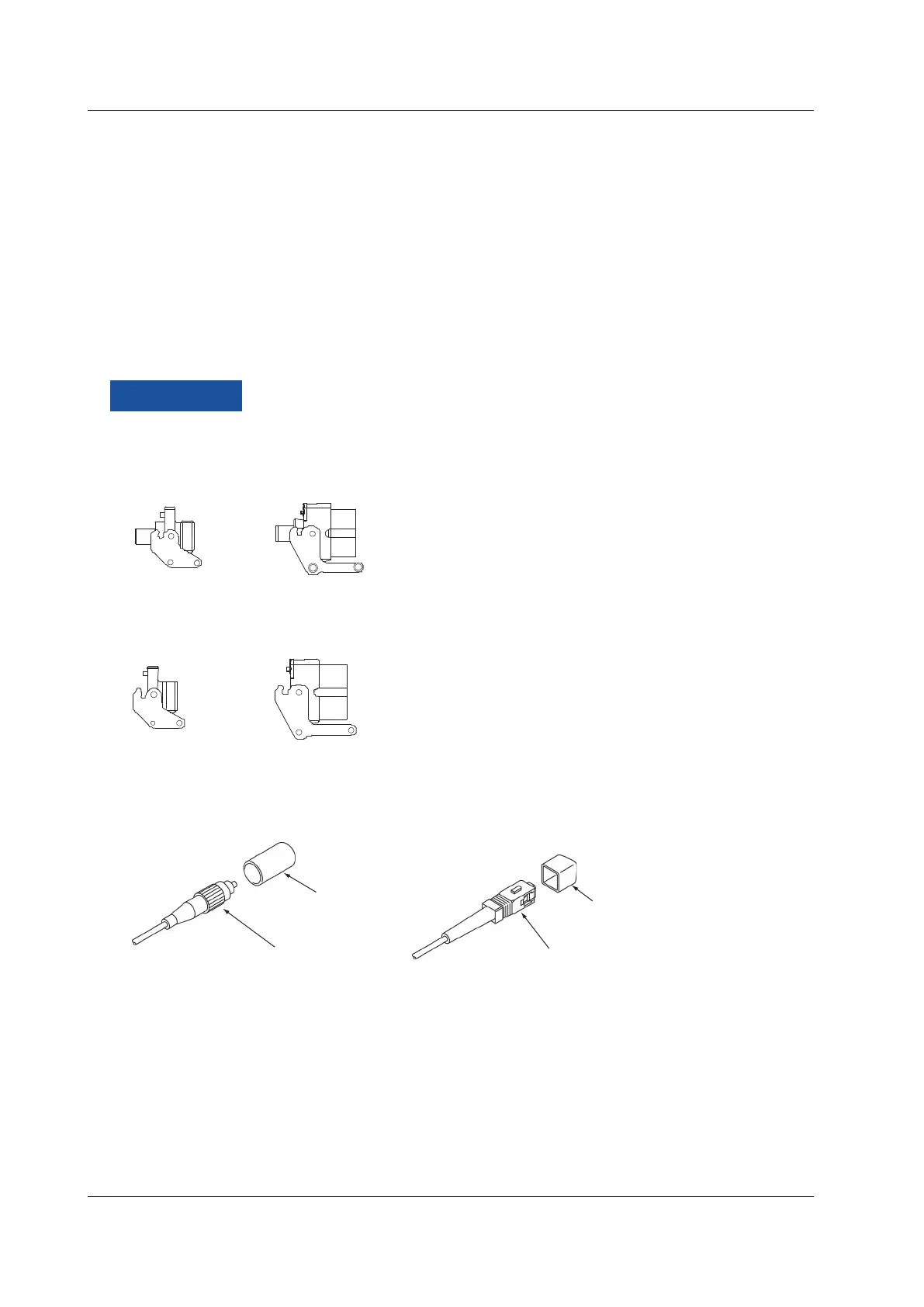

Types of Connector Adapter
The connector adapter for internal reference light output (AQ9441) comes in the following two
types.
FC type SC type
The optical input connector adapter (AQ9447) comes in the following two types.
SC typeFC type
Optical Connectors Types
The instrument can use FC, or SC type optical connectors.
FC type optical
connector
Cap
SC type optical
connector
Cap
To Next Page
