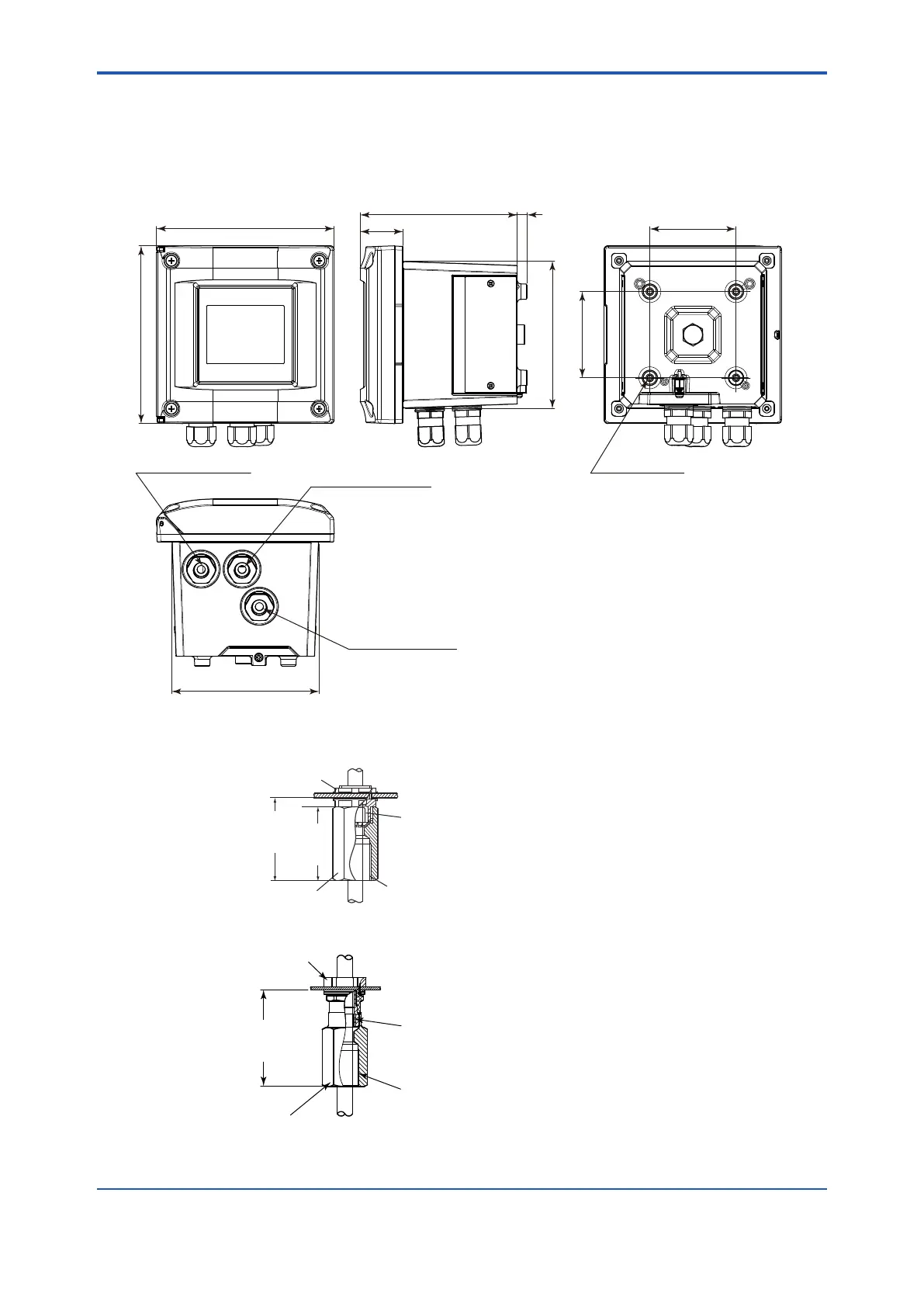

n FLXA202 Dimensions and Mounting
165
137
80
165
146 9
80
137
4-M6 depth 7
For power supply
For sensor 2 cable
For sensor 1 cable
FB4_01.ai
Unit: mm
40
Conduit Adapter (Option code: /CB4, /CD4, /CF4)
Adapter
49
(1.93")
G1/2 screw (/CB4), 1/2 NPT screw (/CD4)
M20x1.5 screw (/CF4)
Approx.
55(2.2")
Packing
Unit: mm(inch)
Nut
F0204.ai
Conduit Adapter (Option code: /CB5, /CD5, /CF5)
Adapter
G1/2 screw (/CB5), 1/2 NPT screw (/CD5)
M20x1.5 screw (/CF4)
Approx.
64(2.52")
Packing
Unit: mm(inch)
Nut
Conduit_Adapter_02.ai
