2-4 IM 04L20A01-01E

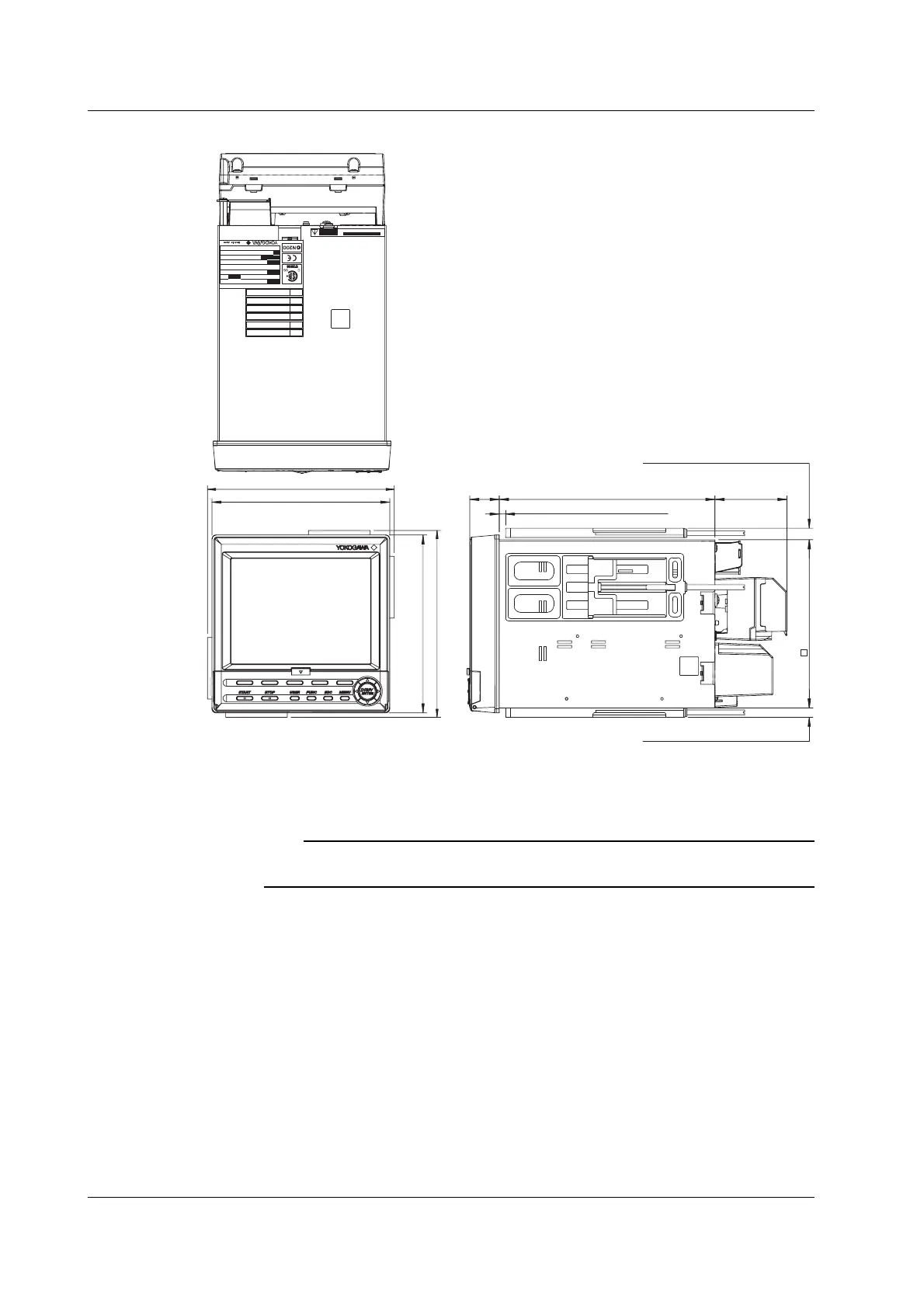

External Dimensions of the FX100
144 (5.67)
151.5 (5.96)
23.4
(0.92)
175 (6.89)
7.5 (0.30)
58.4
(2.30)
136.5 (5.37)
144 (5.67)
151.5 (5.96)
9.4 (0.37)
Thickness of the attachment panel
2 to 26
(Dimensions before the mounting
bracket is attached)
(Dimensions after the mounting
bracket is attached)
Unit: mm (approx. inches)
NO.
STYLE
MODEL
TAG NO.
TAG NO.
TAG NO.
TAG NO.
TAG NO.
TAG NO.
SUFFIX
SUPPLY
FREQUENCY
10Base-T
RS-422A/485
FG SG
SDB SDA RDB RDA
The dimensional tolerance is ±3% unless otherwise specified (However, the tolerance for
dimensions less than 10 mm is ±0.3 mm).
Note
For FX100s which are side-by-side mounted vertically, when a front panel is opened the
down arrow key may interfere the upper front panel.
2.2 Installation
