3. Cabling
3-9
TI 32P01J10-01EN

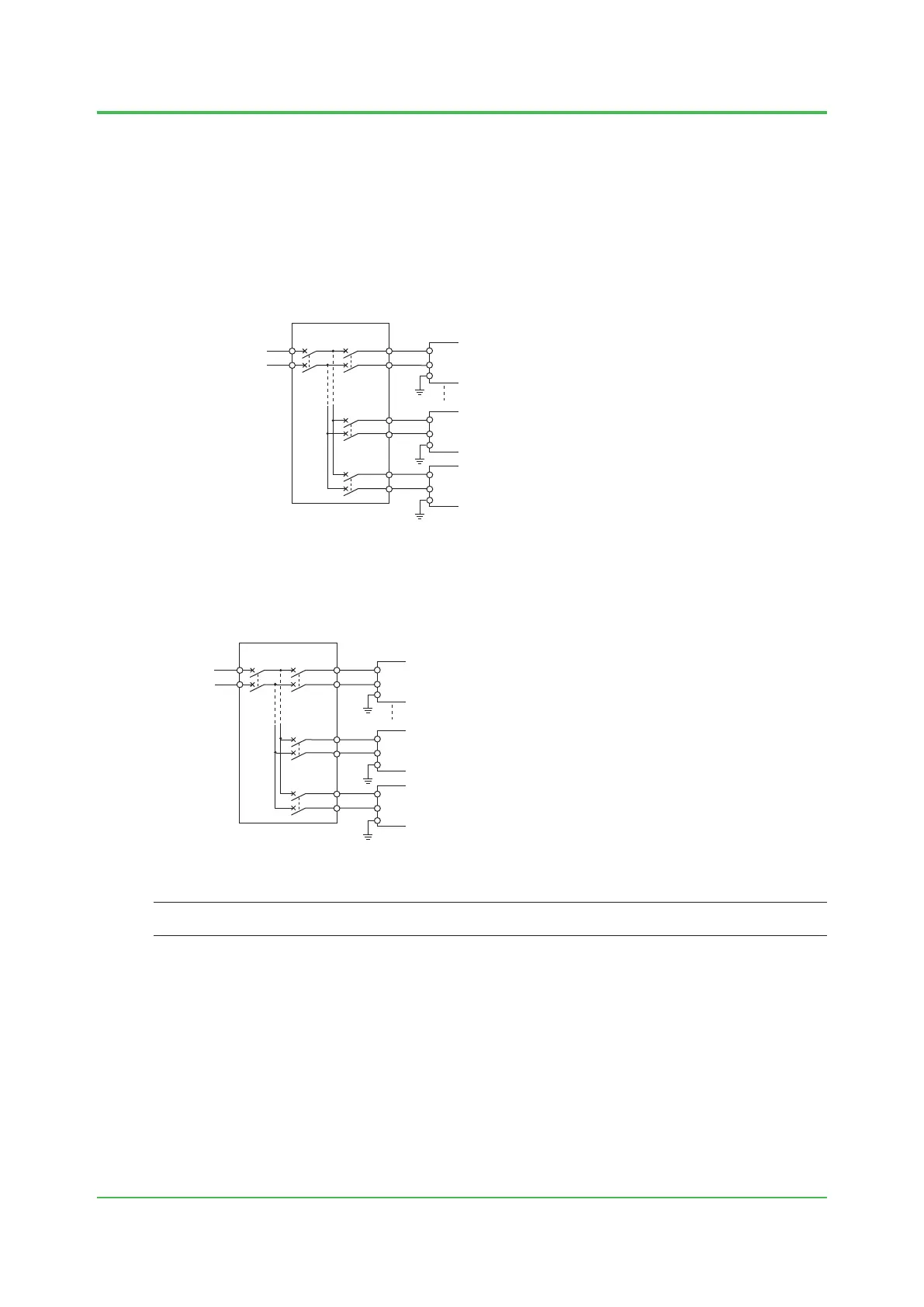

 Power Distribution Boards
Power distribution boards are normally provided by the customer. Figures show examples of AC
and DC power distribution boards.
AC Power Distribution Board
The power cables is branched to each unit by way of a circuit breaker.
Each power system uses three terminals (AC and ground: ISO M4 to M6 screws).
F030206.ai
Unit
Unit
Unit
Power distribution board
100-120 V AC or
220-240 V AC
Figure AC Power Distribution Board
24 V DC Power Distribution Board
F030207.ai
Unit
Unit
Unit
Power distribution board
24 V DC
Figure 24 V DC Power Distribution Board
SEE
ALSO
For equipment grounding, see Section 3.4, “Power and Ground Cabling.”
Nov. 27, 2015-00
