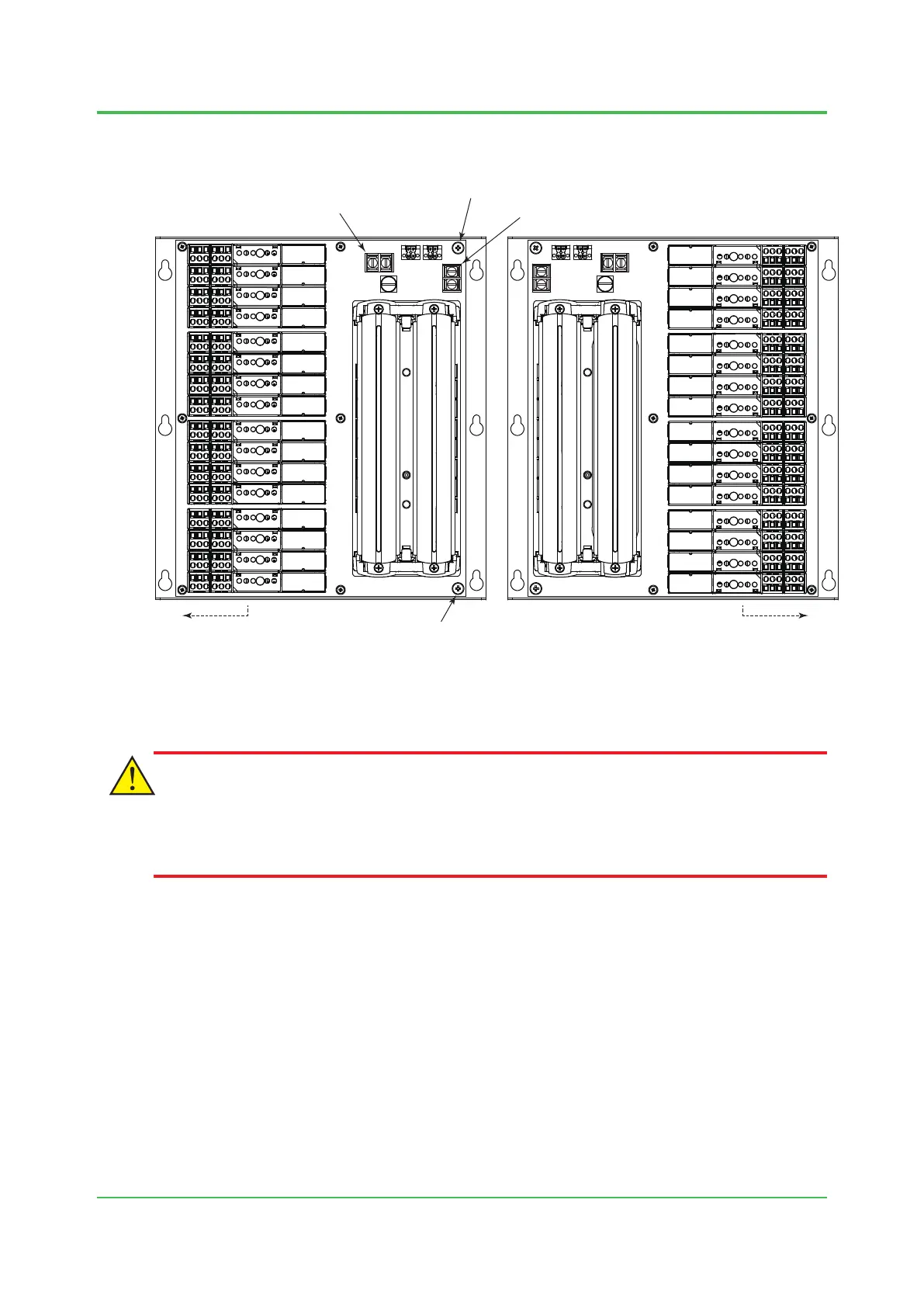

S2BN4D Base Plate for Barrier (MTL)
F030403.ai
S2BN4D-12C0
S2BN4D-12D0
-
TM1 TM1
TM2TM2
BUS 1
BUS 2
BUS 1
BUS 2
BARRIER
PWR
+
SYS
PWR
-
SYS
PWR
++
-
-
BARRIER
PWR
+
Barrier power supply input
terminal
System power supply input terminal
Grounding terminal
(screw: M4)
Particularly specified tightening torque 0.8 to 1.0 (N∙m)
Grounding terminal
(screw: M4)
Particularly specified tightening torque 0.8 to 1.0 (N∙m)
Intrinsic safety side Intrinsic safety side
CAUTION
For preventing over current from the power supply caused by device malfunction, please install
over current protection devices such as fuses and breakers in the previous position of the
devices.
