3. Cabling
3-22
TI 32P01J10-01EN

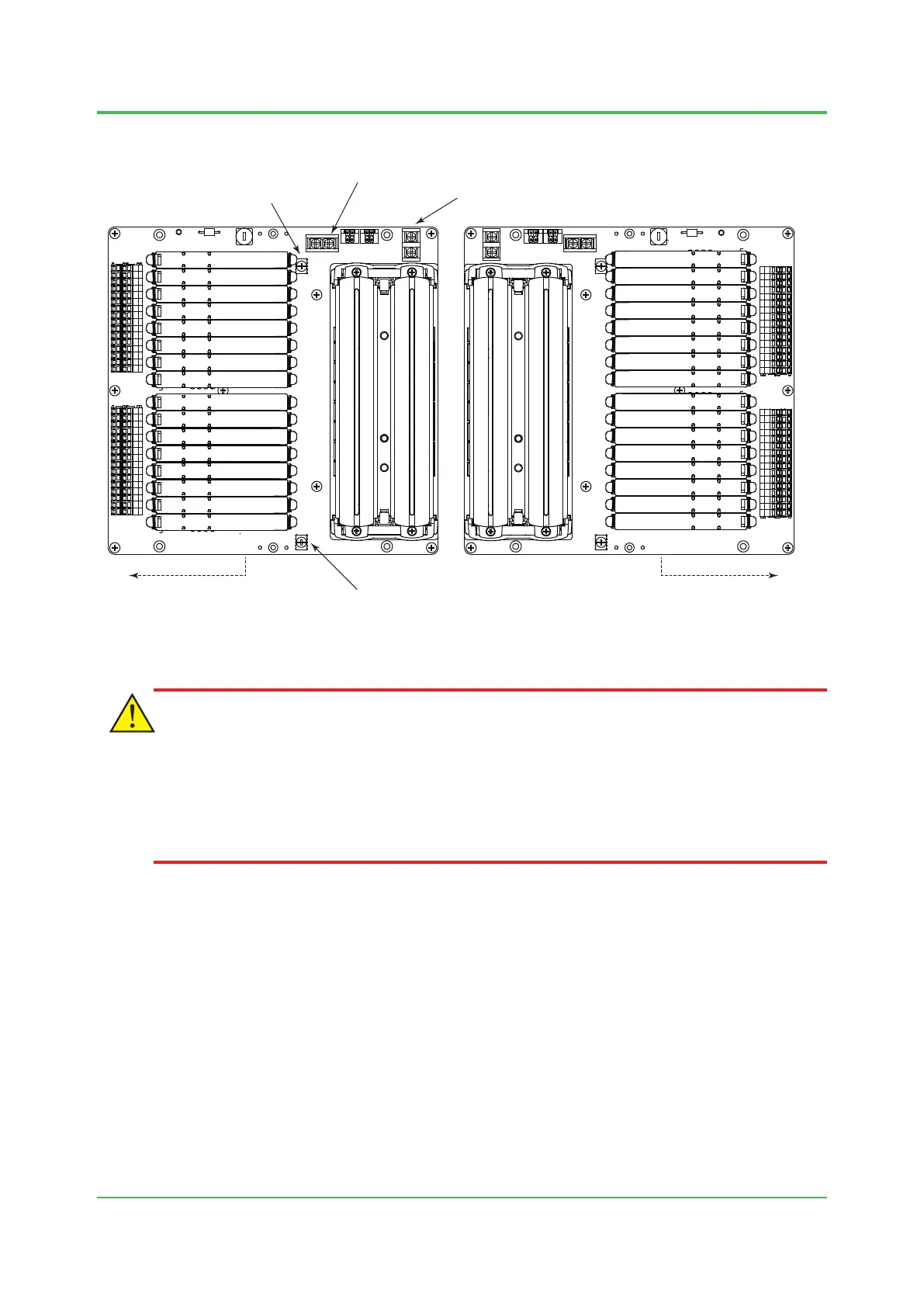

S2BN5D Base Plate for Barrier (P+F)
F030404.ai
S2BN5D-121C0 S2BN5D-121D0
Intrinsic safety side Intrinsic safety side
Barrier power supply input
terminal
(screw: M4)
System power supply input terminal
Grounding
terminal
(screw: M4)
Grounding
terminal
(screw: M4)
CAUTION
· For preventing over current from the power supply caused by device malfunction, please
install over current protection devices such as fuses and breakers in the previous position of
the devices.
· To avoid the inuences of external noise, the cable length outside the cabinet connected to
Barrier power supply input connector shall be less than 3 m.
Oct. 25, 2016-00
To Next Page
