3. Cabling
3-23
TI 32P01J10-01EN

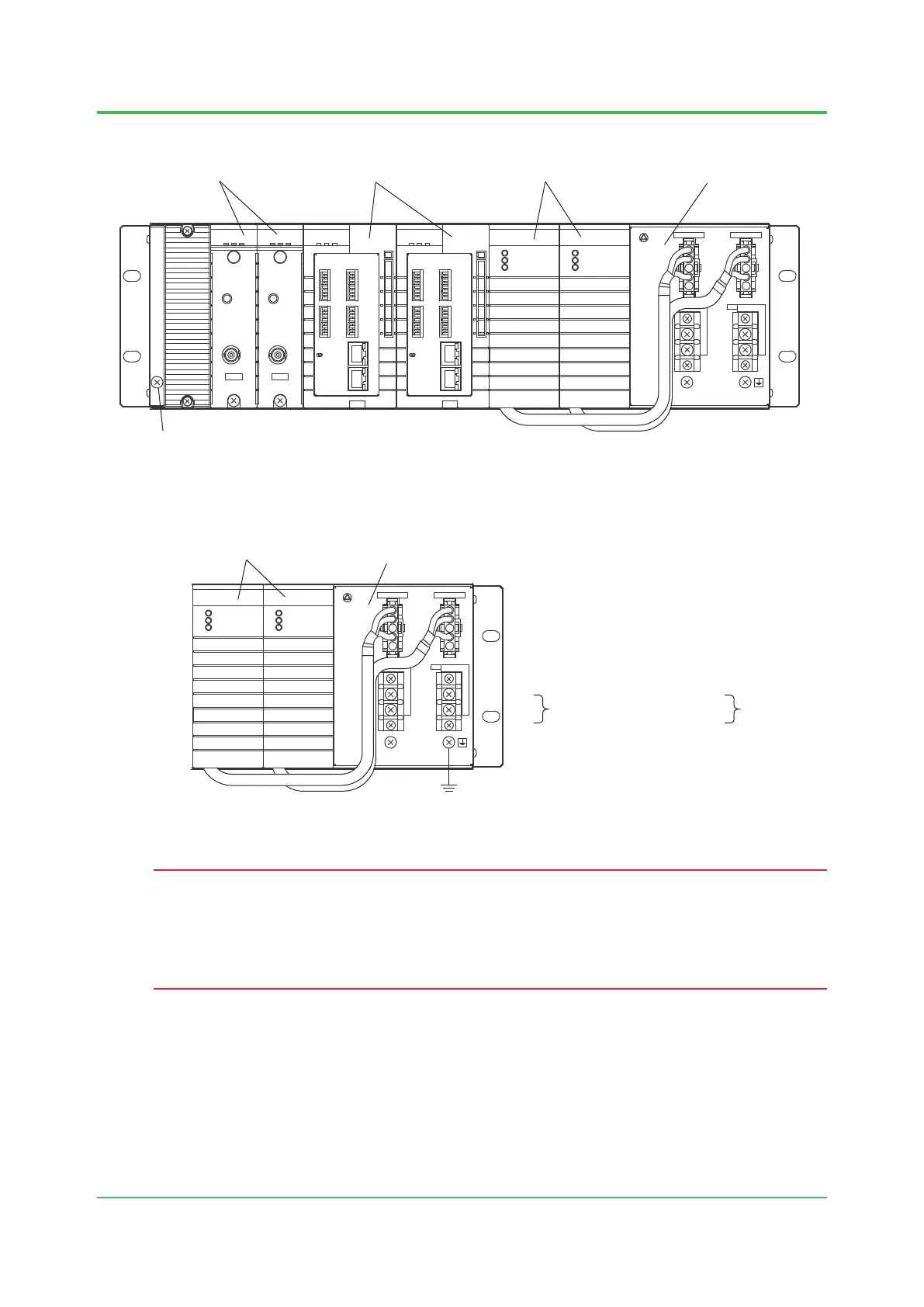

AVR10D Duplexed V net Router
F030412.ai
Power supply modules Communication modules V net coupler modules
Non-connect
Distribution modules
Cabling for Power Supply
The gure below shows the connection terminals for power supply cables.
F030413.ai
Power supply modules Distribution module
Power input terminal
(AC power source)
(Terminal screw: M4)
(Terminal screw: M4)
+
-
(24 V DC)
L
N
Functional grounding terminal
Power Cable Connection
IMPORTANT
When power to the V net router is turned o, communications with the areas within the coverage
of the V net service are disabled. The service coverage area needs to be taken into consideration
when designing a system to supply power to the V net router (e.g. providing an independent
power source for the V net router).
Oct. 25, 2016-00
