3. Cabling
3-24
TI 32P01J10-01EN
AW810D Wide Area Communication Router
F030425.ai
L
N
TM1
220-240V AC 220-240V AC
L
N
CN1(PSU-L)
CN2(PSU-R)
TM1
Power supply modules
Communication modules
Distribution modules
Power supply modules
Distribution module
Power input terminal
(AC power source)
+
-
(24 V DC)
L
N
FG (When using isolation bushing)
(Terminal screw: M4)
Grounding terminal
(Terminal screw: M4)
Dummy cover
Base unit
Non-connect

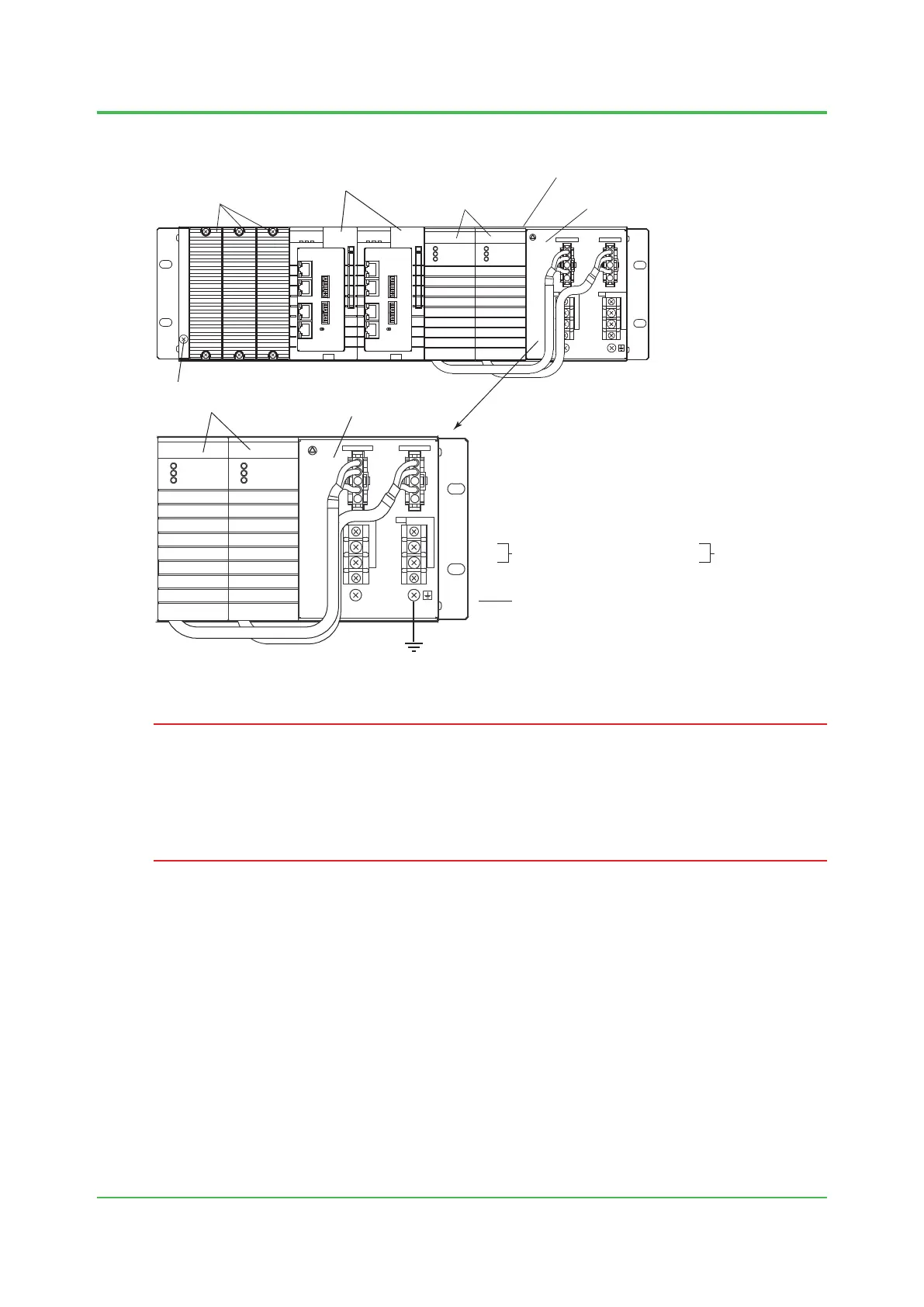

Figure AW810D Wide Area Communication Router Power Cable Connection
IMPORTANT
When power to the Wide Area Communication router is turned o, communications with the
areas within the coverage of the Vnet/IP service are disabled. The service coverage area
needs to be taken into consideration when designing a system to supply power to the Wide
Area Communication router (e.g. providing an independent power source for the Wide Area
Communication router).
Oct. 25, 2016-00
