YOKOGAWA ProSafe-RS

3. Cabling
3-25
TI 32P01J10-01EN

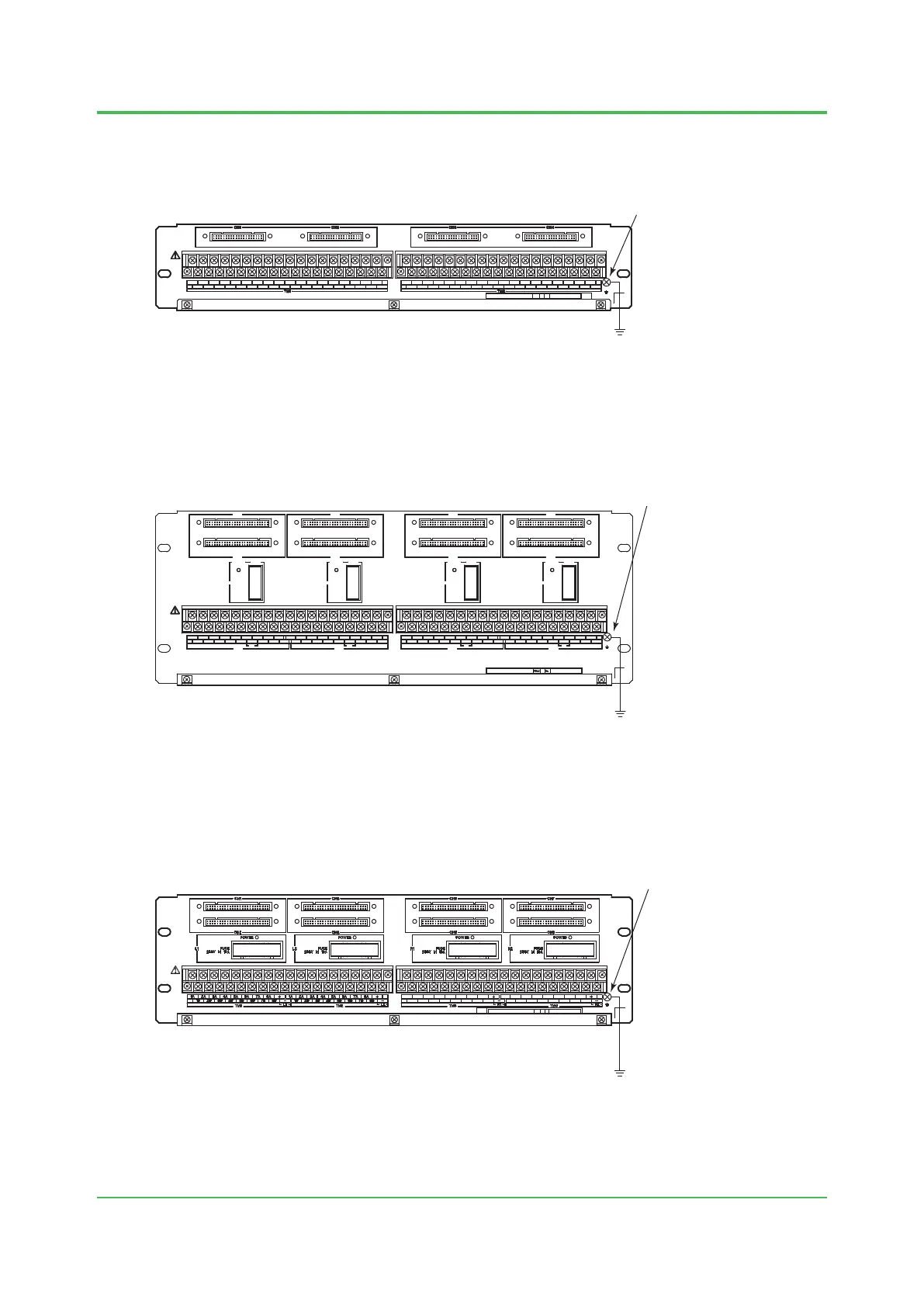

 SEA4D Analog Terminal Board
F030414.ai
Functional grounding
terminal
(Terminal screw: M4)
Figure SEA4D Ground Cable Connection
 SED2D Digital Terminal Board
F030415.ai
CN7
CN8
POWER
FUSE
R2
CN5
CN6
POWER
FUSE
R1
CN3
CN4
POWER
FUSE
L2
CN1
CN2
POWER
FUSE
L1
TM2
L2
TM3 TM4
R1 R2
TM1
L1
Functional grounding
terminal
(Terminal screw: M4)
Figure SED2D Ground Cable Connection
 SED3D Digital Terminal Board
F030416.ai
Functional grounding
terminal
(Terminal screw: M4)
Figure SED3D Ground Cable Connection
Nov. 27, 2015-00
