3. Cabling
3-27
TI 32P01J10-01EN

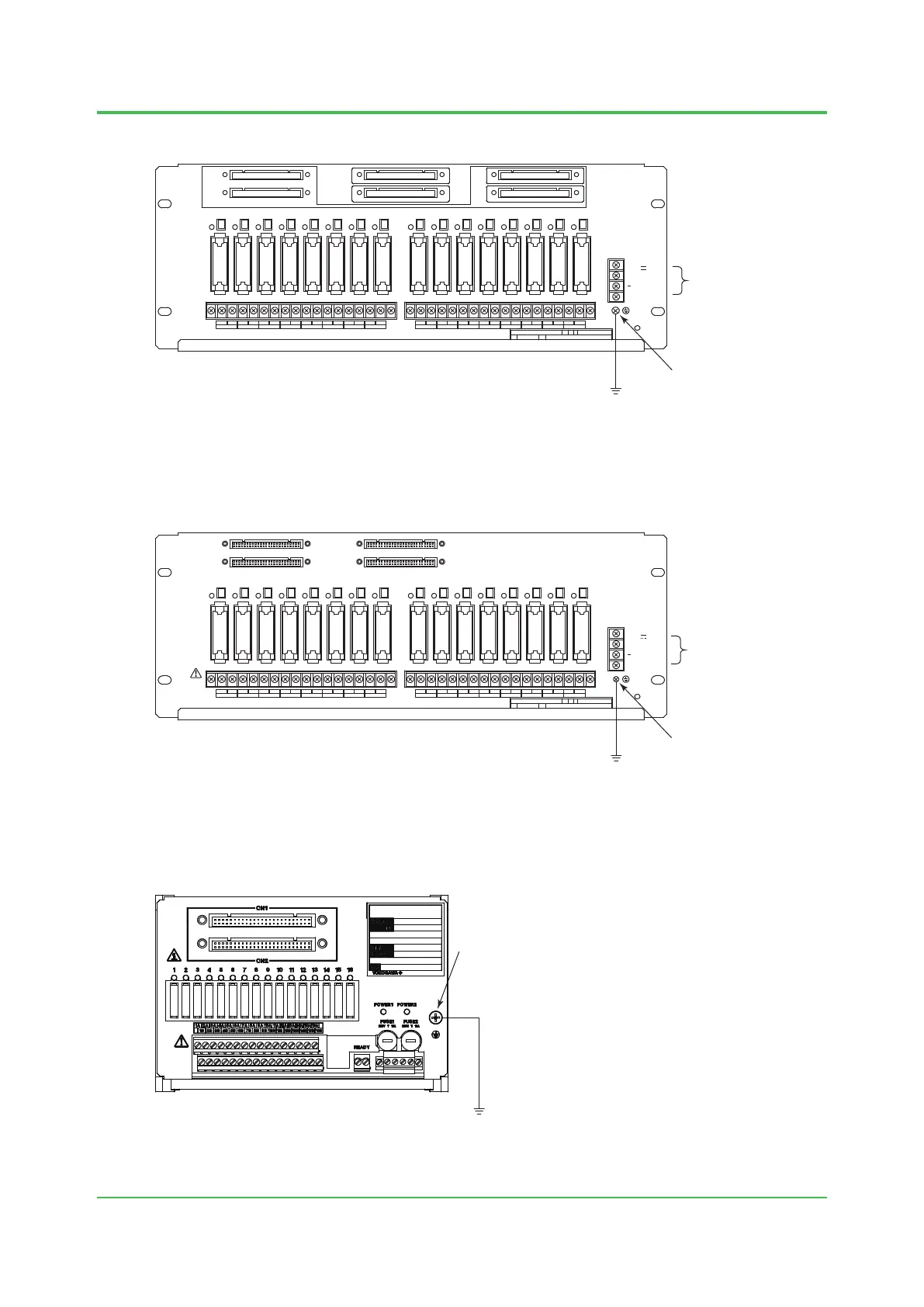

 SRM53D Relay Board for Digital Output
F030419.ai
CN1
CN2
CN3
CN4
CN5
CN6
TM1
FUSE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
TM2
TM3
24V
DC
+
Power supply
input terminal
(Terminal screw: M4)
Protective conductor
terminal
(Terminal screw: M4)
Figure SRM53D Ground Cable Connection
 SRM54D Relay Board for Digital Output
CN1
CN2
CN3
CN4
TM1
FUSE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
TM2
TM3
24V
DC
+
F030420.ai
Power supply
input terminal
(Terminal screw: M4)
Protective conductor
terminal
(Terminal screw: M4)
Figure SRM54D Ground Cable Connection
 SBM54D Relay Board for Digital Output: DIN rail mount type
F30421E.ai
Protective conductor
terminal
(Terminal screw: M4)
Figure S BM54D Ground Cable Connection
Nov. 14, 2017-00
