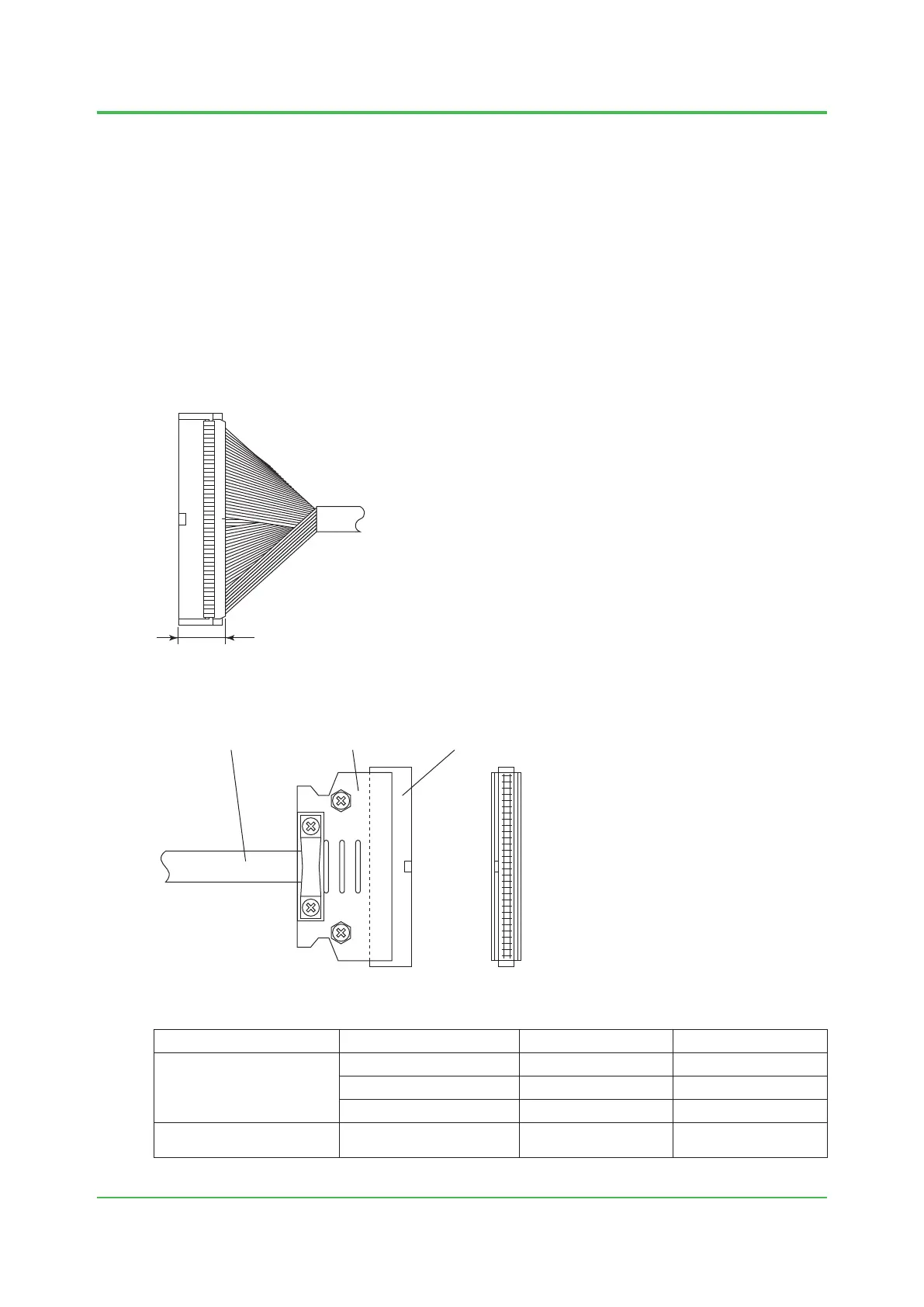

MIL Connector Cover SCCC0
SCCC01 (for at ribbon cables)
When using the SCCC01, use connectors conforming to the following requirements:
• MIL-C-83503-compliant Connector
• Connector with one pin that prevents improper insertion (both 40- and 50-pin connectors)
• The following dimensions must be satised:
16.5 mm – B ≤ A ≤ 15.8 mm
where, A = connector height
B = engagement length
A
F030503.ai
Note: For the engagement length, contact the connector manufacturer.
SCCC02 (for separate cables)
F030504.ai
Cable Hood Socket
Cables and connectors that can be used for the SCCC02 are listed in the table below.
Manufacturer Manufacturer’s Model Product Name Remarks
Japan Aviation Electronics
Industry, Limited
PS-D4C50N Socket
PS-HD50 Hood
PS-SF-C1-1 Contact AWG24 to AWG22
Hitachi Cable, Ltd.
UL 2464SB
25P x 22AWG
Cable
Nov. 27, 2015-00
