YOKOGAWA ProSafe-RS User Manual

3. Cabling
3-38
TI 32P01J10-01EN
S2SC70S/S2SC70D/SSC60S/SSC60D/SSC50S/SSC50D/SSC57S/SSC57D and
SNB10D Cable Connections

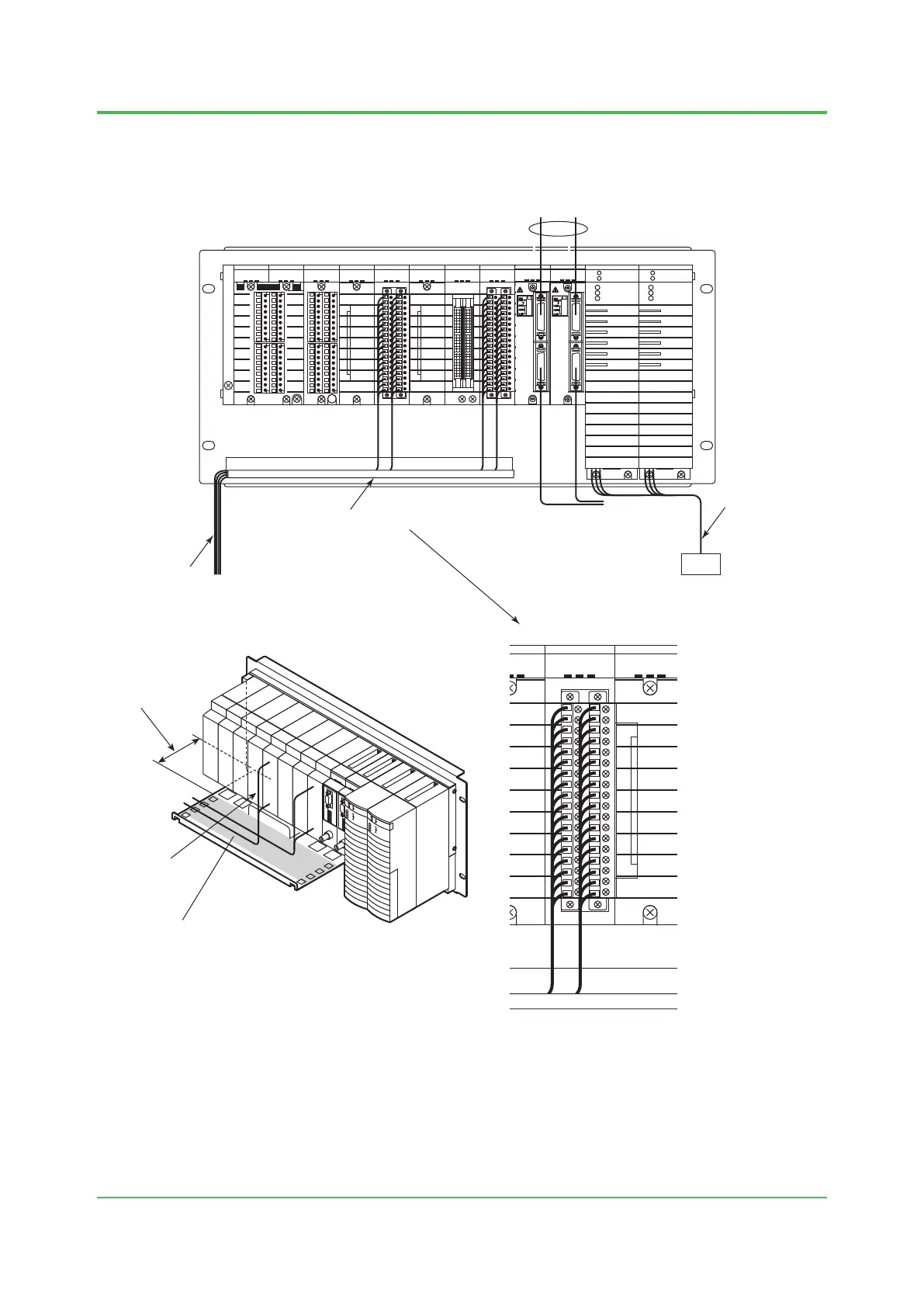

The following shows SNB10D unit cable connections.
F030506.ai
Power cable
SNB10D
ESB bus cable
Signal cable
Cable tray
Magnified
Power
To ensure the airflow route around I/O modules
the signal cables over the tray should be kept away
from the ventilation opening of the tray.
Therefore, the cables should not be laid over the
ventilation openings of the tray.
the ventilation
opening
Signal Cable
Figure SNB10D Unit Cable Connections
Oct. 25, 2016-00
