3. Cabling
3-50
TI 32P01J10-01EN
Connecting I/O Module to Terminal Board
The I/O module with signal cable interface adapter can be connected to the terminal board using
a Yokogawa-specic cable. Field signals are connected through the terminal board.
Example of Connection to SEA4D
SEA4D terminal board allows SAI143, SAV144 or SAI533 modules in both single and dual-
redundant congurations.
F030605.ai
SNB10D
Connection with functional grounding terminal
SEA4D
CN1
CN2
CN3
CN4
1A
1B
2A
2B
18A
18B
17A
17B
16A
16B
KS1
Yokogawa-specific cable

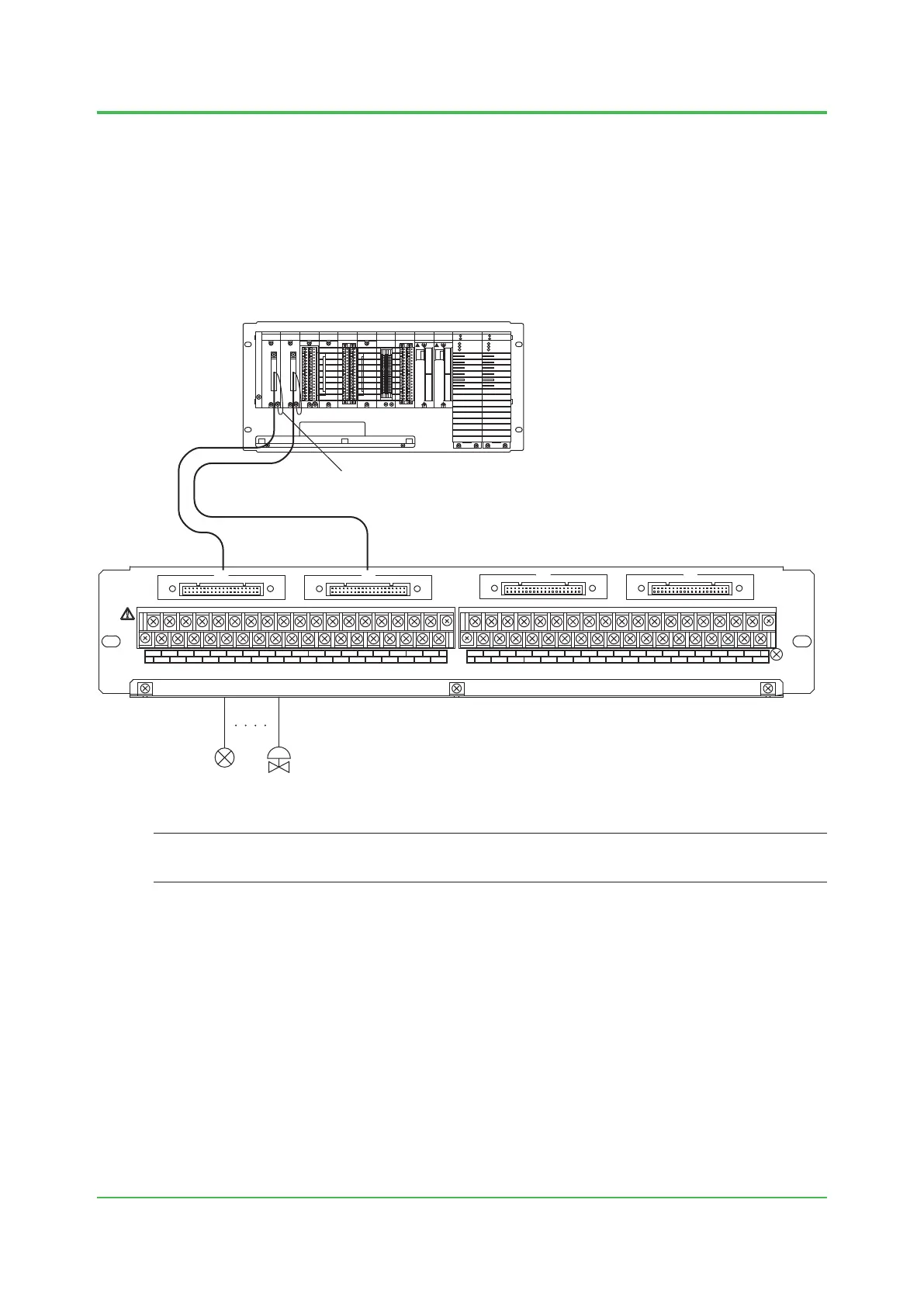

Figure Example of Terminal Board Connection with Dual-redundant I/O Module
SEE
ALSO
For the signal cable interface adapter model and the cable model for I/O modules, refer to GS 32Q06J10-31E,
GS 32S06J10-21E or GS 32S06J10-01E “Field Device Connection (for ProSafe-RS).”
