3. Cabling
3-59
TI 32P01J10-01EN

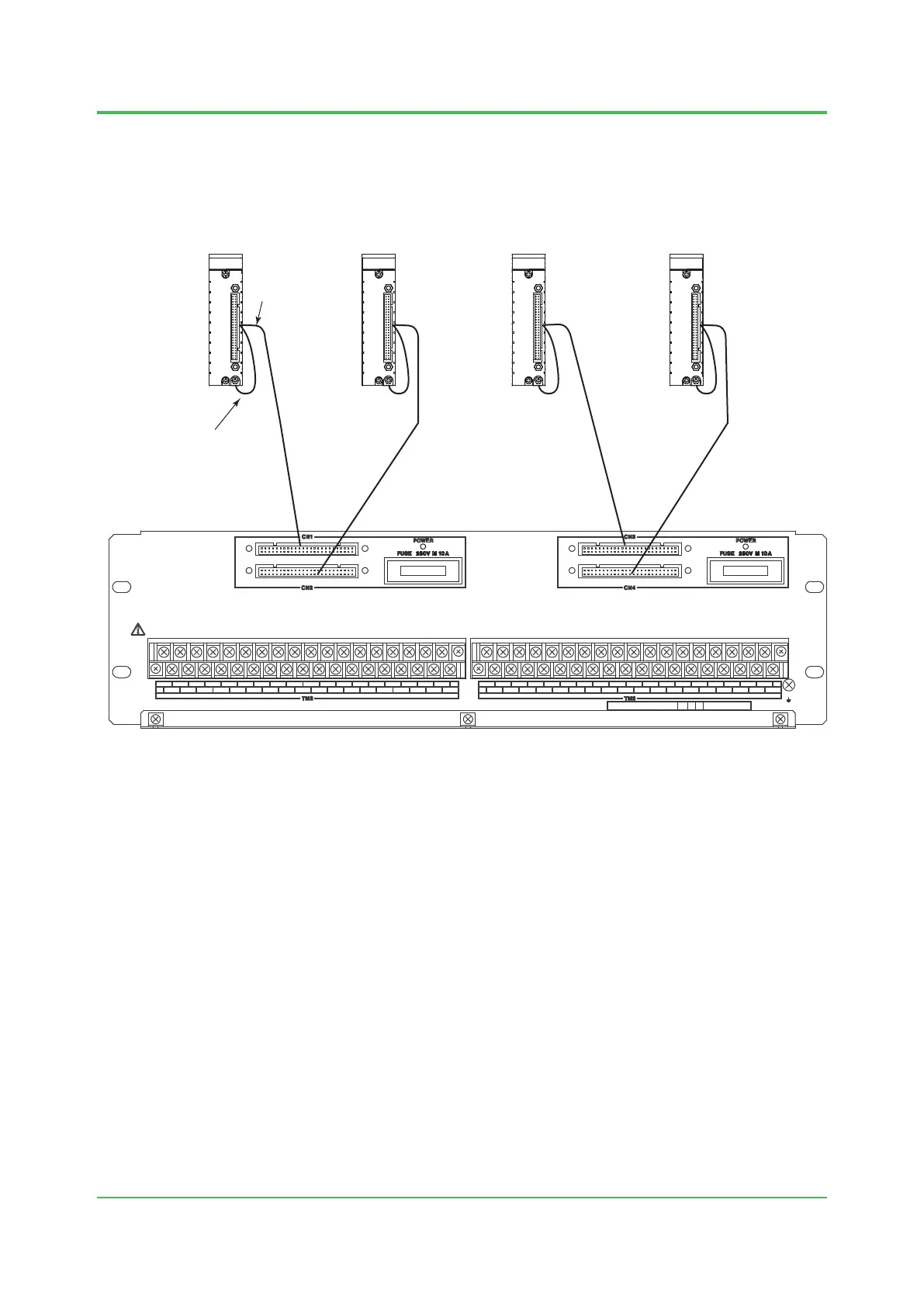

Example of Connection to SED4D
SED4D terminal board allows SDV144, SDV531 or SDV541 modules in both single and dual-
redundant congurations.
F030613.ai
AKB331
Yokogawa-specific
cable
SED4D
SDV531/SDV541 (Digital Output Modules)
SDV144 (Digital Input Module)
Connection with
functional grounding
terminal
Figure Connecting Digital Input/Output Modules to SED4D Terminal Board (for Dual-redundant Use)
Nov. 27, 2015-00
