Example of Connection to SBD3D
SBD3D terminal board allows SDV53A or SDV531 modules in both single and dual-redundant
congurations.
AKB331/AKB651
Yokogawa-specific
cable
CN1
CN2
POWER1
POWER2
READY
1A 2A 3A 4A 5A 6A 7A 8A
1B 2B 3B 4B 5B 6B 7B 8B
FUSE1
250V T 10A
FUSE2
250V T 10A
SBD3D
F030612.ai
SDV53A/SDV531 (Digital Output Modules)
Connection with
functional grounding
terminal

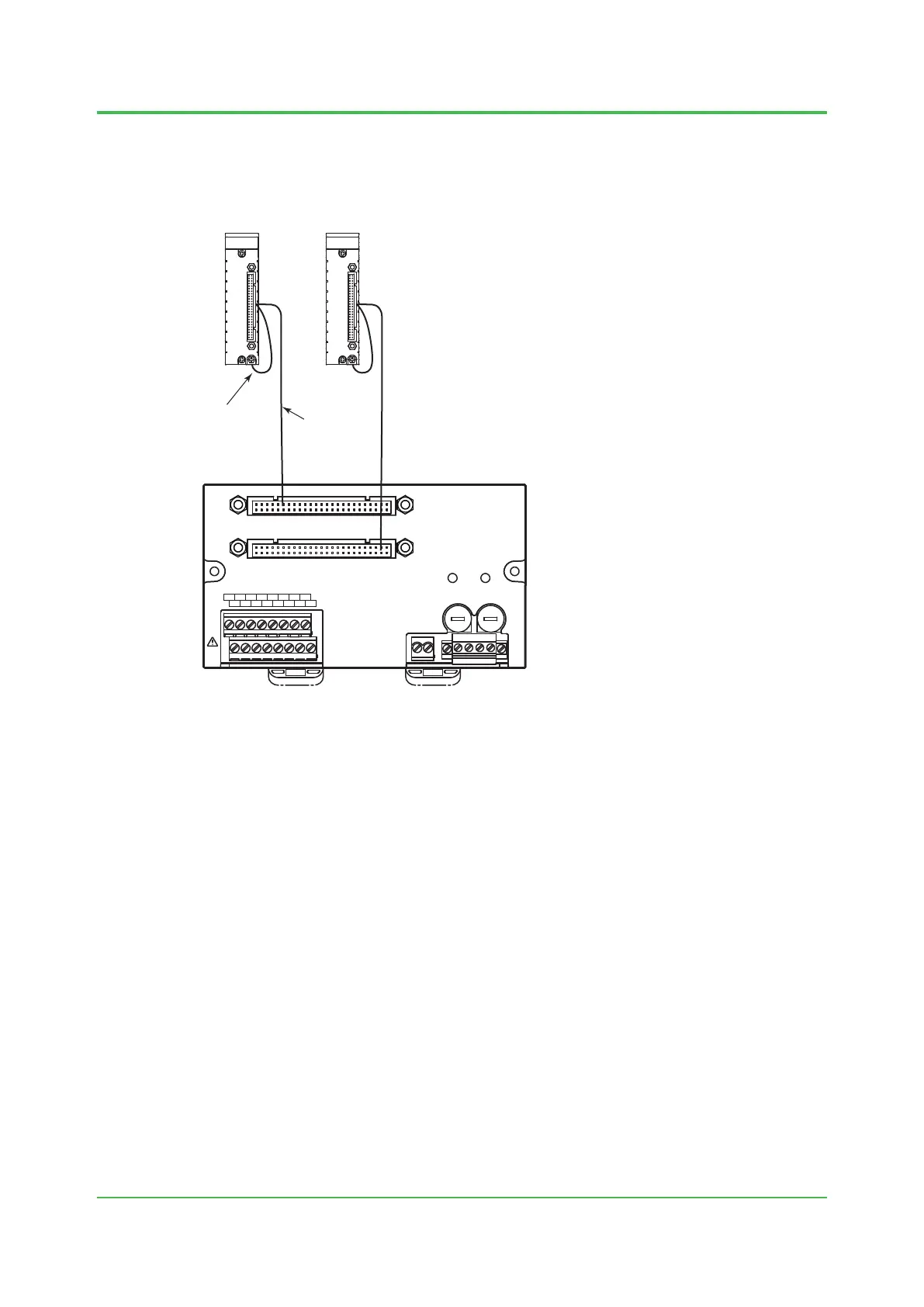

Figure Connecting Digital Output Modules to SBD3D Terminal Board (for Dual-redundant Use)
