Example of Connection to SED3D
SED3D terminal board allows SDV53A modules in both single and dual-redundant
congurations.
SED3D
SDV53A (Digital Output Modules)
F030611.ai
AKB331
Yokogawa-
specific
cable
Connection
with functional
grounding
terminal

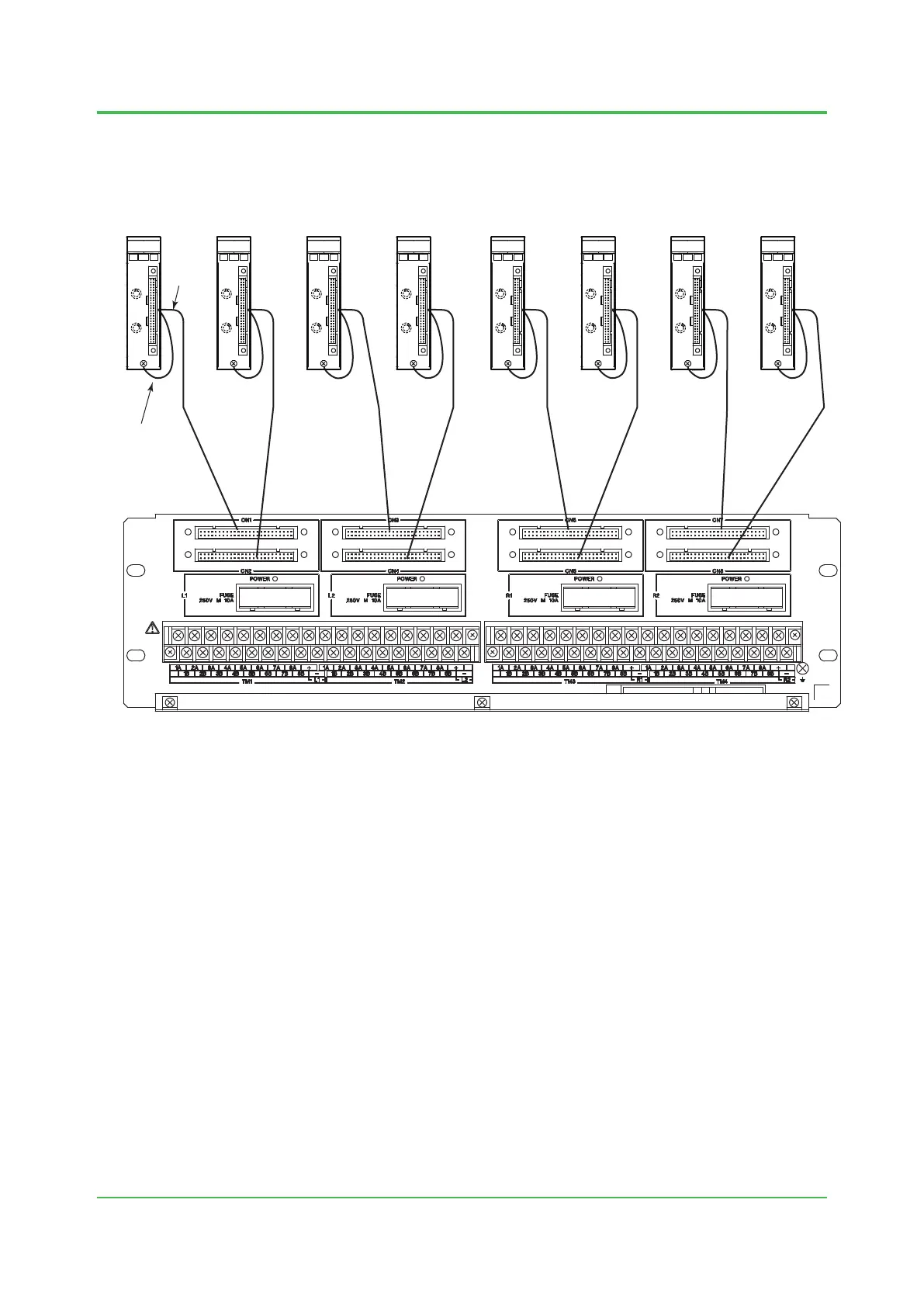

Figure Connecting Digital Output Modules to SED3D Terminal Board (for Dual-redundant Use)
