1. System Installation Requirements
1-39
TI 32P01J10-01EN
C P U
C P U
I O M
I O M
I O M
I O M
FAN FAN
S2SC70D-F/SSC60D-F
Cabinet
(1) (1)
(5)
(5)
(8)
for HUB
(*1) (*1)
for SSB401
for SNT501
(10)
(10)
(14)
(11)
SPW48
SNT401
SNT401
SPW48
(11)
(14)
(16)
Noise
Filter
F010802.ai
(16)
*1: SEC401/SEC402 ESB Bus Coupler Module
Note: IOM is abbreviation of Input/Output Modules.
Note: Figures in ( ) show the locations listed in “Table Cables that Need Ferrite Cores to be
Attached to, and Ferrite Core Models and Quantities”. It is NOT a number of ferrite core.

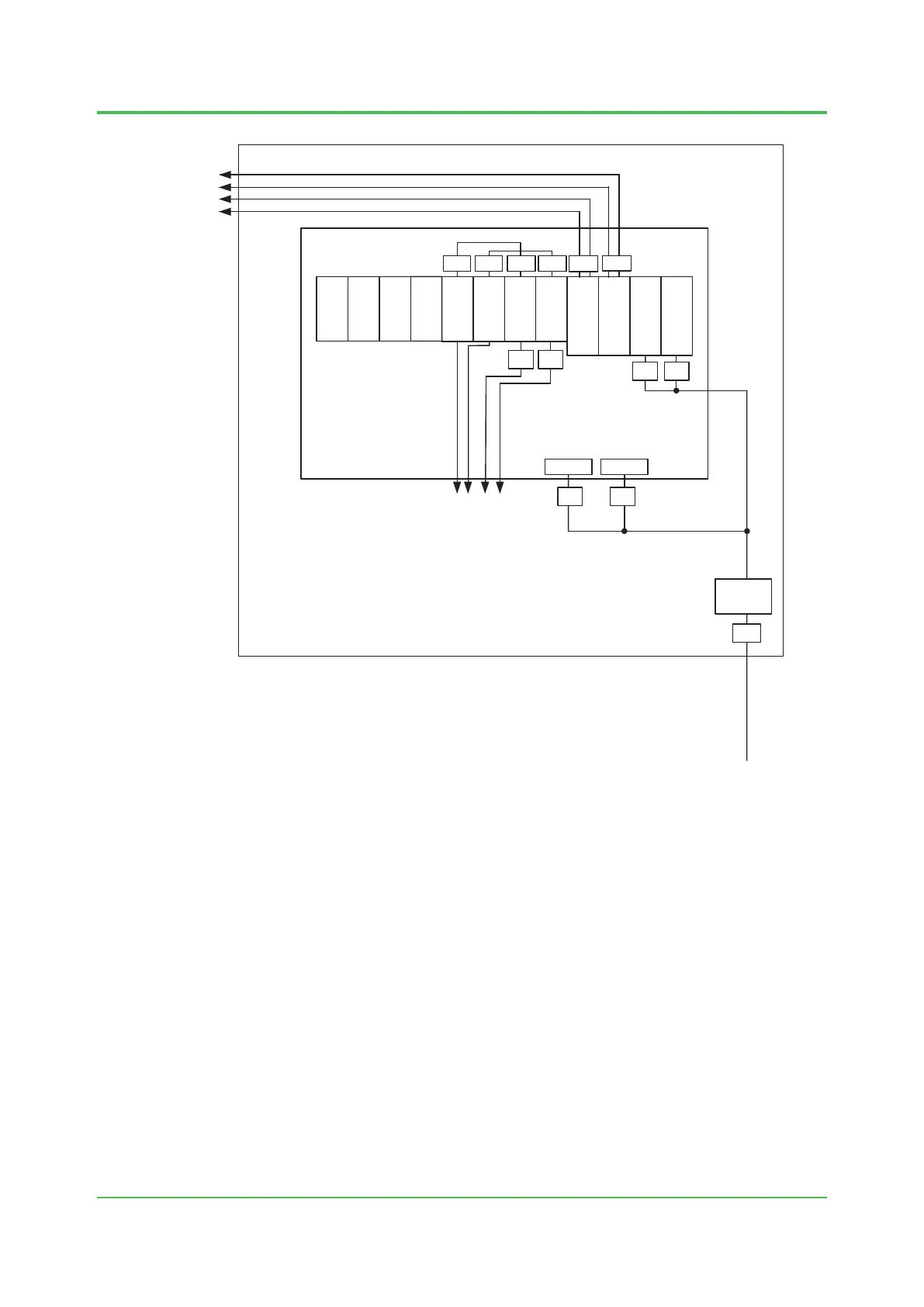

Figure Locations of Ferrite Core Installation for S2SC70D-F/SSC60D-F
Oct. 25, 2016-00
