2. Transportation, Storage and Installation
2-34
TI 32P01J10-01EN
Mar. 29, 2019-00
The following shows how to mount an SCU for N-IO and N-IO nodes in a cabinet:
F020528.ai
SCU
Cabinet
Non-mounting area / Wiring is possible
(1 unit or more)
Non-mounting area / Wiring is possible
(1 unit or more)
Non-mounting area / Wiring is possible
(1 unit or more)
External power
supply area
SCU FAN UNIT
SCU
NIU
External power
supply
IOBP
Non-mounting area / Wiring is possible
(100 mm or more)
IOBP IOBP
NIU
IOBP
IOBP
IOBP
IOBP
Heat-generating device non-mounting
area / Wiring is possible
Heat-generating device non-mounting
area / Wiring is possible

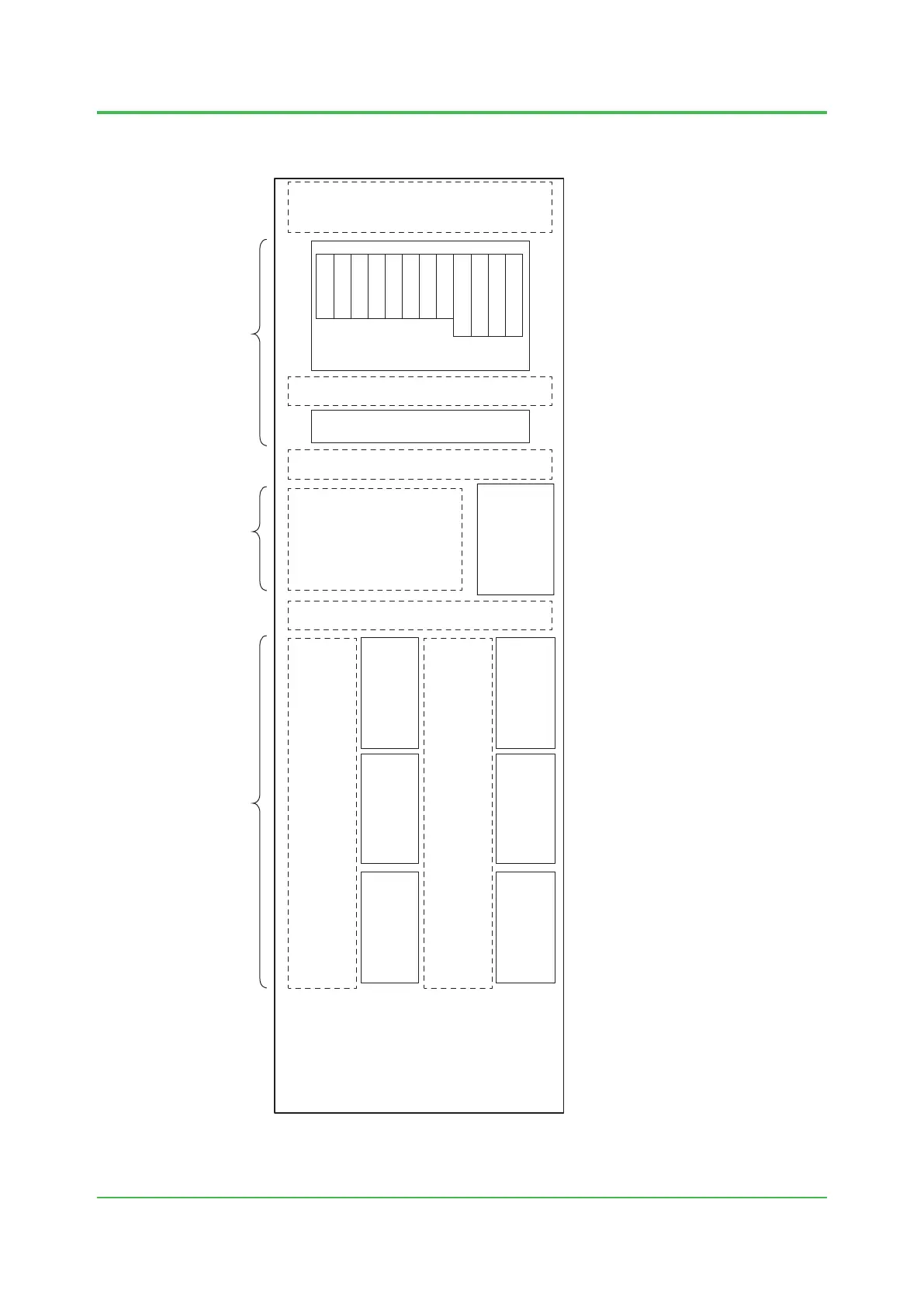

Figure Example of Mounting an SCU for N-IO and N-IO Nodes in a Cabinet
To Next Page
