Yongnuo YN-622C User Manual

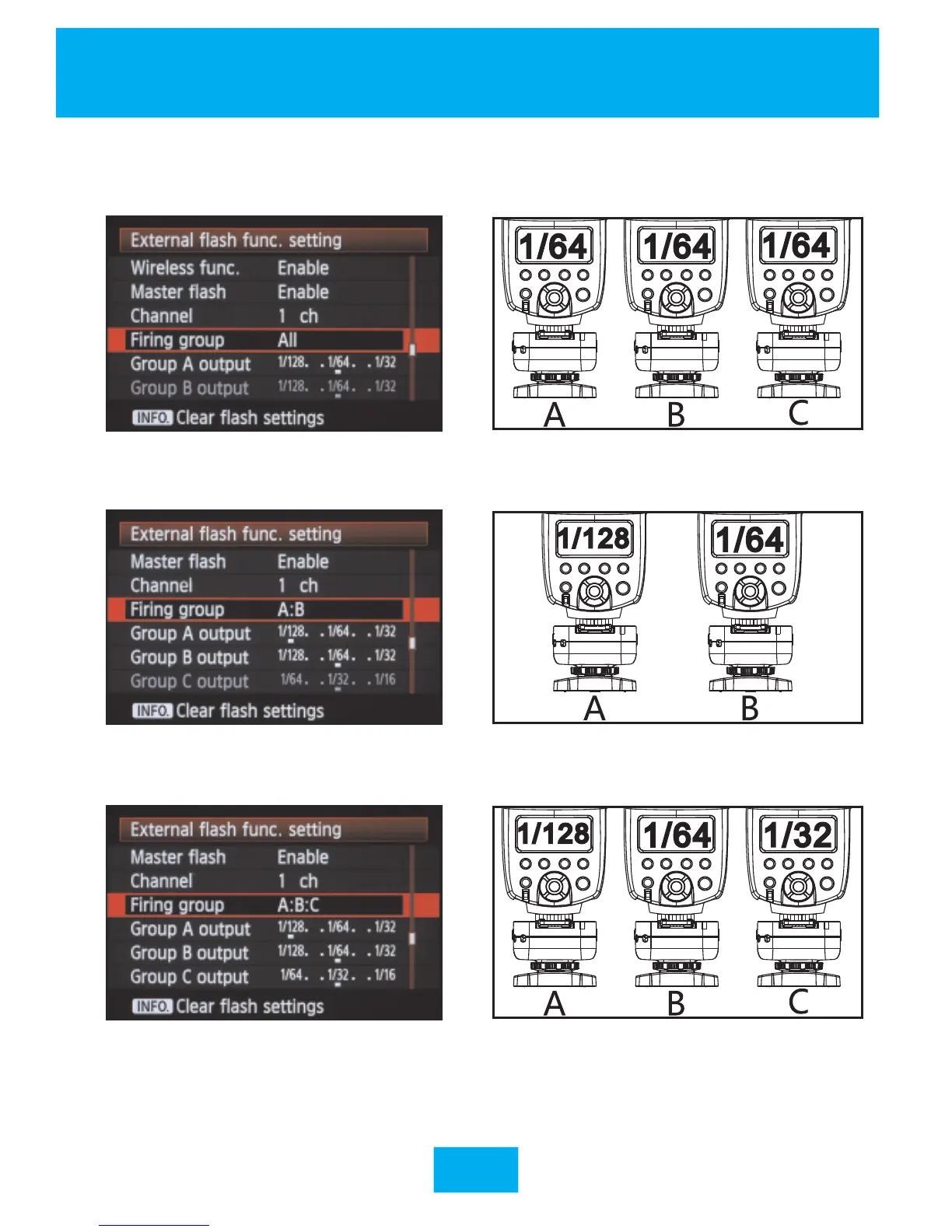

Manual/Multi Flash Output
20
Flash output for each group A/B/C can be
separately set under Manual/Multi flash mode.
1. All (A+B+C)-The three groups of flashes shall be set
with the same output.
2. A: B-Group A and B shall be separately set Group C
flash will not fire.
,
3. A: B: C-Group A, B, C shall be separately set.
※Flash output under menu root is same to Group A.

Yongnuo YN-622C Specifications

Power

battery type	2x AA batteries (1.5v Alkaline or 1.2v NiMH)
standby time	60 hours
max safe trigger voltage on hot-shoe centre pin	6 volts

Connectors

canon hot foot	with locking ring and pin
canon hot shoe	for mounting hot-shoe flash
pc-sync screwlock socket	sync out only

Weight and Dimensions

dimensions	90 x 53 x 25mm (39mm incl. hot-foot)
weight	79gm without batteries
