Yongnuo YN-622C User Manual

22
Type B Cameras:
There is no flash control menu of such type of cameras
that some of function will be restricted. Enable the mix
control mode of the transmitter before using(P.21).
1. Setting of transmitting groups (set in the transmitter when
it in transmitting status):

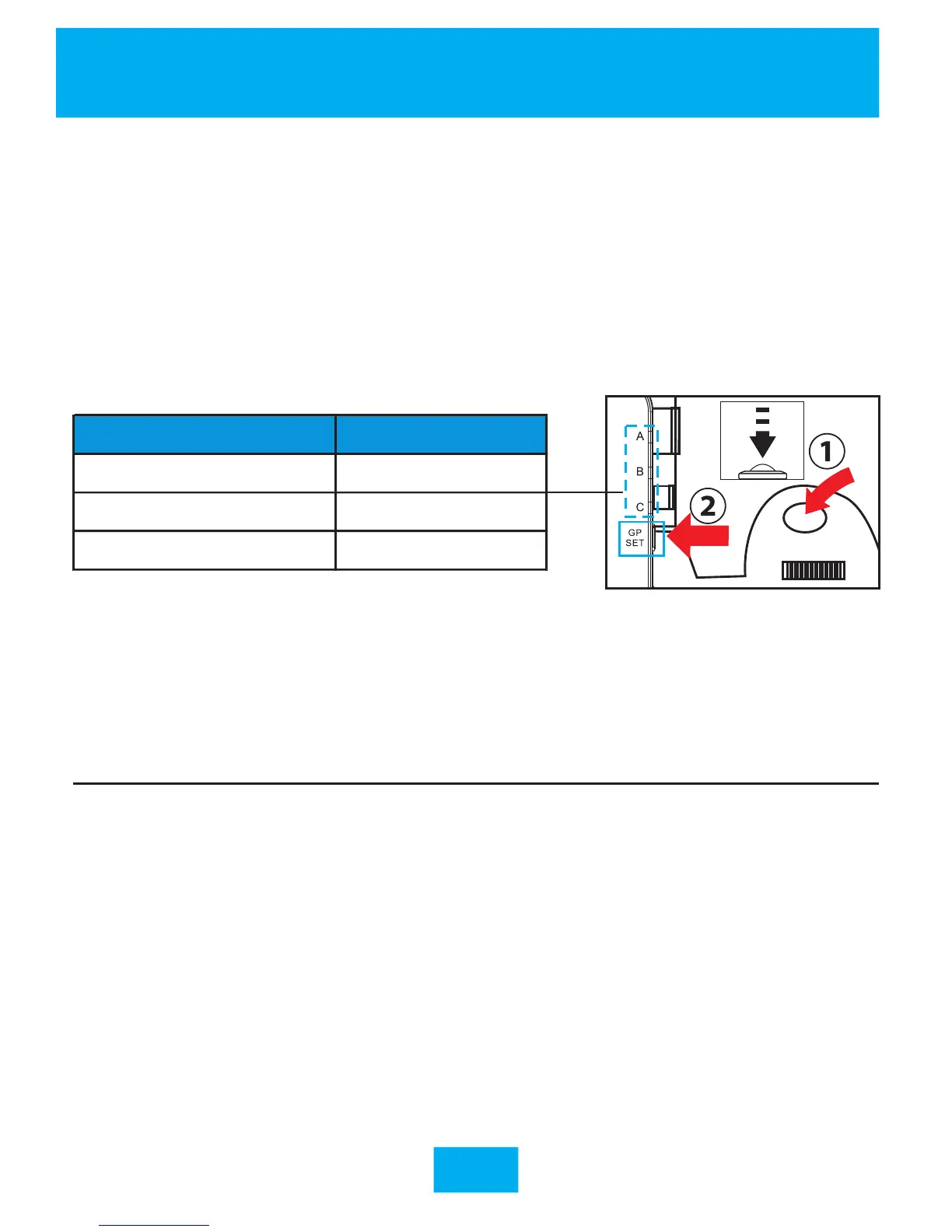

Half press the camera’s shutter button then status indicator
blinks green. Press [GP SET] to set transmitting firing groups.
Flash Triggering of B/C Type Camera
Type C Cameras: Manually set the Flash Output
1. Transmitting group set (via the transmitter):
Set according to testing group of transmitter (p.9).
2. Flash mode set (via the flash control panel):
Set the manual(M) flash output via the control
panel of the flash, and trigger with transmitter's
main flash contact(single contact). Do not support
hi-speed sync or other TTL functions.(Max speed
sync is 1/250s or less)
2. Setting of flash mode (via the flash control panel):
1). Automatic (ETTL) mode supports automatic flash, supports
the settings of FEC and FEB, it defaults to hi-speed sync.
2). Manual (M) mode, manually set the flash output. It defaults to
hi-speed sync.
3). Multi mode, set according to the flash.
Group Indicator Firing Group
Indicator A blinks ALL（A+B+C）
Indicator B blinks （A:B）
Indicator C blinks ALL（A+B+C）

Yongnuo YN-622C Specifications

Power

battery type	2x AA batteries (1.5v Alkaline or 1.2v NiMH)
standby time	60 hours
max safe trigger voltage on hot-shoe centre pin	6 volts

Connectors

canon hot foot	with locking ring and pin
canon hot shoe	for mounting hot-shoe flash
pc-sync screwlock socket	sync out only

Weight and Dimensions

dimensions	90 x 53 x 25mm (39mm incl. hot-foot)
weight	79gm without batteries
