N. Close-up of the base, shown separately to be more easily seen
O. Access to filters and indoor coil
P. Condensate drain connection (1” BSP Female)
Q. Access to the outdoor air compartment
R.
Supply and return air compartment side panels See
Connections for supply and return side
ducts
, ver pág. 10
S. Compressor access
T. Pressure reading connection
1. Return air
2. Supply air
3. Condensate air

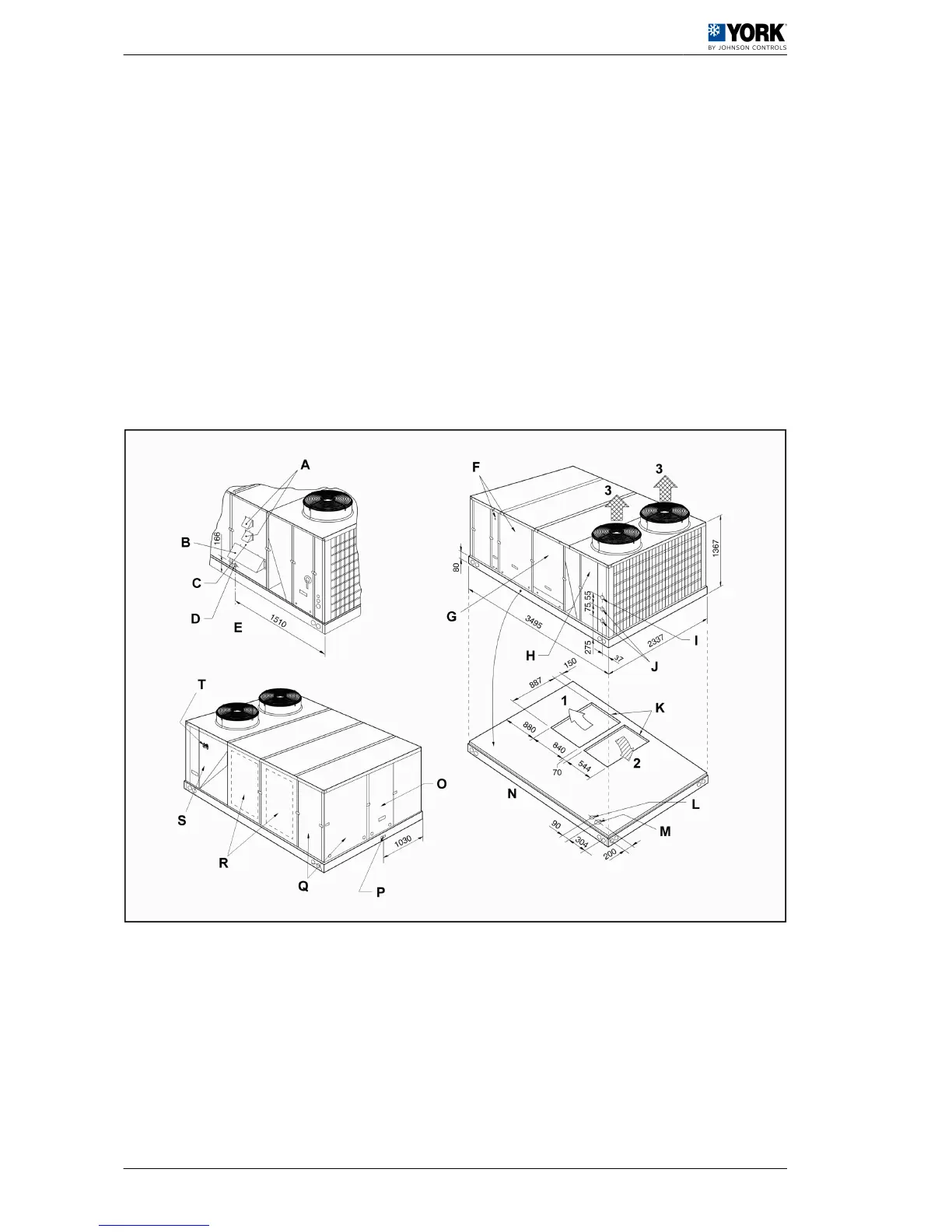

1.10.3 General dimensions and ac‐
cesses (models 075/090)
A. Combustion exhaust hood
B. Combustion air input hood
C. Access to gas heating system
D. Gas supply intake (∅ 58 mm), with rubber grommet
E. RAG/RAD unit details
F. Access to motor, fan and pulleys
G. Access to heating options
H. Access to control system
I. Control cable intake (∅ 23 mm) (side)
1 Installation manual
1.10 Measurements, clearances and accesses
12
