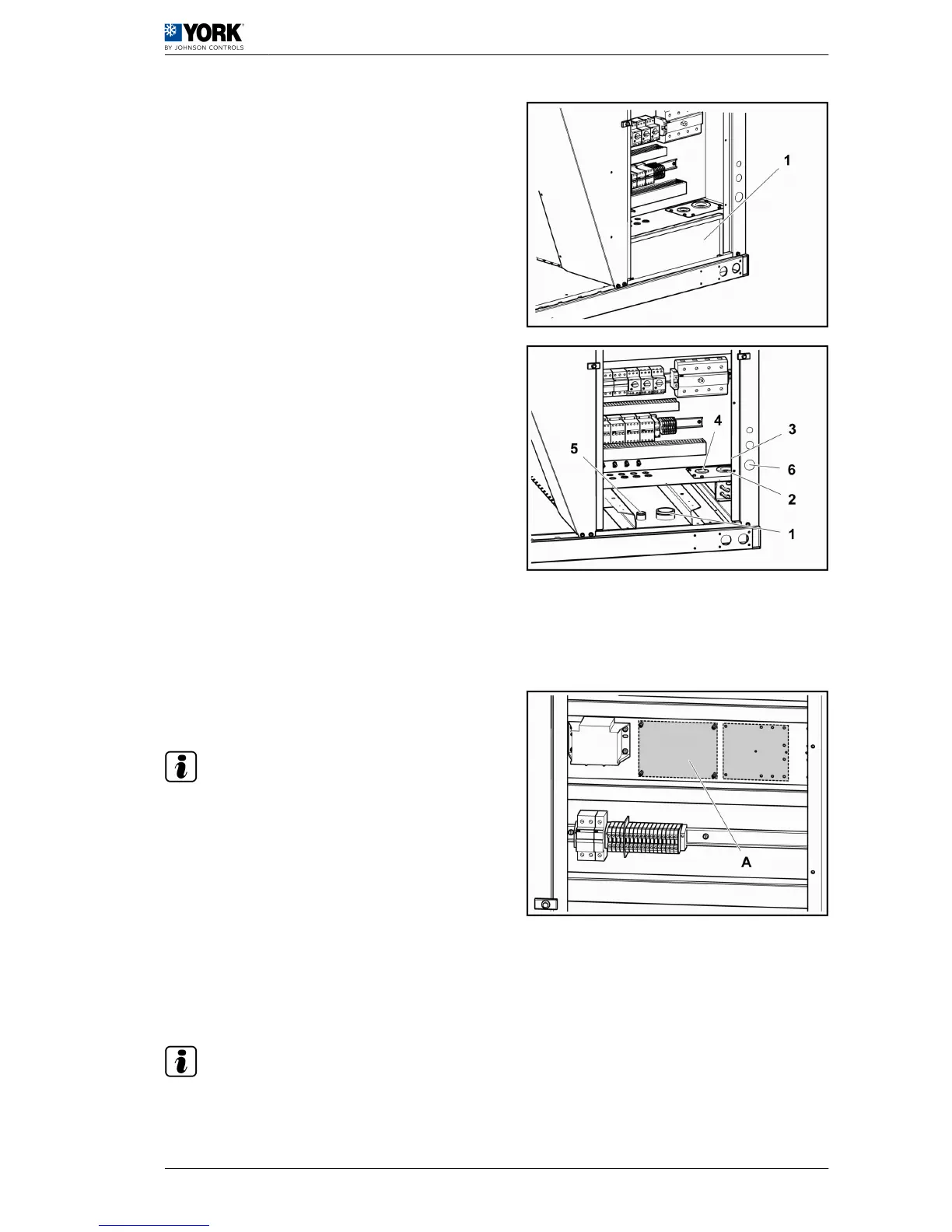

Bringing the power and control cables directly from
the Roof-curb
Remove the protective plate -1-.
Pull the cables through the gland at the base of the
unit. -1- and -5-.
Pull the cables through the grommet to the electrical
panel. -2- and -4-.
Seal the glands with silicone to ensure they are leak-
proof.
Replace the protective plate.
Passing the power and control cables through the
front of the unit.
Exchange the position of the side cover -3- and the
plate that has the grommet. -2- and -4-.
Press the the appropriate openings on the edge of the
unit -6- until they are released.
Place gland that fits the cable and pull the cable
through the grommet to the electrical panel. -2-.
Connect the cable to the terminals indicated and firm‐
ly tighten the set screws. Also consult the Wiring Di‐
agrams.
N O T E
The complete wiring diagram for the unit is attached
to the inside of the electrical panel.
Condensates. Insulation and/or protec‐
tion of ducts
Condensates should be released by means of a spe‐
cific installation in line with local or national regula‐
tions.
N O T E
For further information on this subject, always keep
the current regulations for the country where the unit
is being installed at hand.
Installation manual
1
Instructions for installation and connection of the unit 1.15
27
