York MILLENNIUM Y24 - Hot Water Coil - 25 & 30 Ton, 1 Row, at 30 Gpm; Hot Water Coil - 25 & 30 Ton, 1 Row, at 40 Gpm

102777-YIM-E-0206
Unitary Products Group 119

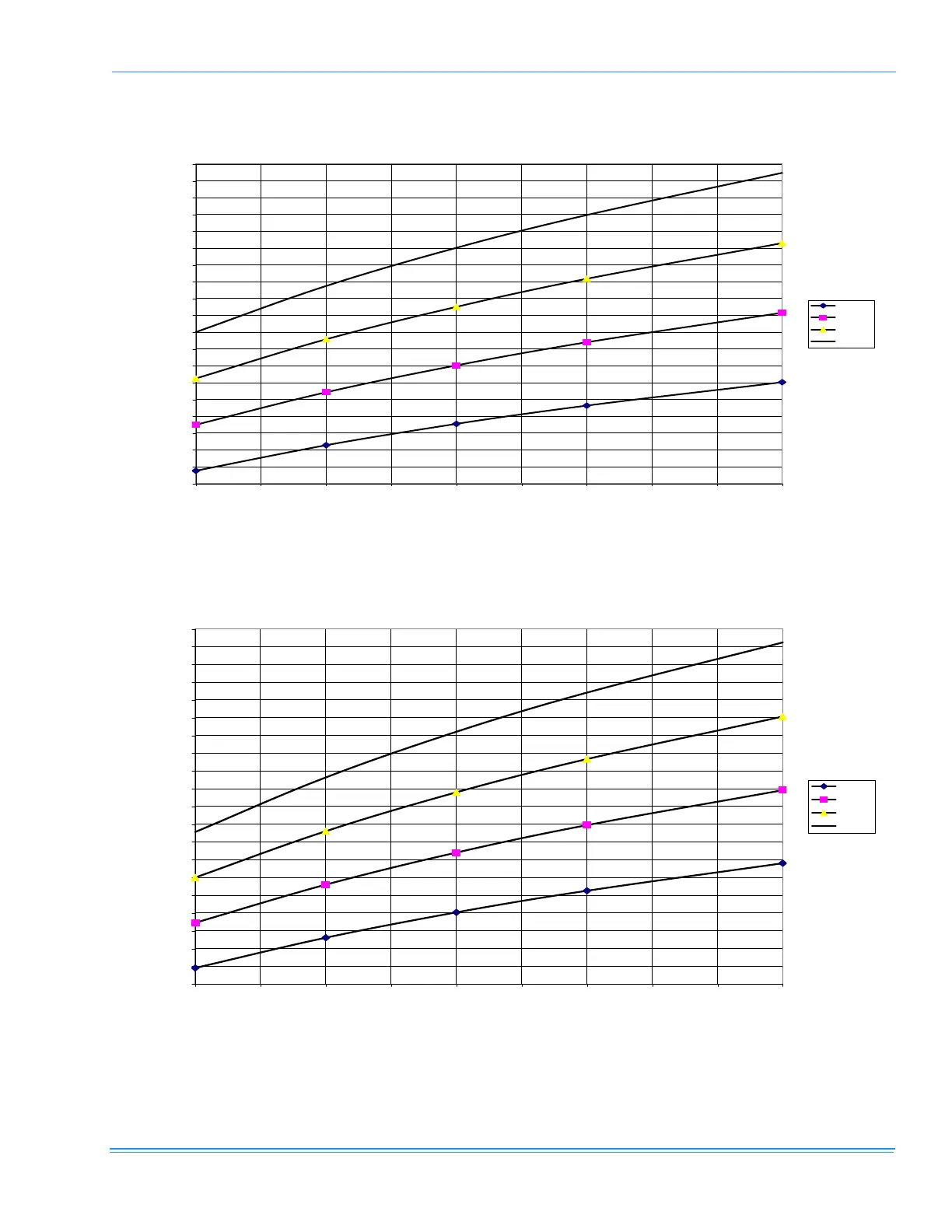

FIGURE 38 - HOT WATER COIL - 25 & 30 TON, 1 ROW, AT 30 GPM
100.0
110.0
120.0
130.0
140.0
150.0
160.0
170.0
180.0
190.0
200.0
210.0
220.0
230.0
240.0
250.0
260.0
270.0
280.0
290.0
6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
FLOW RATE (CFM)
CAPACITY (MBH)
140 °F
160 °F
180 °F
200 °F
FIGURE 39 - HOT WATER COIL - 25 & 30 TON, 1 ROW, AT 40 GPM
180.0
200.0
220.0
240.0
260.0
280.0
300.0
320.0
340.0
360.0
380.0
400.0
420.0
440.0
460.0
480.0
500.0
520.0
540.0
560.0
580.0
6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
FLOW RATE (CFM)
CAPACITY (MBH)
140 °F
160 °F
180 °F
200 °F
