York MILLENNIUM Y24 - Bottom Supply and Return

102777-YIM-E-0206
Unitary Products Group 39

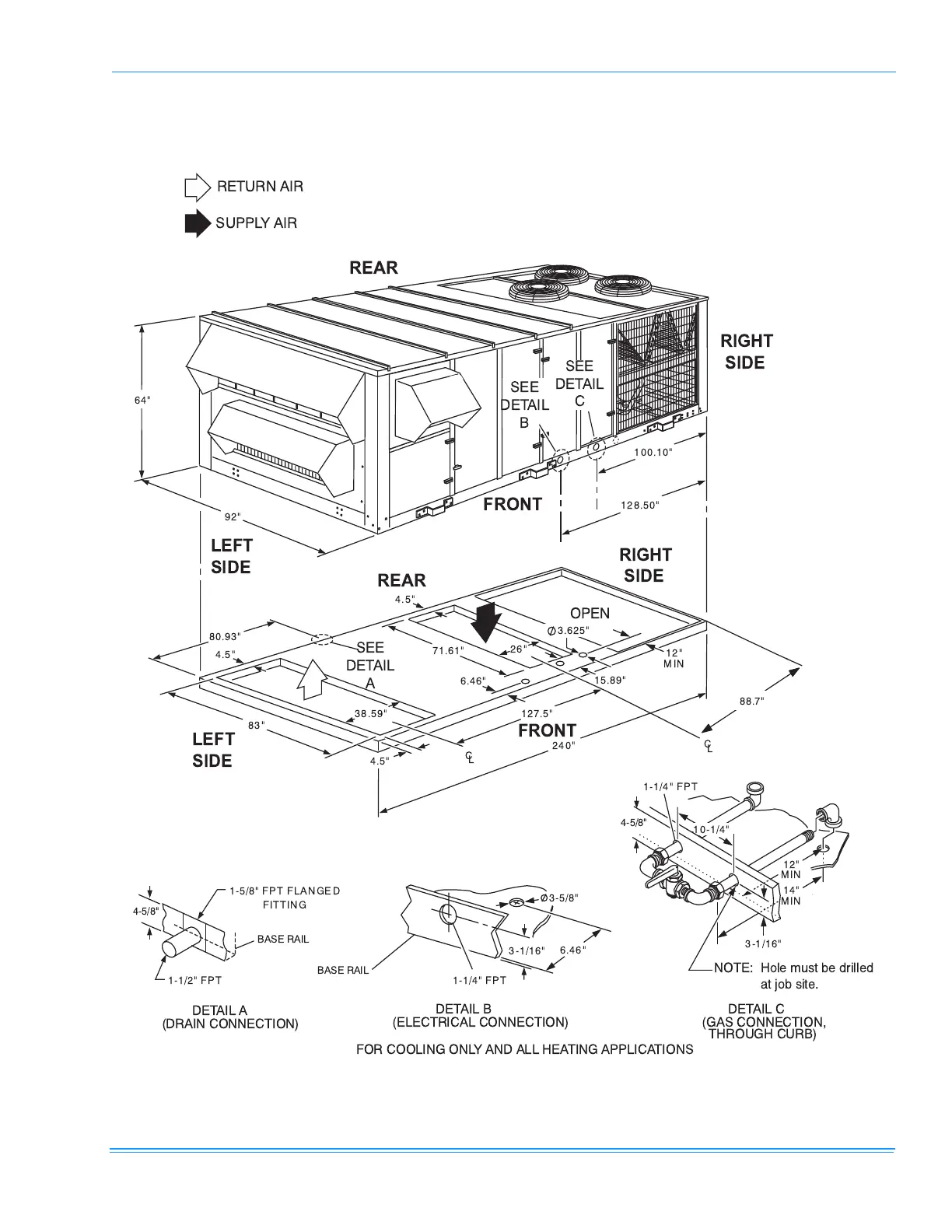

FIGURE 13 - BOTTOM SUPPLY AND RETURN
88.7"
C
L
C
L
240"
38.59"
83"
4.5"
4.5"
64"
92"
80.93"
SEE
DETAIL
A
26"
4.5"
15.89"
71.61"
127.5"
100.10"
128.50"
SEE
DETAIL
C
SEE
DETAIL
B
OPEN
1-5/8" FPT FLANGED
FITTING
1-1/2" FPT
3.625"
6.46"
12"
1-1/4" FPT
10-1/4"
3-1/16"
1-1/4" FPT
3-5/8"
6.46"
3-1/16"
MIN
14"
MIN
12"
MIN
BASE RAIL
BASE RAIL
DETAIL A
(DRAIN CONNECTION)
DETAIL B DETAIL C
(ELECTRICAL CONNECTION) (GAS CONNECTION,
THROUGH CURB)
NOTE: Hole must be drilled

at job site.
4-5/8"
4-5/8"
FOR COOLING ONLY AND ALL HEATING APPLICATIONS
SUPPLY AIR
RETURN AIR












