York MILLENNIUM Y24 - 30 Ton Charging Curve

102777-YIM-E-0206
Unitary Products Group 135

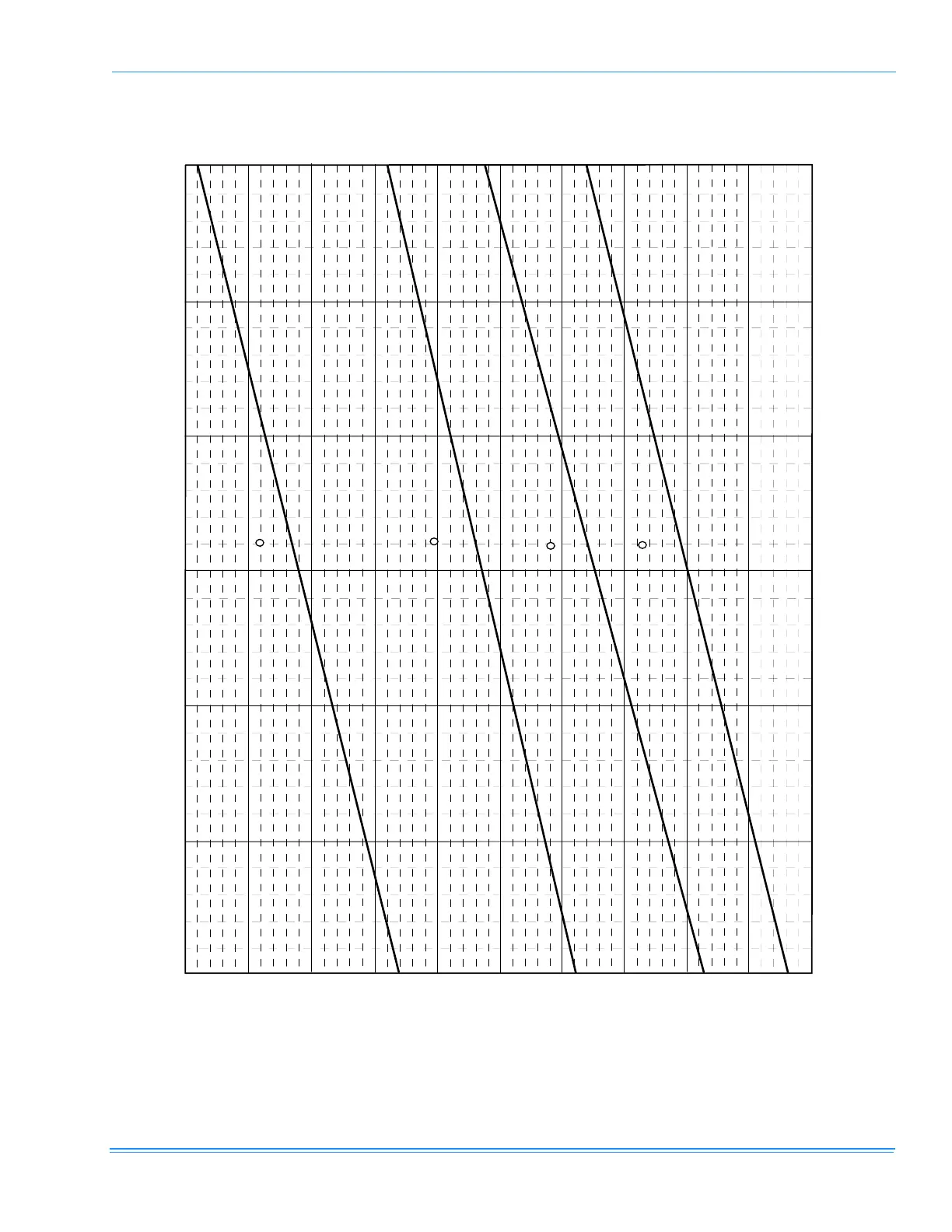

FIGURE 59 - 30 TON CHARGING CURVE
30 TON CHARGING CURVE
120 F
105 F
95 F
85 F
SUCTION PRESSURE (PSIG)
40
50
60
70
80 90
100
420 400 380 360 340 320
300
280
260
240 220
DISCHARGE PRESSURE (PSIG)
