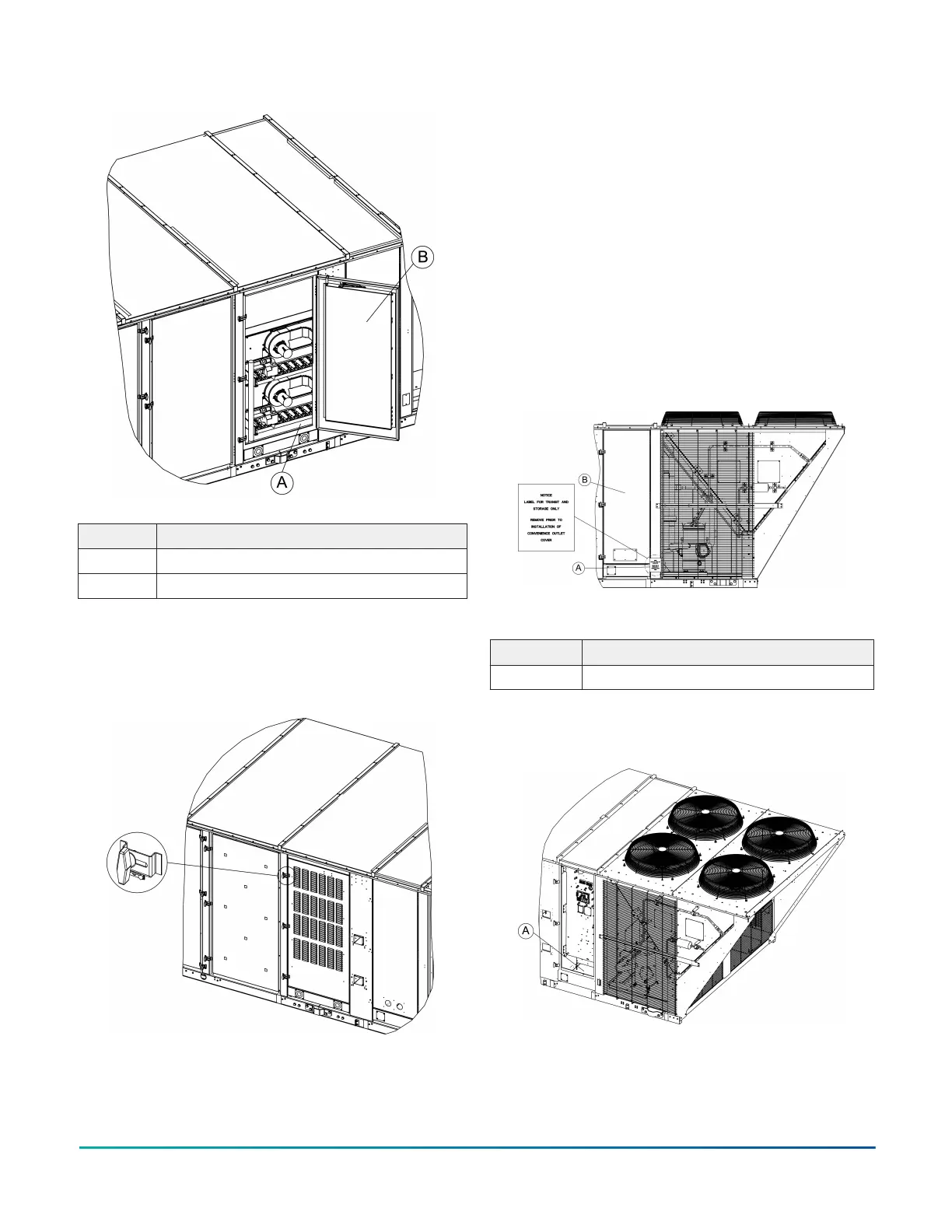

Figure 51: Door knob location
Item Description
A Toolless access handle location
B Gas heat access panel
4. Reinstall the latches to the unit using the
toolless access handles in place of the
bolts removed in Step 2. A completed latch
assembly can be seen in Figure 52.
Figure 52: Toolless access handle assembly
Convenience outlet cover
installation
About this task:
For units with a powered or non-powered
convenience outlet, the convenience outlet cover
must be installed in the field after the unit is
installed.
To install the convenience outlet cover, complete the
following steps.
1. The unit ships from the factory with a
transit label covering the convenience outlet
receptacle as shown in Figure 53. Remove and
discard the convenience outlet transit label.
Figure 53: Convenience outlet transit label
Table 7:
Item Description
A Convenience outlet transit label
2. The convenience outlet cover is shipped in the
floor of the control box as shown in Figure 54.
Figure 54: Location of convenience outlet cover
Installation Manual: YORK
®
Sun
™
Select YV28 to YV50
36
Johnson Controls Ducted Systems
