York Sun Select YV28 - Exhaust Air Hood Assembly

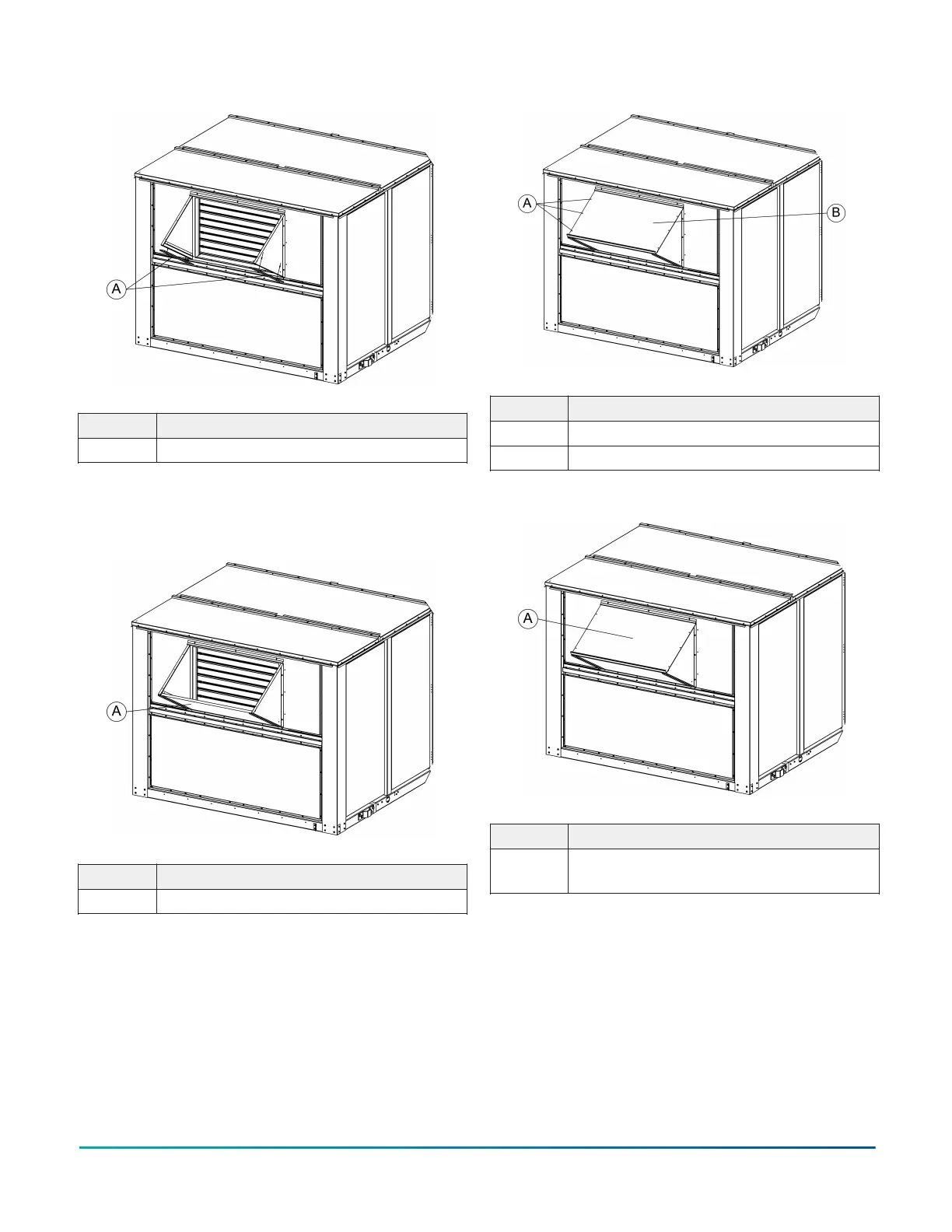

Figure 20: Filter support bracket mounting
Item Description
A Filter support brackets
6. Insert the filters into the channel created
between the side panel and the filter support
bracket.
Figure 21: Filter assembly
Item Description
A Filters
7. Taking the hood top panel that was removed
in Step 2, slide the flange under the lip at the
top of the hood assembly and lay the panel
on top of the left side and right side panels.
Secure the top panel to the side panels using
the remaining screws in the hardware bag as
shown in Figure 22. The completed assembly
will resemble Figure 23.
Figure 22: Attaching the hood top panel
Item Description
A Screws
B Hood top panel
Figure 23: Completed manual damper outdoor
air hood assembly
Item Description
A
Manual damper outdoor air hood
assembly
Exhaust air hood assembly
About this task:
After a unit with barometric relief or power exhaust
is installed in the field, you must asseble the exhaust
hood.
To install the exhaust hood, complete the following
steps.
