SECTION 3 - OPTIVIEW™ CONTROL CENTER FUNCTIONS AND NAVIGATION
OVERVIEW
This screen allows definition of the sales order parame-
ters. The Commissioning date is entered by the YORK/
Johnson Controls Service Technician at the time of
chiller commissioning. These values should never be
changed or entered by anyone other than a qualified
Service Technician. Entry instructions are included in
the YORK YMC
2
Service Manual (Form 160.84-M2).
The remainder of the values are entered at the YORK
Factory during the manufacturing of the chiller.
DISPLAY ONLY
Model Number
Factory defined model number of the chiller system.
YORK Order Number
Factory defined order number under which the chiller
was sold.
Chiller Serial Number
Factory defined serial number for the chiller system.
Compressor Model
Factory defined model number of the Compressor.
Critical entry for proper Chiller Operation. Technicians
see YORK YMC
2
Service Manual (Form 160.84-M2).
Evaporator Model
Factory defined model number of the Evaporator.
Condenser Model
Factory defined model number of the Condenser.
VSD Model
Factory defined model number of the VSD.
Condenser and Evaporator Design Load
Information
Factory defined description of the condenser and evap-
orator parameters according to the original rating.
Nameplate Information
Factory defined information about the chiller configu-
ration.

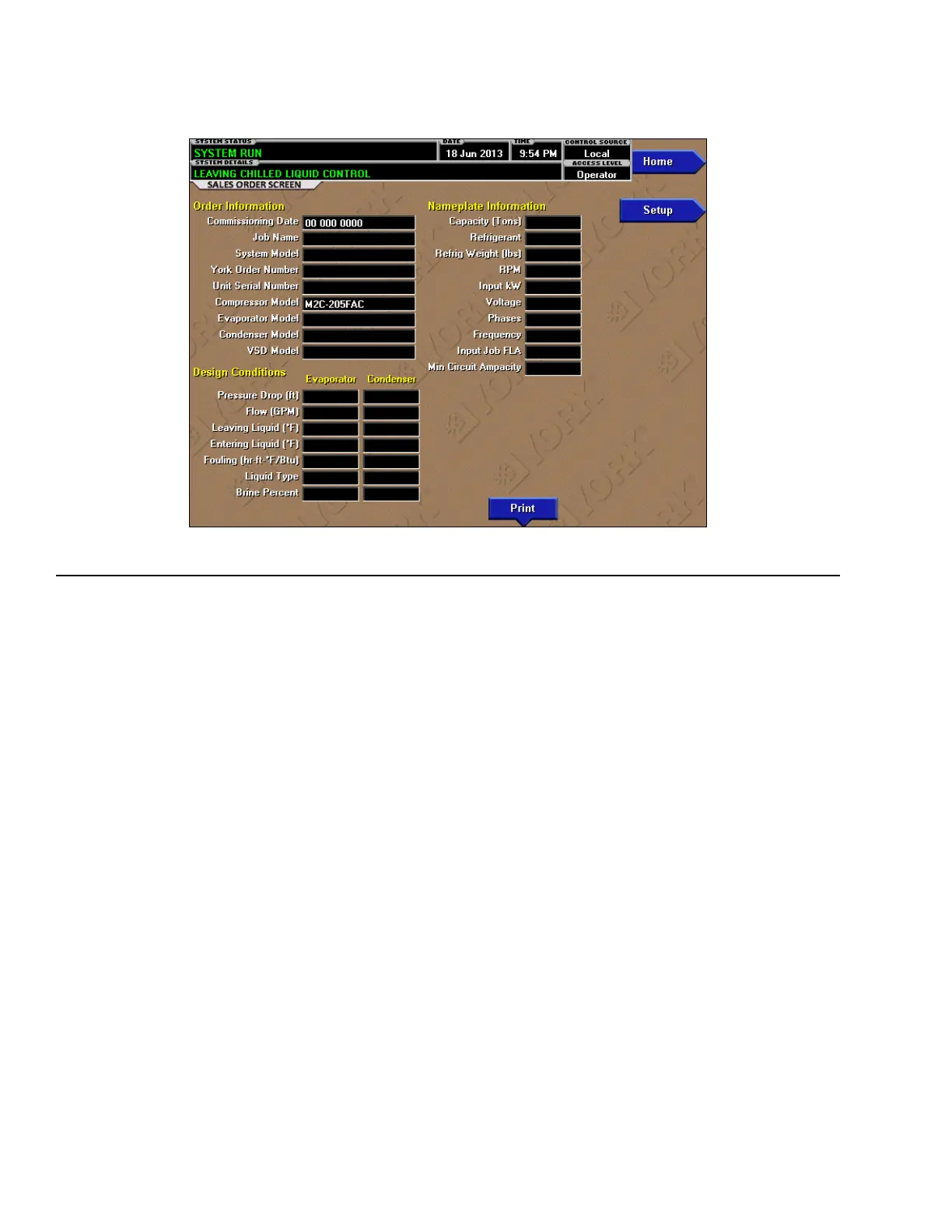

SALES ORDER SCREEN
LD17941a
FIGURE 26 - SALES ORDER SCREEN
