SECTION 3 - OPTIVIEW™ CONTROL CENTER FUNCTIONS AND NAVIGATION
OVERVIEW
The desired data collection start/stop triggers are setup
on this screen. The trend data collection can be set to
start or stop based upon the status of up to two selected
Triggers.
The Triggers can consist of digital events or analog pa-
rameters compared to thresholds. The Triggers can be
used individually or in combination. The digital and
analog parameters are selected from the Common Slots
Screen (or Master Slot Numbers List in this manual).
The parameter selected as the Primary Trigger is com-
pared to a value selected as the Primary Test, using the
Primary Operator as a comparator. If it is evaluated as
true, then the data collection is started or stopped (af-
ter any selected Trigger delay) per the selected Trigger
Action.
A Secondary Trigger can be evaluated with the Prima-
ry Trigger to start/stop data collection. The Primary to
Secondary Operator is used to define the Trigger com-
binations required to be true to start/stop data collec-
tion. The Secondary Trigger is setup and evaluated the
same as the Primary Trigger.
Entry fields are as follows:
If Primary Trigger
Is Primary Operator Primary Test
Primary to Secondary Operator
Secondary Trigger
Is Secondary Operator Secondary Test
Then Trigger Action the Data Collection
With a delay of Trigger Delay
After the desired Triggers are set, the START key on
the TREND Screen must be manually pressed be-
fore the triggers will be evaluated. While waiting for
the triggers to start or stop data collection, a status
message is displayed in the upper right corner of the
TREND Screen describing the pending action.
DISPLAY ONLY
This screen displays trending start/stop fields. There
are no display only fields on this screen.

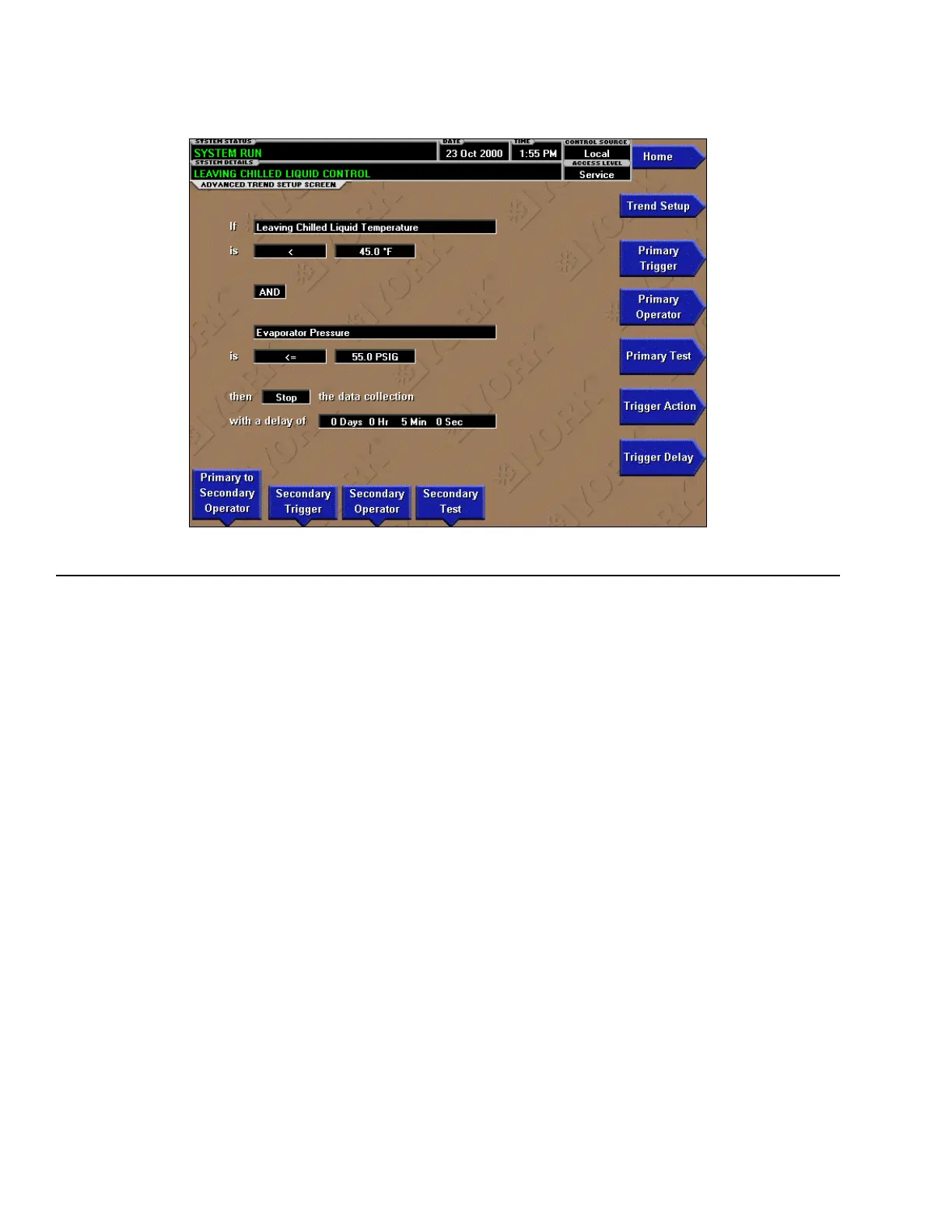

ADVANCED TREND SETUP SCREEN
00474VIP
FIGURE 34 - ADVANCED TREND SETUP SCREEN
