Page 15
3.6 ENCODER INSTALLATION
1) AC0 card is fit for different types of encoder. To control AC motor with Zapi inverter, it
is necessary to install an incremental encoder with 2 phases shifted of 90°. The en-
coder power supply can be +5 or +12V. It can have different electronic output.
A9 +5V/+12V positive of encoder power supply.
A10 GND negative of encoder power supply.
A19 A phase A of encoder.
A20 B phase B of encoder.

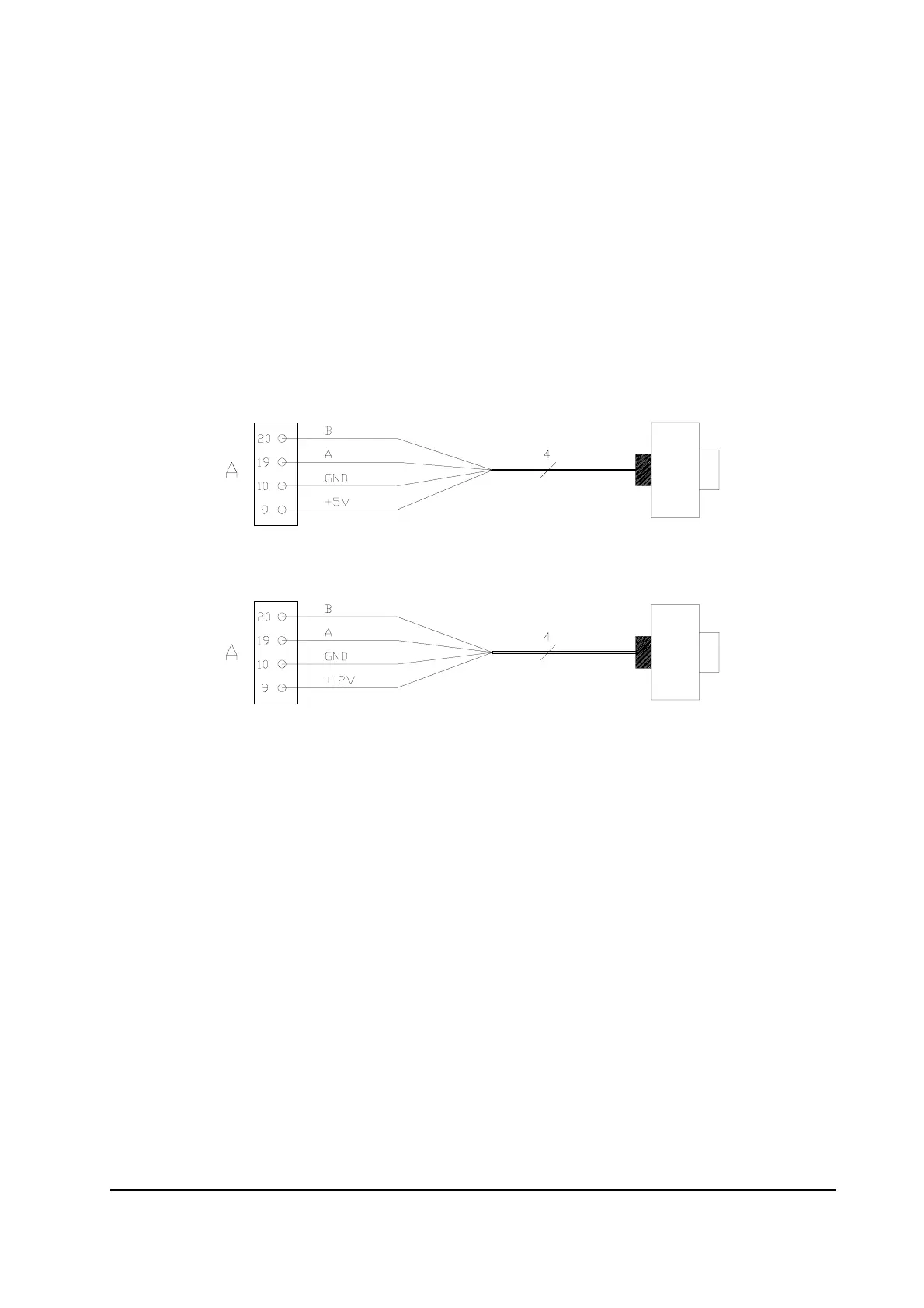

2) Connection of encoder with open collector output; +5V power supply.
3) Connection of encoder with open collector output: +12V power supply.
VERY IMPORTANT
It is necessary to specify in the order the type of encoder used, in terms of power
supply, electronic output and n° of pulses for revolution, because the logic unit
must be set in the correct way by Zapi.
