Zapi AC0 - Description of Power Connections

Page 16
3.7 DESCRIPTION OF POWER CONNECTIONS

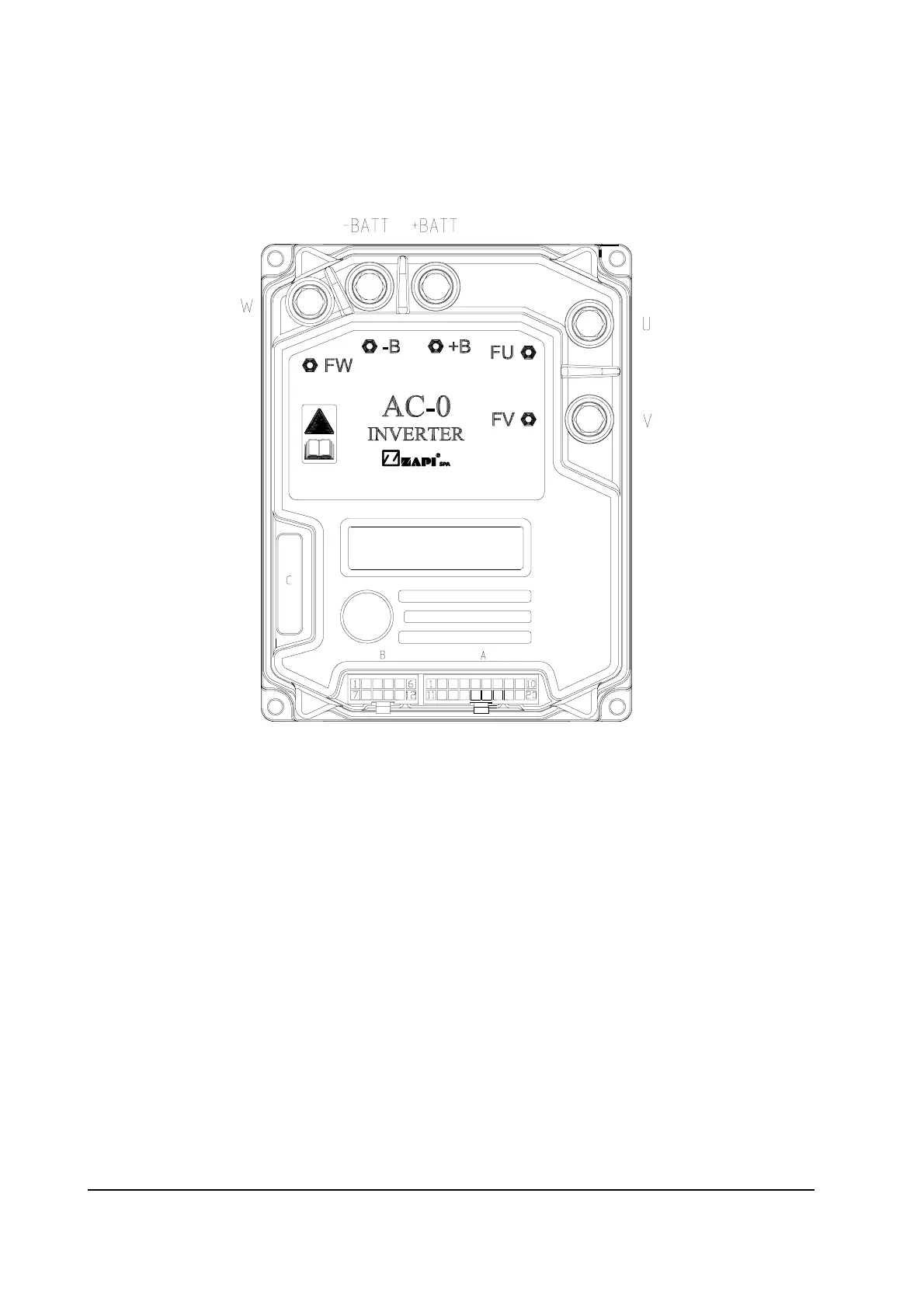

View of the power bars:
-BATT Negative of the battery.
+BATT Positive of the battery.
FU; FV; FW Connection bars of the three motor phases; follow this sequence and the
indication on the motor.
