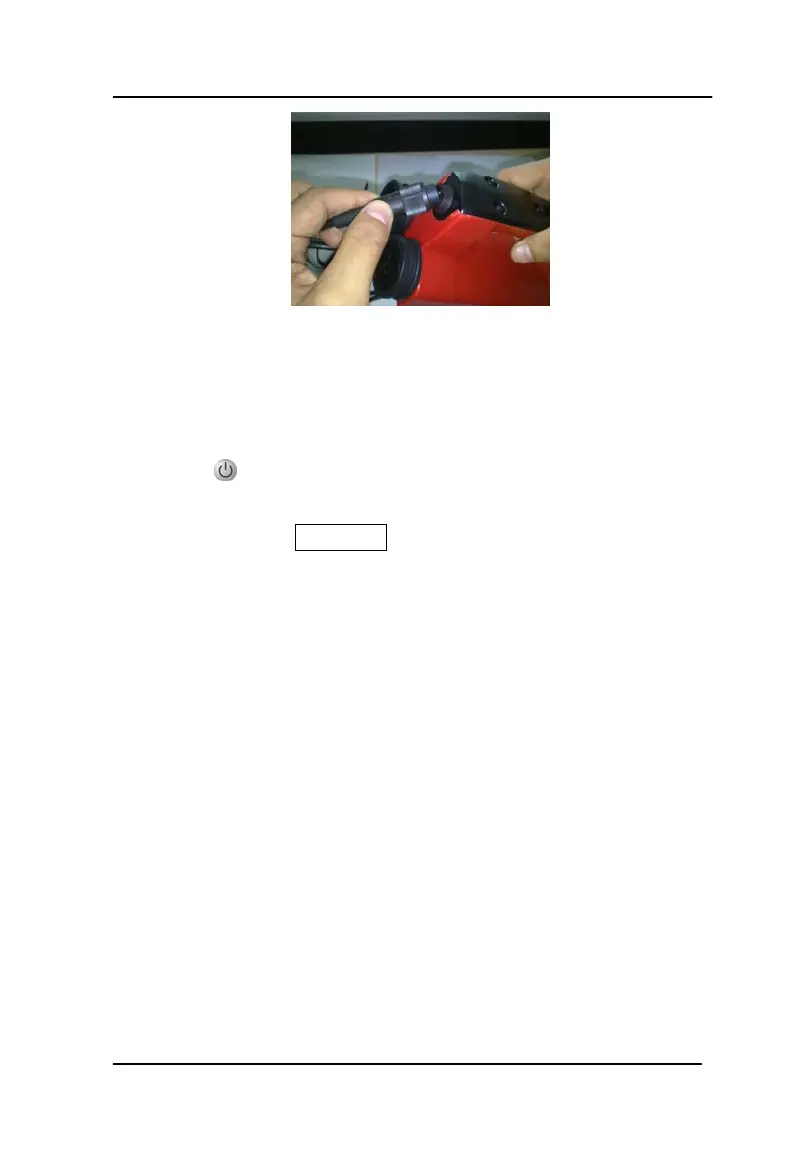

Figure 4-2 Connect rebar sensor
Note: Signal wire direction is no difference. (See figure4-2).
4.1.3 Starting test
Pressing 【 】 key, host starts to work. The screen displays the boot
interface, about 2 seconds, it will enter into main menu interface
automatically. Select Rebar Test and press 【Enter】to enter into test
interface. Please see chapter3.4 for specific operation.
4.1.4 Data transmission
After finishing the test, transmit the testing data into U-disk, then into
computer for analysis by software. Please see chapter 3.2 for specific
operation.
4.1.5 Data analysis and process
The “Data processing of multifunctional rebar detector” software
provides more advanced data processing function. Please see “Manual
of data process software of rebar test” for related parts.
