Printer Components
16
P1009874-001 Xi4 User Guide 3/12/09
Printer Components

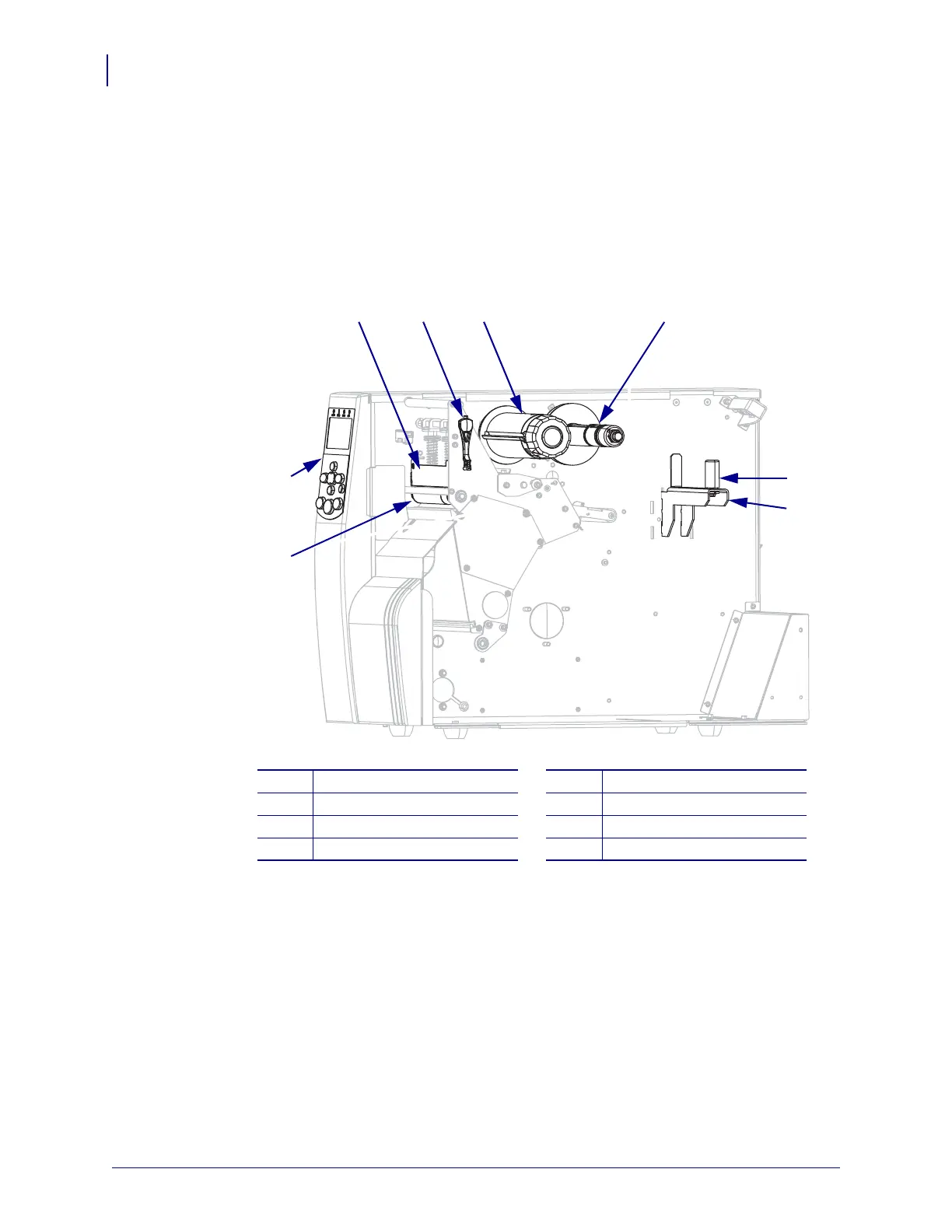

Figure 2 shows the standard components inside the media compartment of your printer.
Depending on printer model and the installed options, your printer may look slightly different.
Familiarize yourself with these components before continuing with the printer setup
procedure.
Figure 2 • Printer Components
1
Platen roller
5
Ribbon take-up spindle
2
Control panel
6
Ribbon supply spindle
3
Printhead assembly
7
Media supply guide
4
Printhead-open lever
8
Media supply hanger*
* The media hanger varies by model. The 110Xi4 media hanger is shown.
5 6
7
8
1
43
2

Zebra 110Xi4 Specifications

General

Maximum resolution	203 x 203 DPI
Core diameter	76 mm
Ribbon length	300 m
Media thickness	0.076 - 0.305 mm
Maximum media length	3810 mm
Maximum roll diameter	203 mm
Supported paper width	102 mm
Media thickness (imperial)	0.003 - 0.012 \
Maximum media length (imperial)	150 \
Supported paper width (imperial)	4 \
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Weight (imperial)	50 lbs
Dimensions (WxDxH)	261.9 x 517.5 x 393.7 mm
Flash memory	8 MB
Certification	-BSMI, -cTUVus, -CCC, -CE, -C-Tick, -EN55022 Class B, -EN55024, -EN61000-3-2, 3, -FCC Class B, -GOST-R, -ICES-003 Class B, -IEC 60950-1 / EN60950, -KCC, -NOM, -S Mark, -STB, -UkrSEPRO, -VCCI, -ZIK.
Internal memory	16 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Page description languages	XML, ZPL, ZPL II
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Power requirements	90 - 264 VAC, 48 - 62 Hz

Weight and Dimensions

Weight	22700 g
