Load Media in Peel-Off Mode
3/12/09 Xi4 User Guide P1009874-001

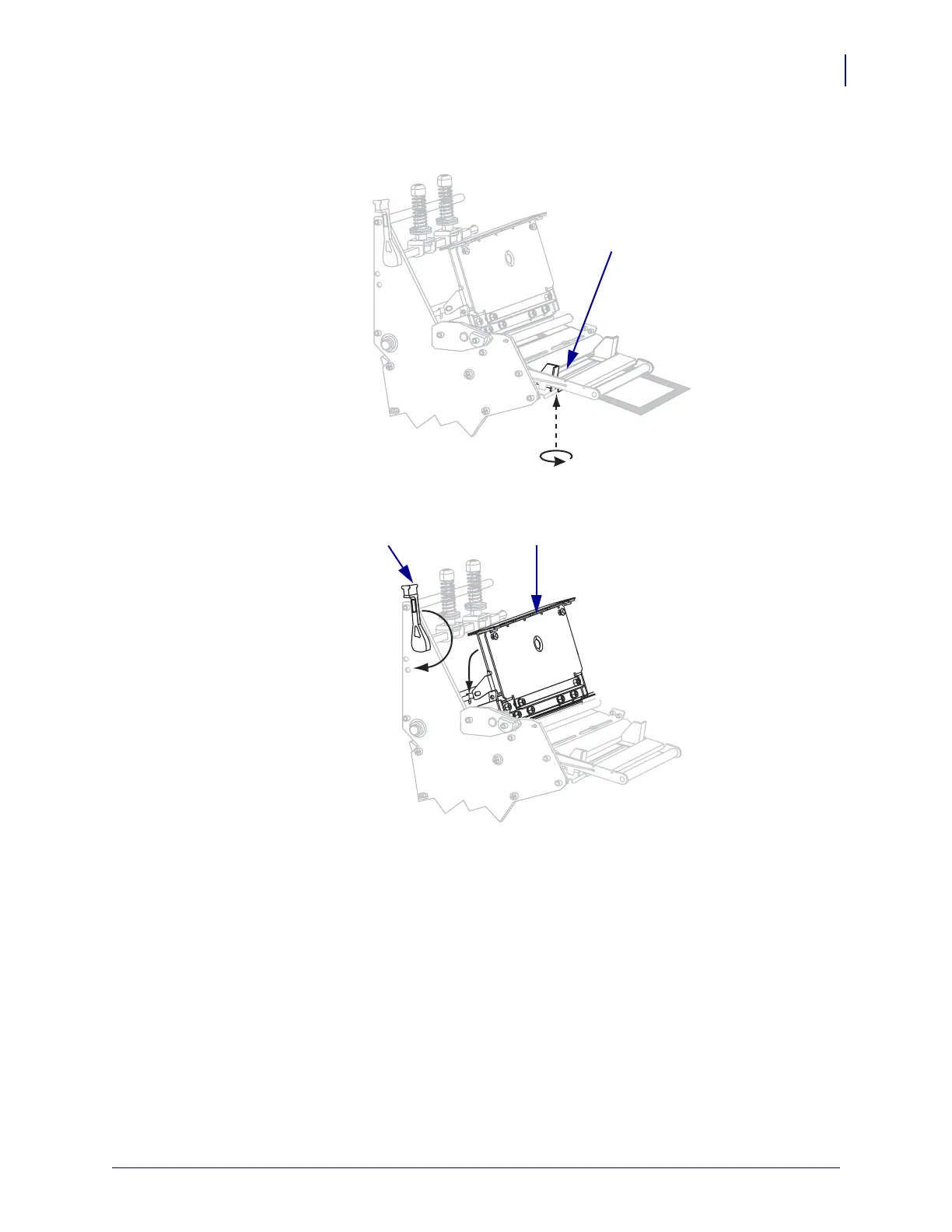

14. Tighten the thumb screw (not visible from this angle) that is located on the bottom of the
outer media guide (
1).
15. Push down the printhead assembly (1), and then rotate the printhead-open lever (2)
clockwise until it locks into place.
The backing winds on the rewind spindle or core.
16. For instructions for removing the backing from the rewind spindle, see Remove Media
Liner from the Rewind Spindle on page 66.
