Zebra 110Xi4 - Page 74

Operations
Load Ribbon
74
P1009874-001 Xi4 User Guide 3/12/09

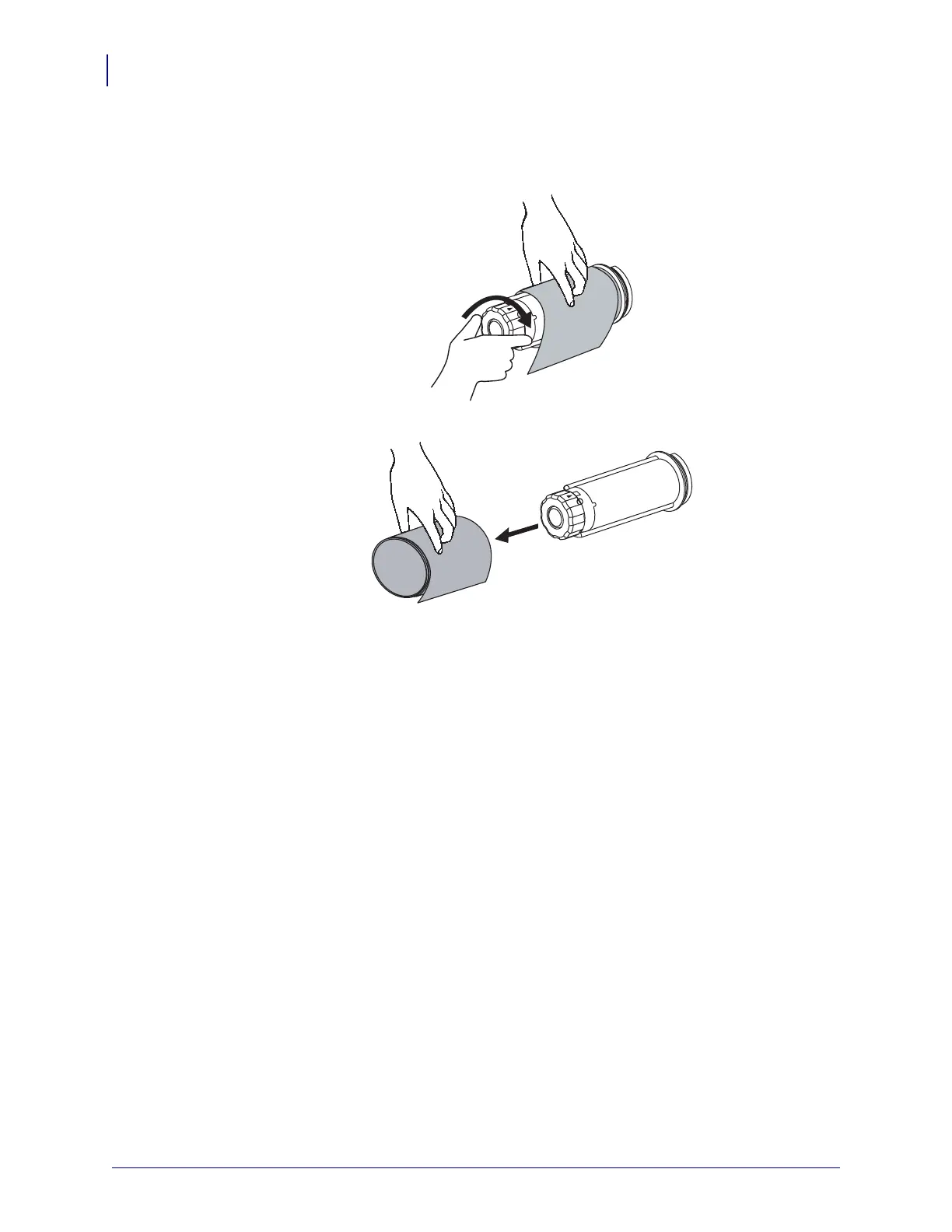

2. While holding the ribbon take-up spindle, turn the ribbon release knob clockwise until it
stops.
The ribbon release bars pivot down, easing the spindle’s grip on the used ribbon.
3. Slide the used ribbon off of the ribbon take-up spindle and discard.
