Remove the Existing Peel Assembly
14
79835L-001 B ZM400/ZM600 Installation Instruction 7/30/07
Remove the Existing Peel Assembly
1. See Figure 13. Remove the two existing mounting screws.

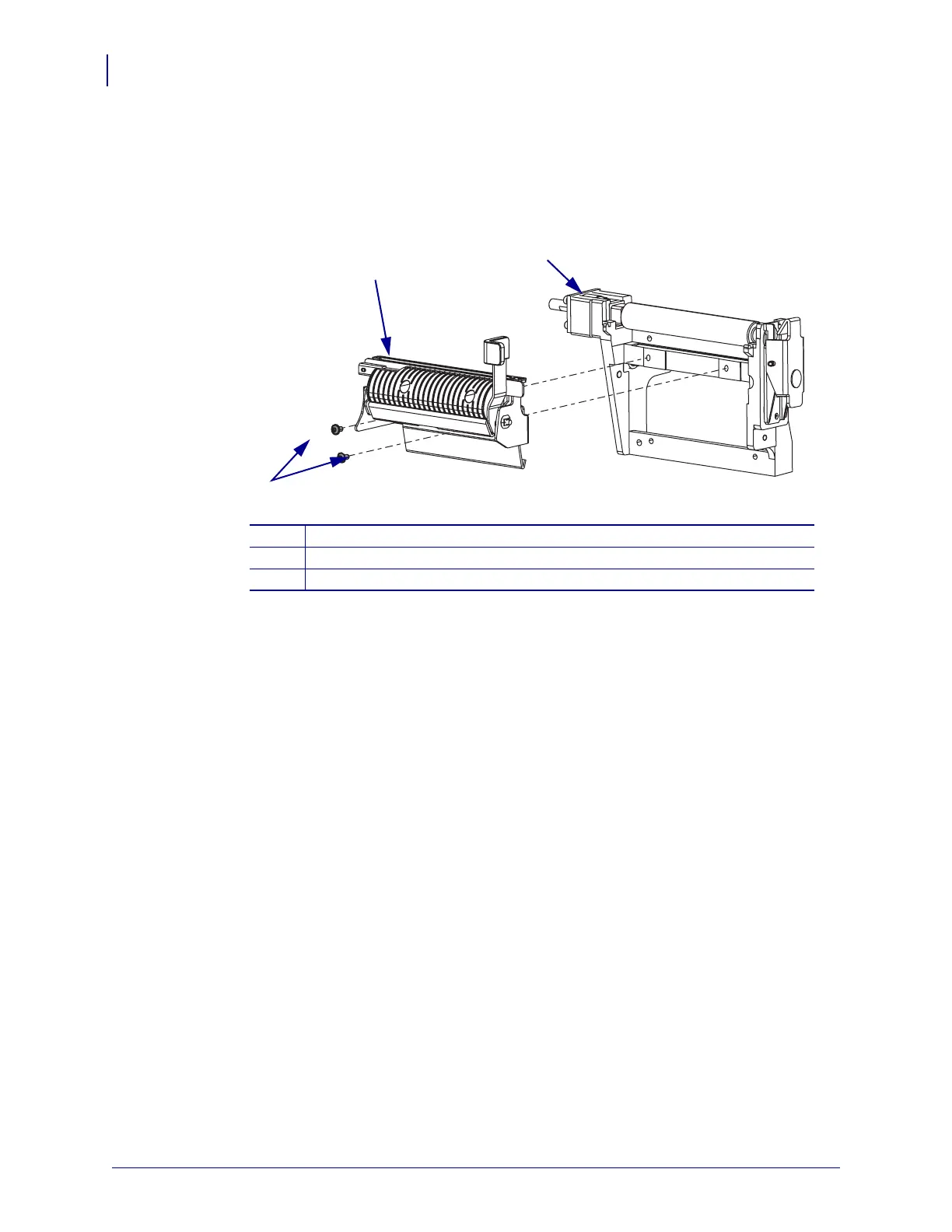

Figure 13 • Remove the Peel Assembly
2. Remove the peel assembly.
1
Peel assembly
2
Platen housing
3
Peel assembly mounting screws
1
2
3
