Peel/Rewind Upgrade
Reinstall the Electronics Cover
12
79835L-001 B ZM400/ZM600 Installation Instruction 7/30/07
Reinstall the Electronics Cover
1. See Figure 11. Install the electronics cover by aligning it and sliding down, ensuring the
lower flanges are inside the base and the upper flanges are between the main frame and the
media door.

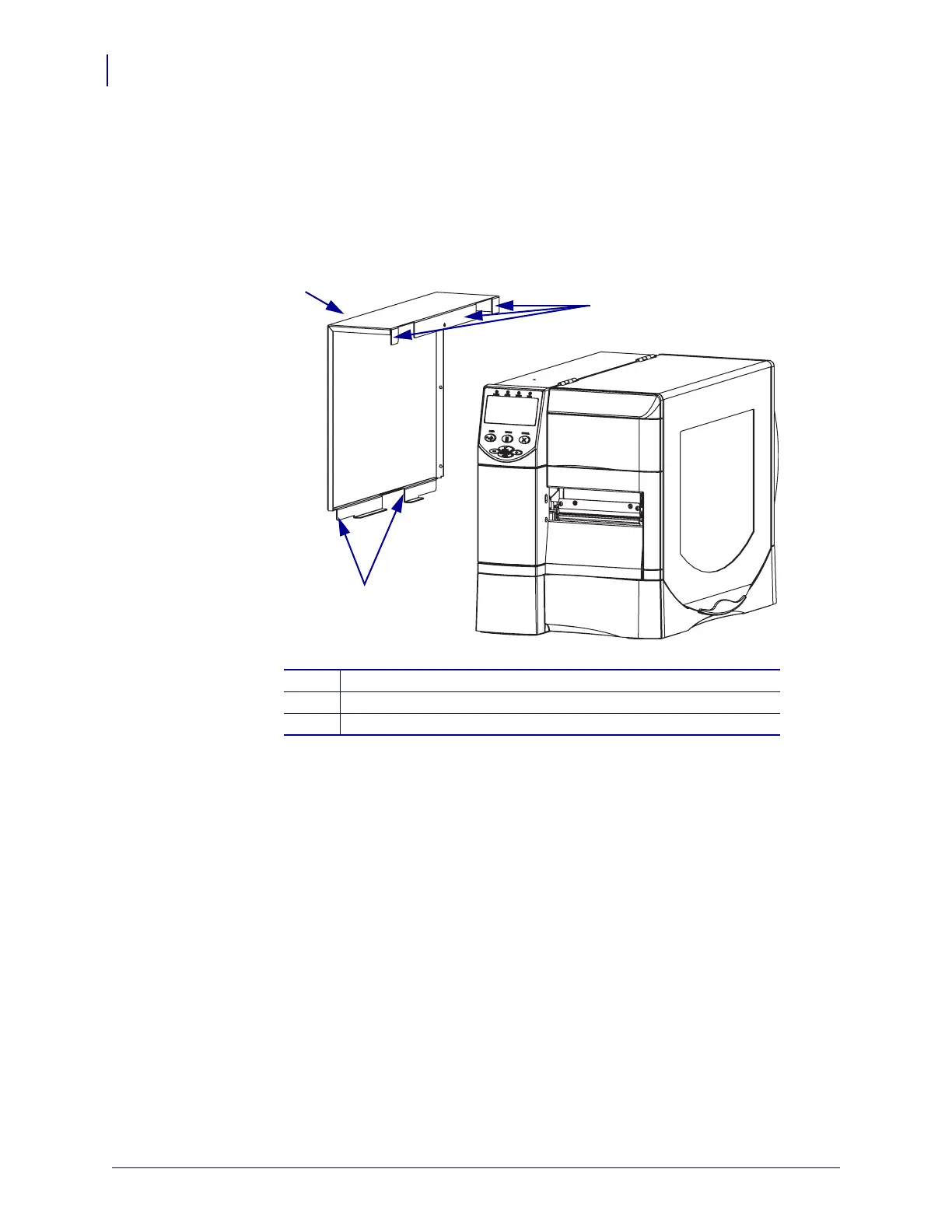

Figure 11 • Locate the Upper and Lower Flanges
2. See Figure 3 on page 4. Install the four mounting screws.
3. See Figure 2 on page 3. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3
