Peel/Rewind Upgrade
Align the Rewind/Peel Media
7/30/07 ZM400/ZM600 Installation Instruction 79835L-001 B
Align the Rewind/Peel Media
Perform the following adjustment if the media does not track properly onto the take-up
spindle.
See Figure 18.

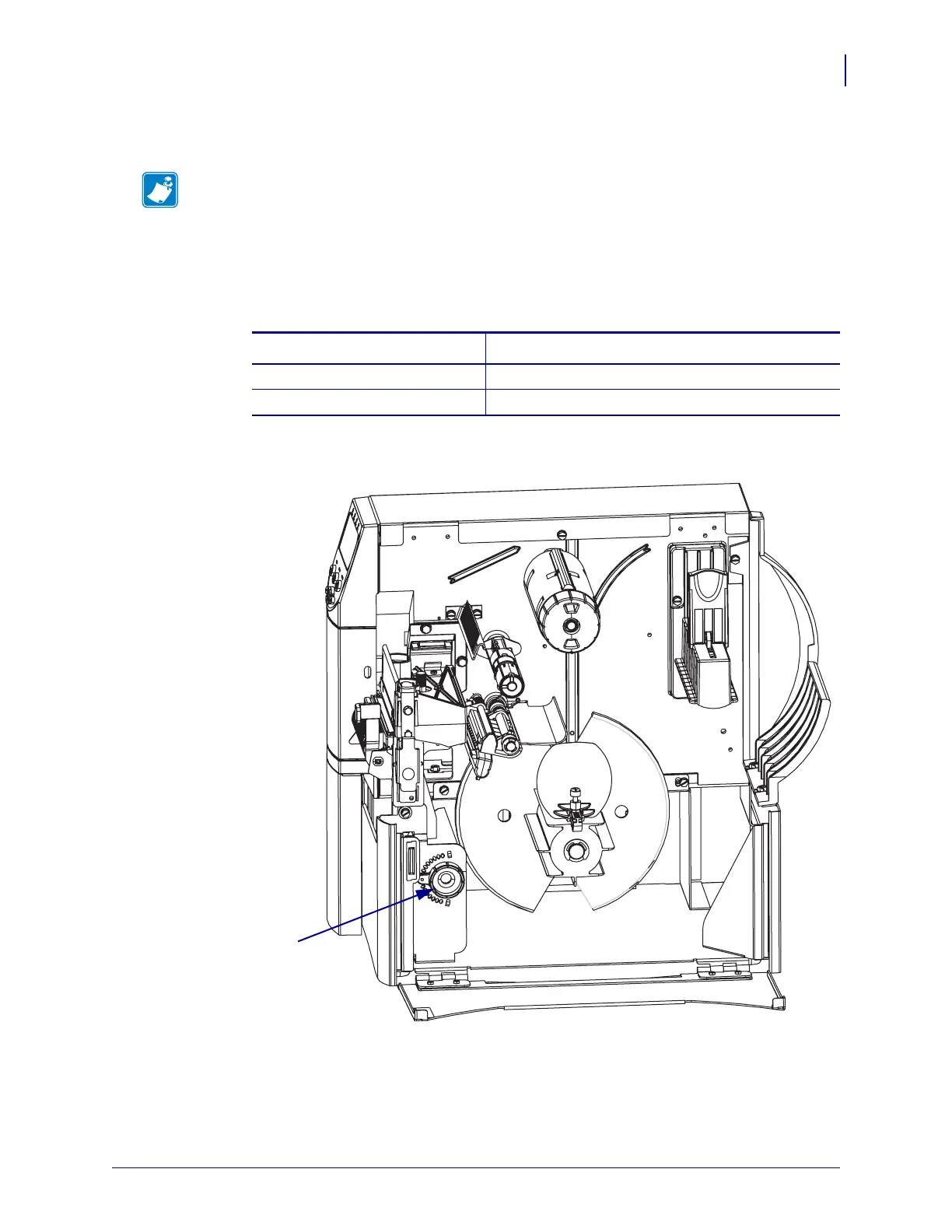

Figure 18 • Align the Rewind Media
Note • The media/liner should be installed flush against the back plate of the take-up spindle
to prevent the media/backing from winding too loosely.
If want to move the media… Then…
Toward the main frame Turn the dial clockwise
Away from the main frame Turn the dial counterclockwise
Dial
