15
Peel/Rewind Upgrade
Install the New Peel Assembly
7/30/07 ZM400/ZM600 Installation Instruction 79835L-001 B
Install the New Peel Assembly
1. Install the two mounting screws previously removed into the tear bar mounting screw
holes.
Tighten them to within 3.2 mm (1/8 in. ) of the platen housing.
2. See Figure 14. Take note of the pems and the mounting slots.

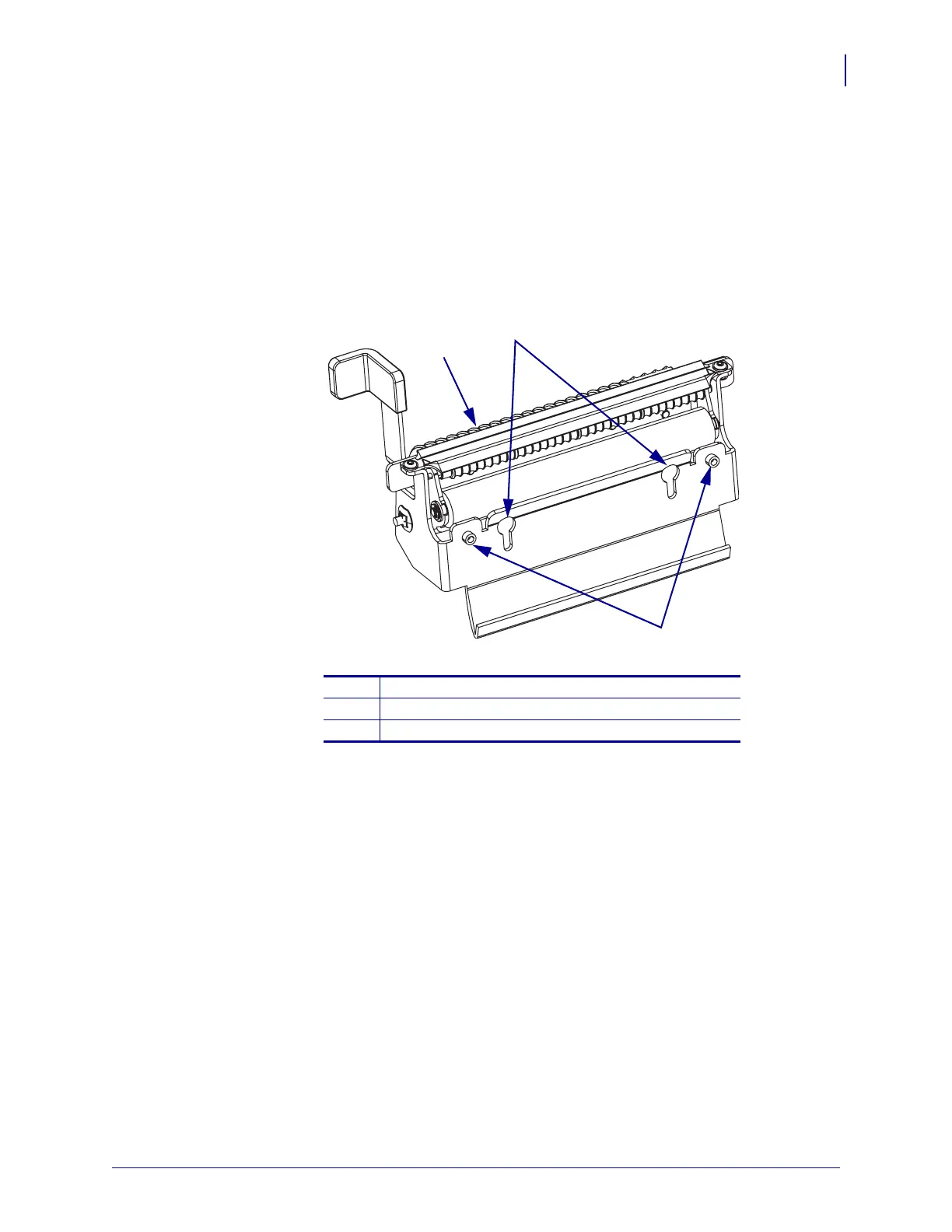

Figure 14 • Locate the Pems
1
Peel assembly
2
Mounting slots (2)
3
Pems (2)
2
3
1
To Next Page
